ServiceandRepairs
ElectricalSystemAssembly

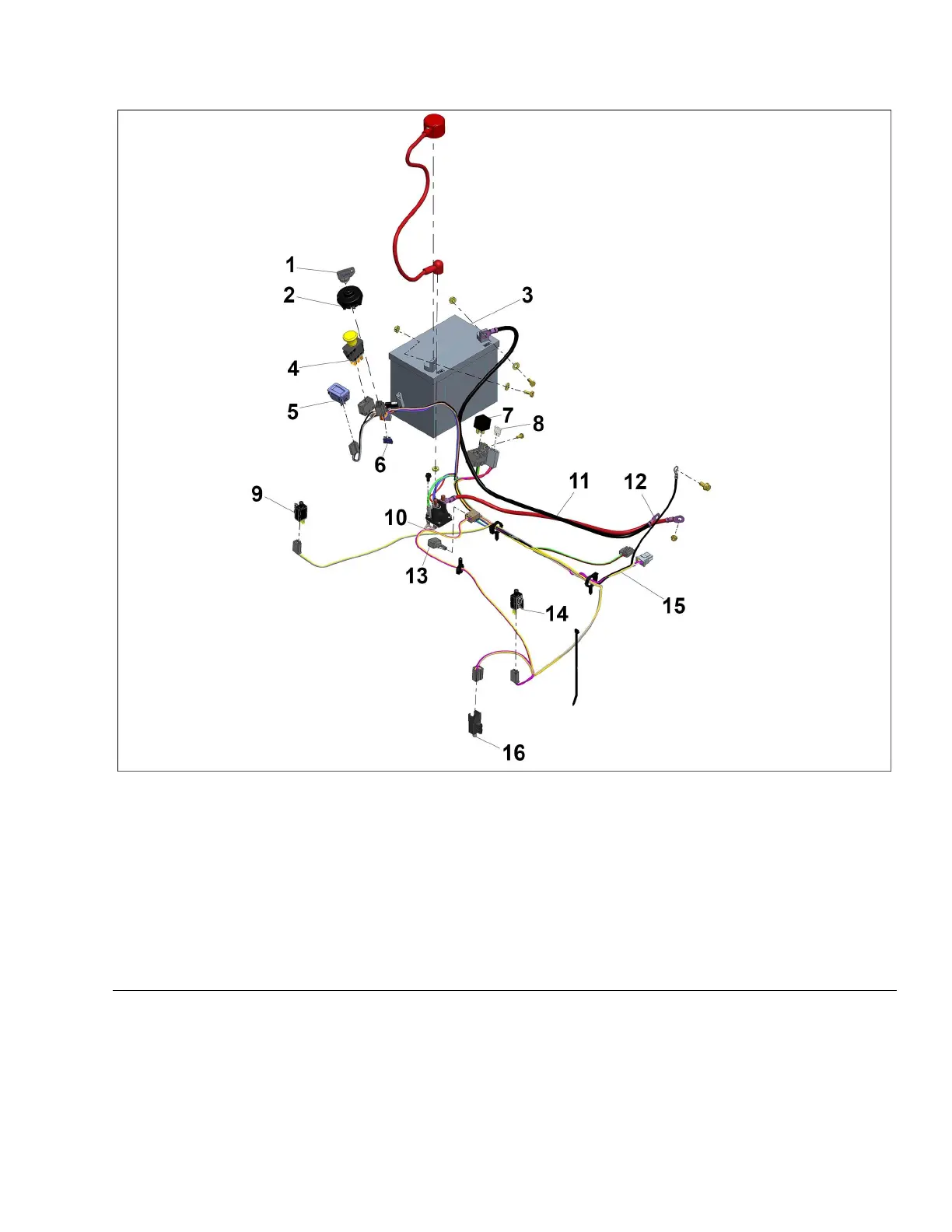

g322300
Figure84
1.IgnitionKey
9.NeutralSwitch
2.IgnitionSwitch10.Solenoid
3.Battery
11.NegativeCable
4.PTOSwitch12.EngineGround
5.Hourmeter
13.ClutchDiode
6.15AFuse
14.NeutralSwitch
7.MagnetoStopRelay
15.WireHarness
8.25AFuse
16.ParkBrakeSwitch
TitanServiceManual
Page8–3
Electrical:ServiceandRepairs
3438-774RevA
