MowerBeltReplacement
MowerBeltRemoval
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Lowerthemowerdecktothe76mm(3inches)height-of-cutposition.
4.Removetheboltsfromthecoversandliftcoversoffthedeck.

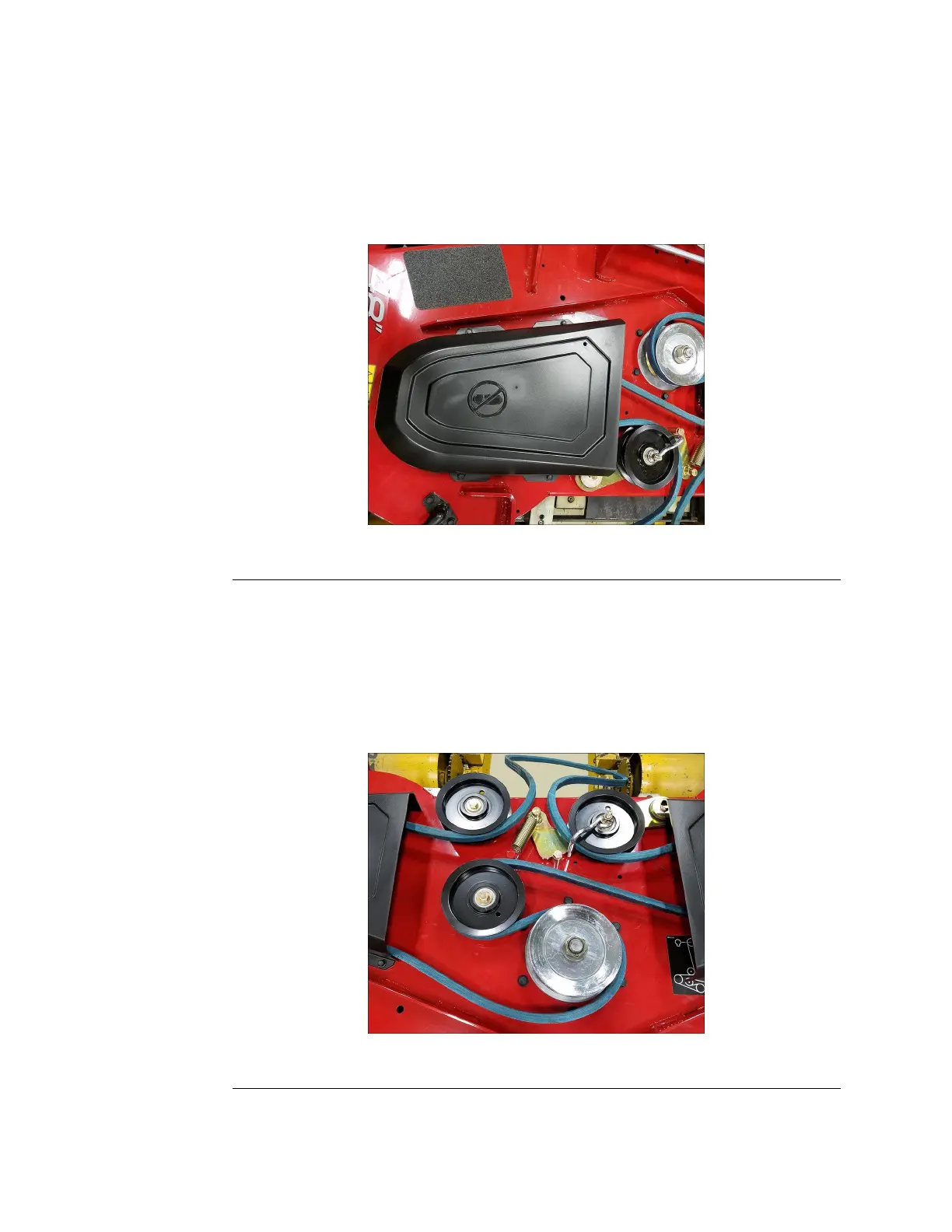

g322061
Figure76
5.Usingaspringremovaltoolremovethespringtensionfromtheidlerpulley.
6.Lowerthedecktothelowestheightofcutpositionandsecurethepinto
lockinposition.
7.Removethebeltfromthedeckpulleysandtheclutchpulley.
MowerBeltInstallation
1.Routethenewbeltaroundtheclutchpulleyanddeckpulleys.
g322062
Figure77
2.Installtheidlerspringusingthespringremovaltool.
3.Ensurethatthebeltisproperlyseatedinallpulleys.
MowerDeck:ServiceandRepairs
Page7–6
TitanServiceManual
3438-774RevA
