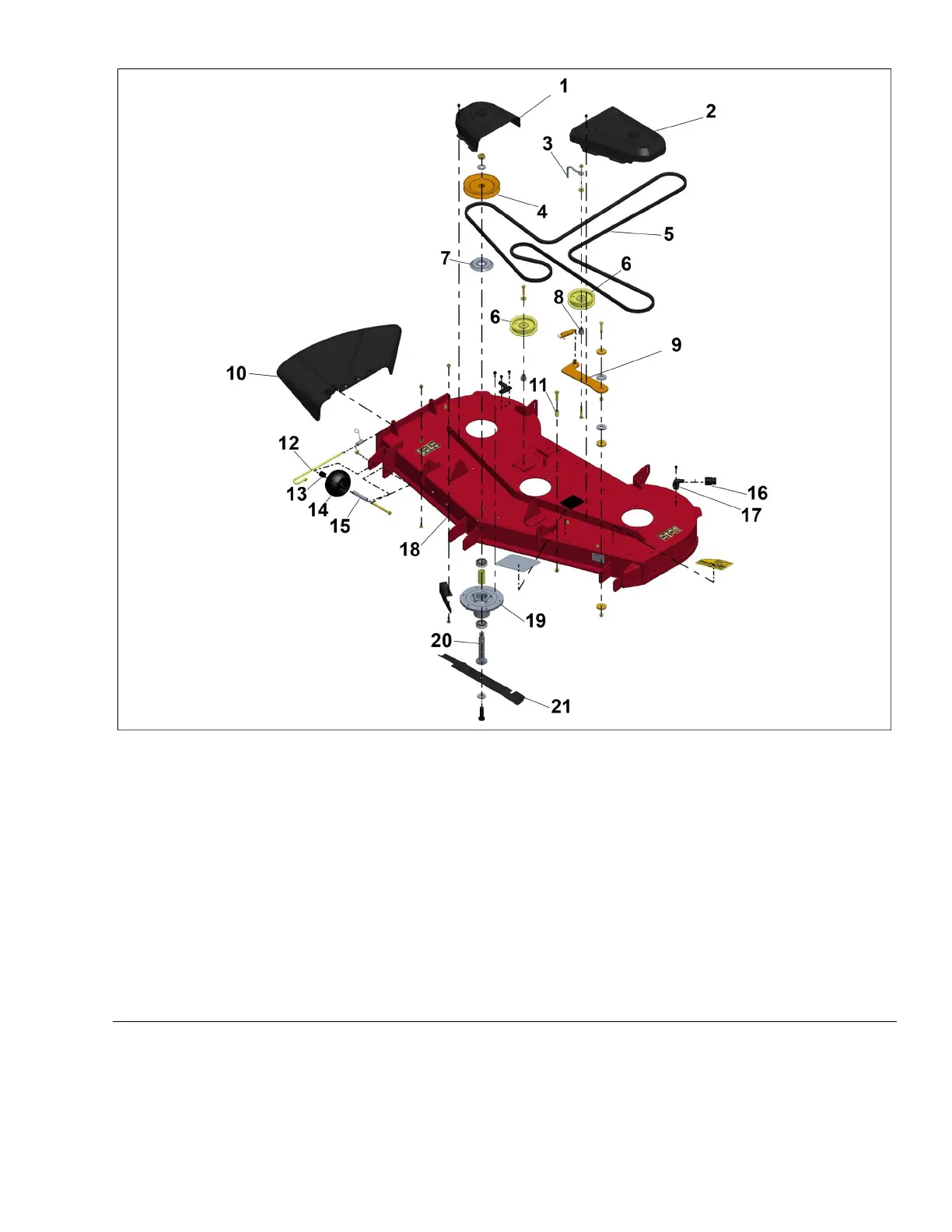

MowerDeckAssembly3
g322346
Figure75
1.RightBeltCover12.ChutePin
2.LeftBeltCover13.RearAxleSpacer
3.IdlerBeltGuide14.Anti-ScalpRoller
4.Pulley
15.SpannerTube
5.V-Belt16.WashoutFitting
6.FlatIdlerPulley
17.ConnectorHose
7.BearingShield
18.DeckAsm
8.IdlerBushing
19.SpindleAsm
9.IdlerArmAsm
20.SpindleShaft
10.DischargeDeector
21.MulchBlade
11.SpacerFender
TitanServiceManual
Page7–5
MowerDeck:ServiceandRepairs
