Toro 75746 - Motion Control Assembly Replacement

MotionControlAssemblyReplacement

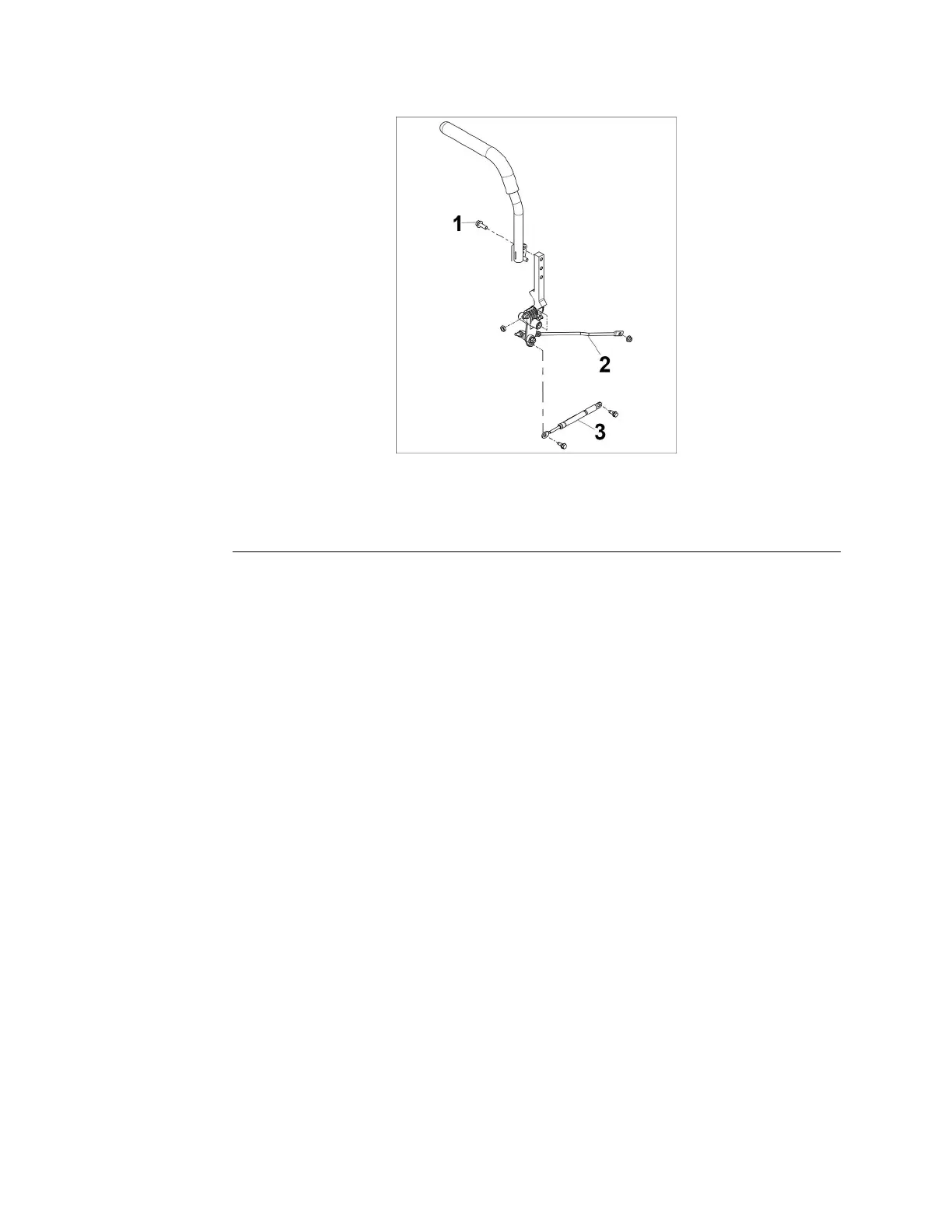

MotionControlAssemblyRemoval
g321537
Figure52
1.Bolt
3.MotionControlDamper
2.MotionControlLinkage
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe
engine,waitforallmovingpartstostop,andremovekey.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Raiseandsupporttheunitsothatthedrivewheelsareofftheground.
Note:Theconsolemustberemovedforaccess.
4.Removethe2boltssecuringthemotioncontrolhandletothemotioncontrol
assembly.
5.Disconnectthemotioncontroldamperfromthemotioncontrolassembly.
6.Disconnectthemotioncontrollinkagefromthemotioncontrolassembly.
7.Disconnectthemotioncontrolassemblyfromtheframe.
