MotionControlAssemblyRemoval(continued)

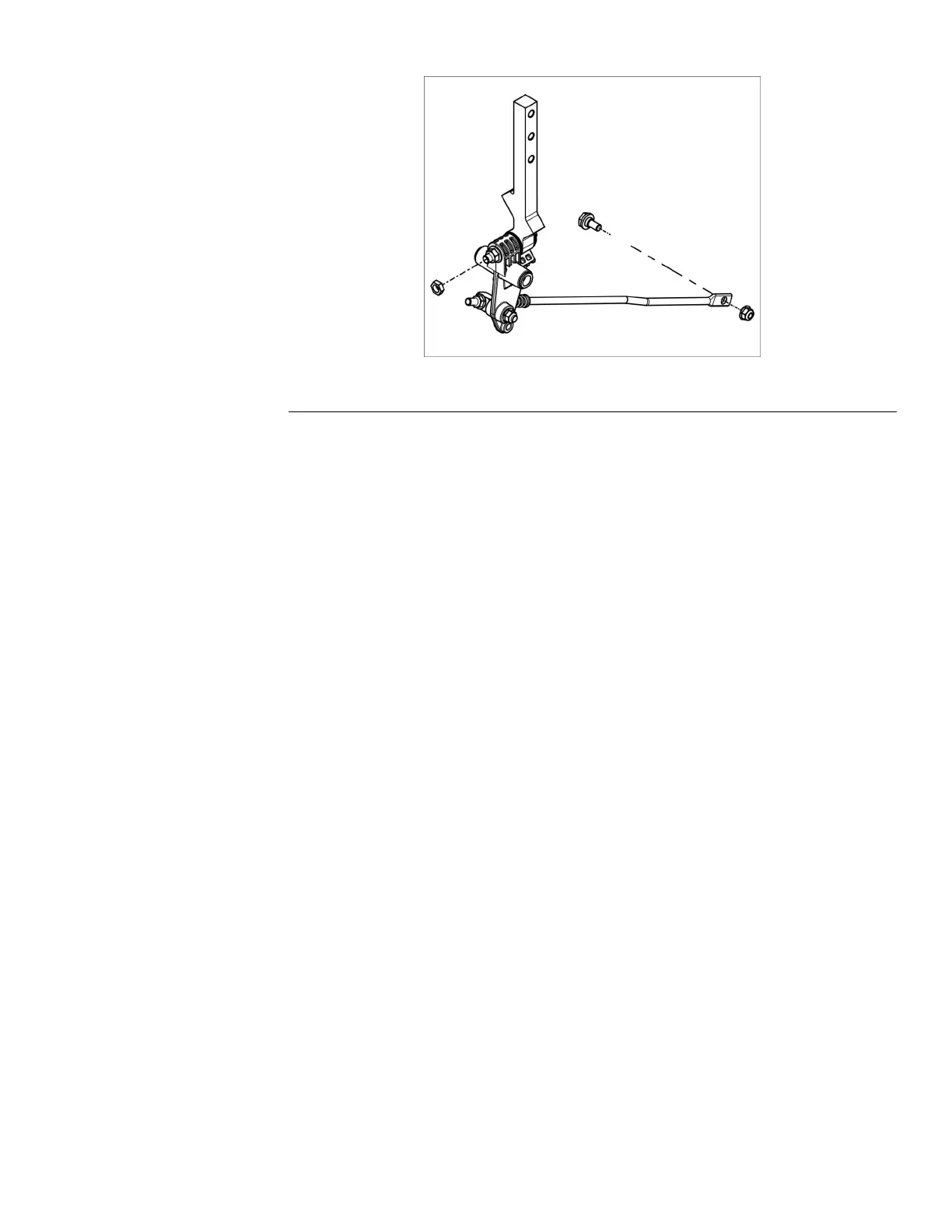

g321539
Figure53
MotionControlAssemblyInstallation
1.Positionthemotioncontrolassemblyinplacewiththelinkageextending
towardthetransmission.
2.Securethemotioncontrolassemblytotheframe.
3.Connectthemotioncontrollinkagetothemotioncontrolassembly.
4.Connectthemotioncontroldampertothemotioncontrolassembly.
5.Connectthemotioncontrolhandletothemotioncontrolassemblyusing
thetwobolts.
6.Adjusttheneutralsetting.NeutralAdjustment(page6–4)
7.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
8.Lowertheunitandverifyproperfunction.
9.Adjustthetrackingifnecessary.TrackingAdjustment(page6–5)
AdjusttheMotionControlHandle
Note:Ensureproperadjustmentofneutralandtrackingsettingsbeforeadjusting
themotioncontrolhandles.
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe
engine,waitforallmovingpartstostop,andremovekey.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Movetheleversintotheoperatingposition.
4.Loosenthe2boltsthatsecurethemotioncontrolhandlestothemotion
controlassembly.
5.Aligntheleversfronttobackandsecurethebolts.
