AdjusttheMotionControlHandle(continued)

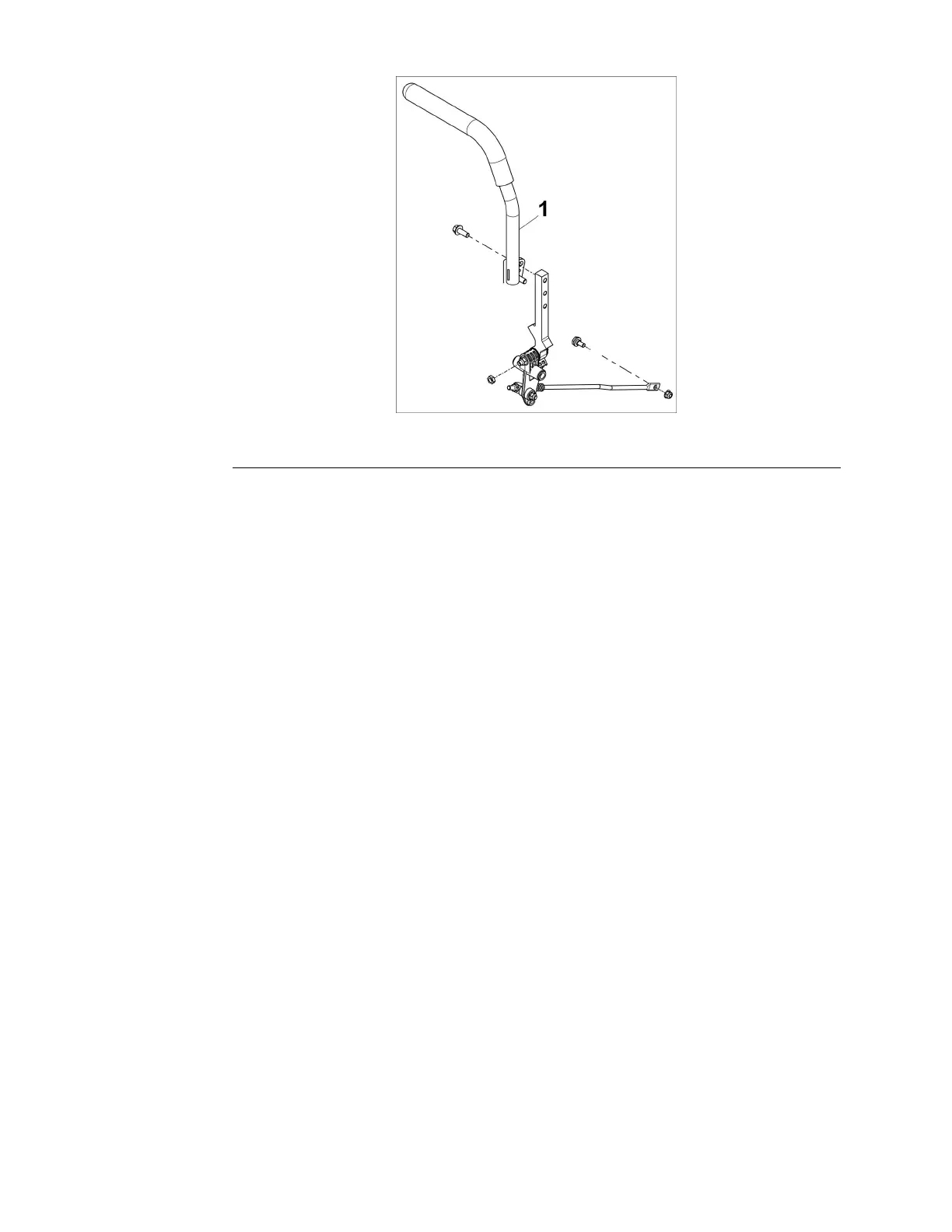

g321538
Figure54
6.Movetheleversintotheparkposition.
7.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
8.Verifyproperfunctionoftheunit.
Note:Motioncontrolleversmaybeadjustedupordownaswellforoperator
comfortbyutilizingtheadditionalmountingholesonthemotioncontrol
assembly.Themotioncontrolleversshouldalwaysbemountedontheinside
ofthemotioncontrolassembly.
Chassis:ServiceandRepairs
Page5–28
TitanServiceManual
3438-774RevA
