MowerSpindleAssembly(continued)
9.Installthewasherandnut.T orquethetopnutto138-152N•m(100-110ft-lb).
ElectricPTOClutchReplacement
ElectricPTOClutchRemoval

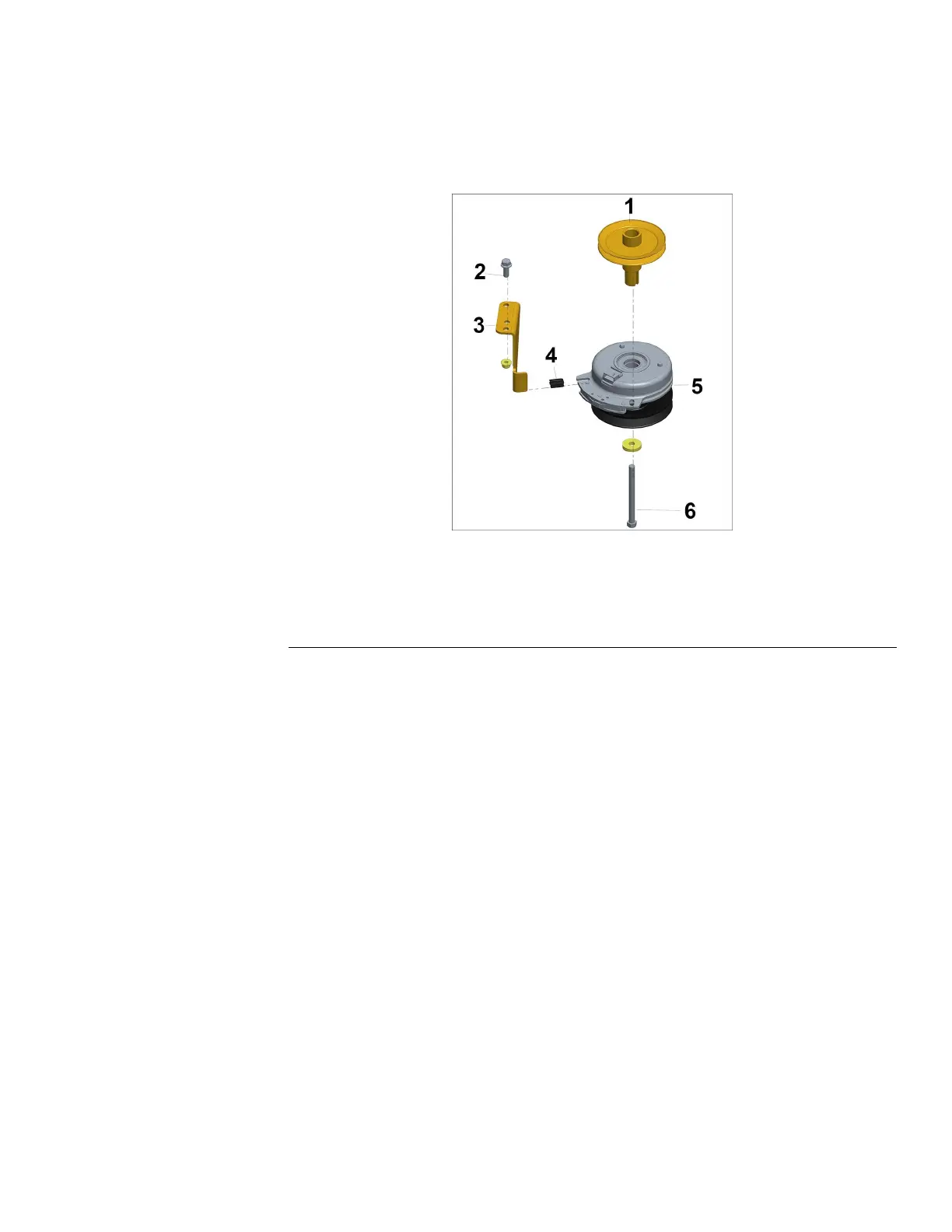

g322063
Figure81
1.EnginePulleytoShaft(ApplyAnti-Seize)4.ClutchIsolator
2.Bolt
5.PTOClutch
3.ClutchStopMount6.ClutchMountingBolt(ApplyLoctite)
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe
engine,waitforallmovingpartstostop,andremovekey.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Raiseandsupporttheunitsothatthedrivewheelsareofftheground.
4.Removethemowerbelt.
5.Disconnecttheclutchwireconnectorfromtheclutch.
6.Removetheclutchmountingboltandwashers.Sliptheclutchoffofthe
crankshaft.
TitanServiceManual
Page7–11
