Toro 75746 - Park Brake Handle Assembly Replacement

ParkBrakeHandleAssemblyReplacement
ParkBrakeHandleAssemblyRemoval
g321540

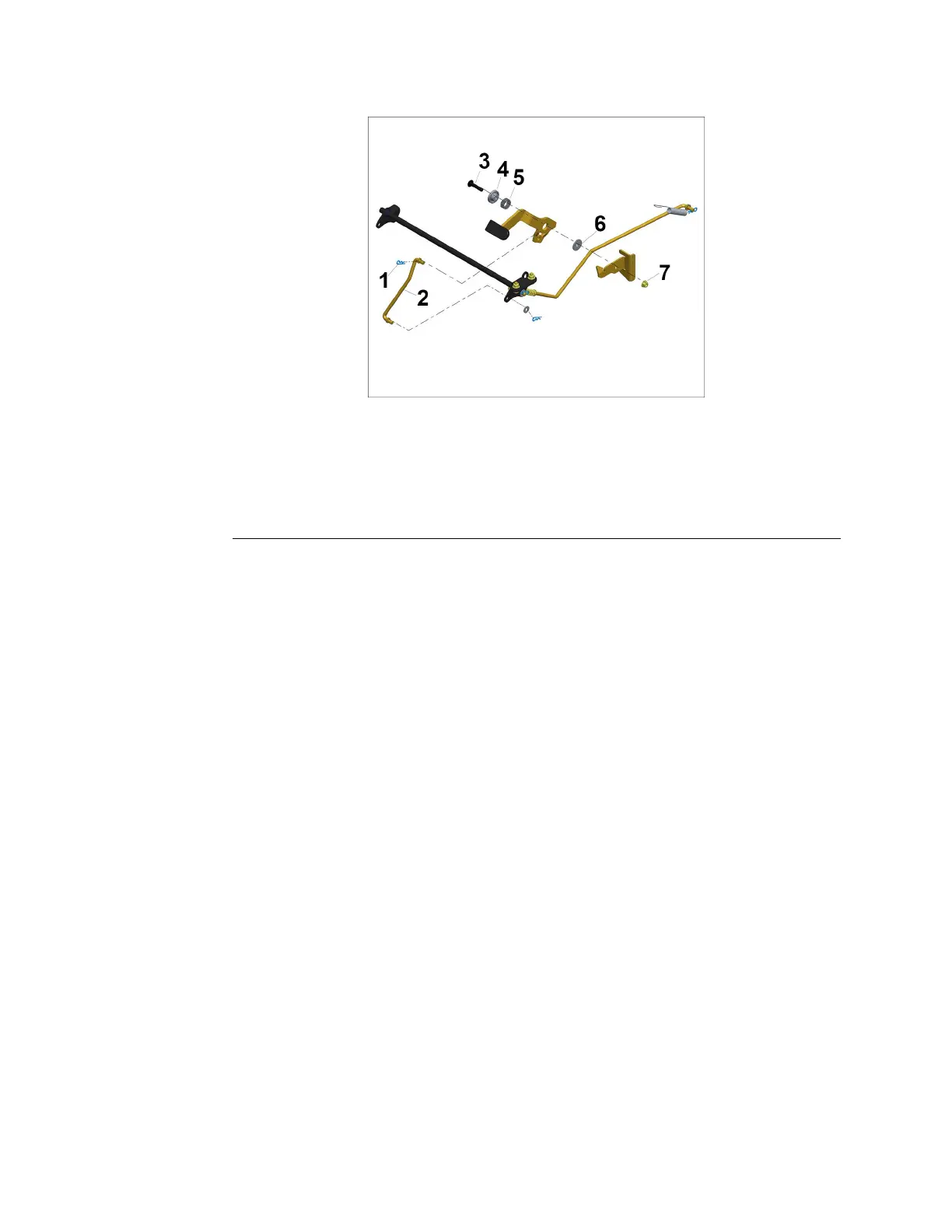

Figure49
1.CotterPin5.WaveSpring
2.IntermediateBrakeRod6.BrakeFlangedBushing
3.T orxScrew
7.FlangeNut
4.FlangeBushing
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe
engine,waitforallmovingpartstostop,andremovekey.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removetheleftsideconsole.
4.Re-installthefuelcap.
5.Removethelockingcotterpinsecuringtheintermediatebrakerodtothe
parkbrakelever.
6.Removetheboltandangenutfromtheparkbrakeleverassembly.Retain
thebushingandwavespring.
ParkBrakeHandleAssemblyInstallation
1.Assemblethebushingsandwavespringovertheboltandthroughthepark
brake.
Note:Assemblethebushingsandwavespringovertheboltandthrough
theparkbrake
