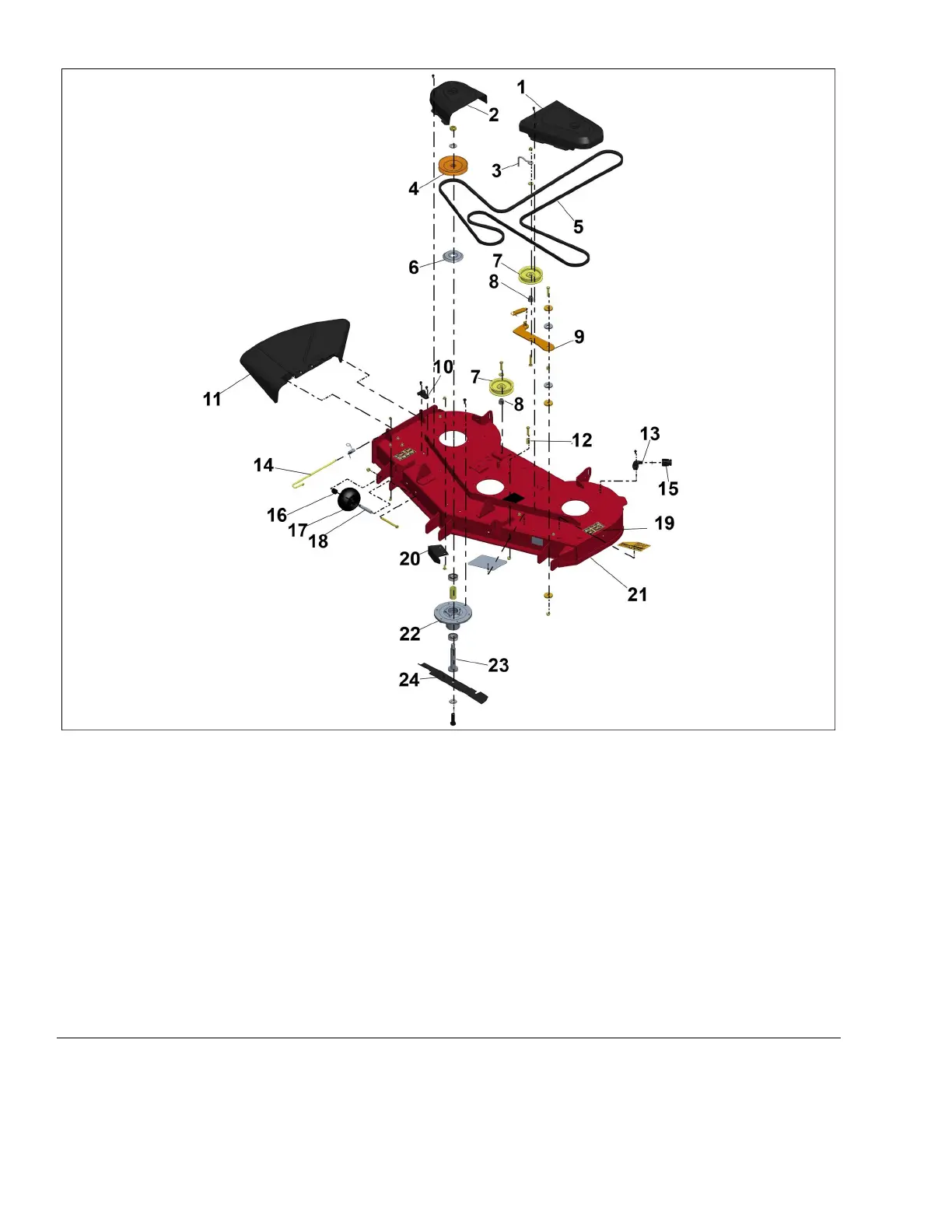

MowerDeckAssembly2
g322345
Figure74
1.LeftBeltCover13.WashoutSpacer
2.RightBeltCover14.ChutePin
3.IdlerBeltGuide15.ConnectorHose
4.Pulley
16.RearAxleSpacer
5.V-Belt
17.Anti-ScalpRoller
6.BearingShield18.SpannerTube
7.FlatIdlerPulley19.DeckAsm
8.IdlerBushing
20.Cut-offBafe
9.IdlerArmAsm21.DeckAsm
10.WashoutFitting
22.SpindleAsm
11.DischargeDeector23.SpindleShaft
12.SpacerFender
24.MulchBlade
MowerDeck:ServiceandRepairs
