SeatandMyRIDE™Platform(MRModelsOnly)Removal
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removetherightandleftsideconsoles.LeftConsoleReplacement(page
5–6)RightConsoleReplacement(page5–8)
4.Disconnectthewireharnessconnectorattheoperatorpresenceswitch.
5.Removetherelayandboltattachingrelayandfusetoholderonframe.
6.Disconnectthefuelsupplylineatthefuellter.

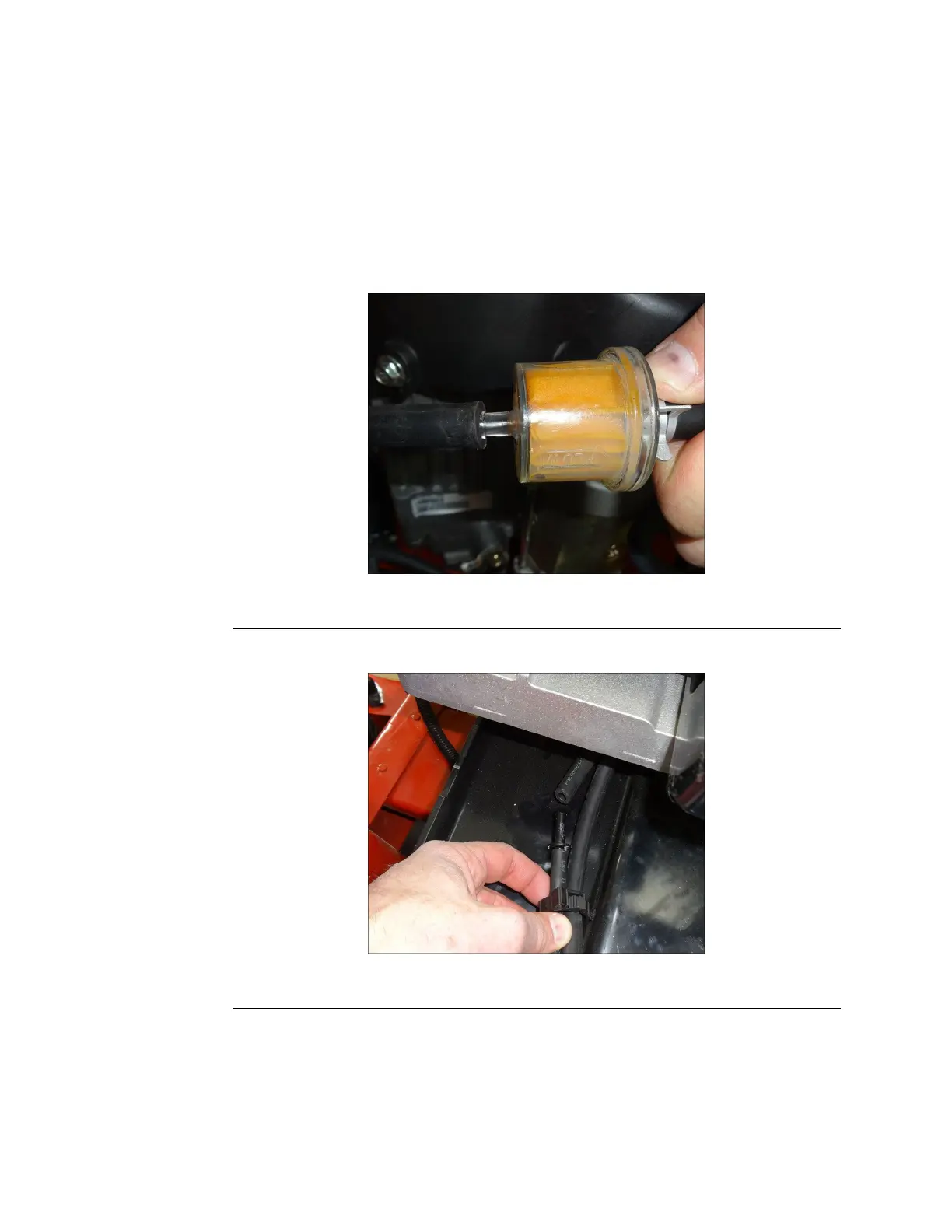

g321211
Figure30
7.Disconnecttheventlineatthesplicetting.
g321202
Figure31
8.Removetheboltandnutsecuringthefrontshock/springassemblytothe
MyRIDE®platform.
