SeatandMyRIDE™Platform(MRModelsOnly)Installation(continued)

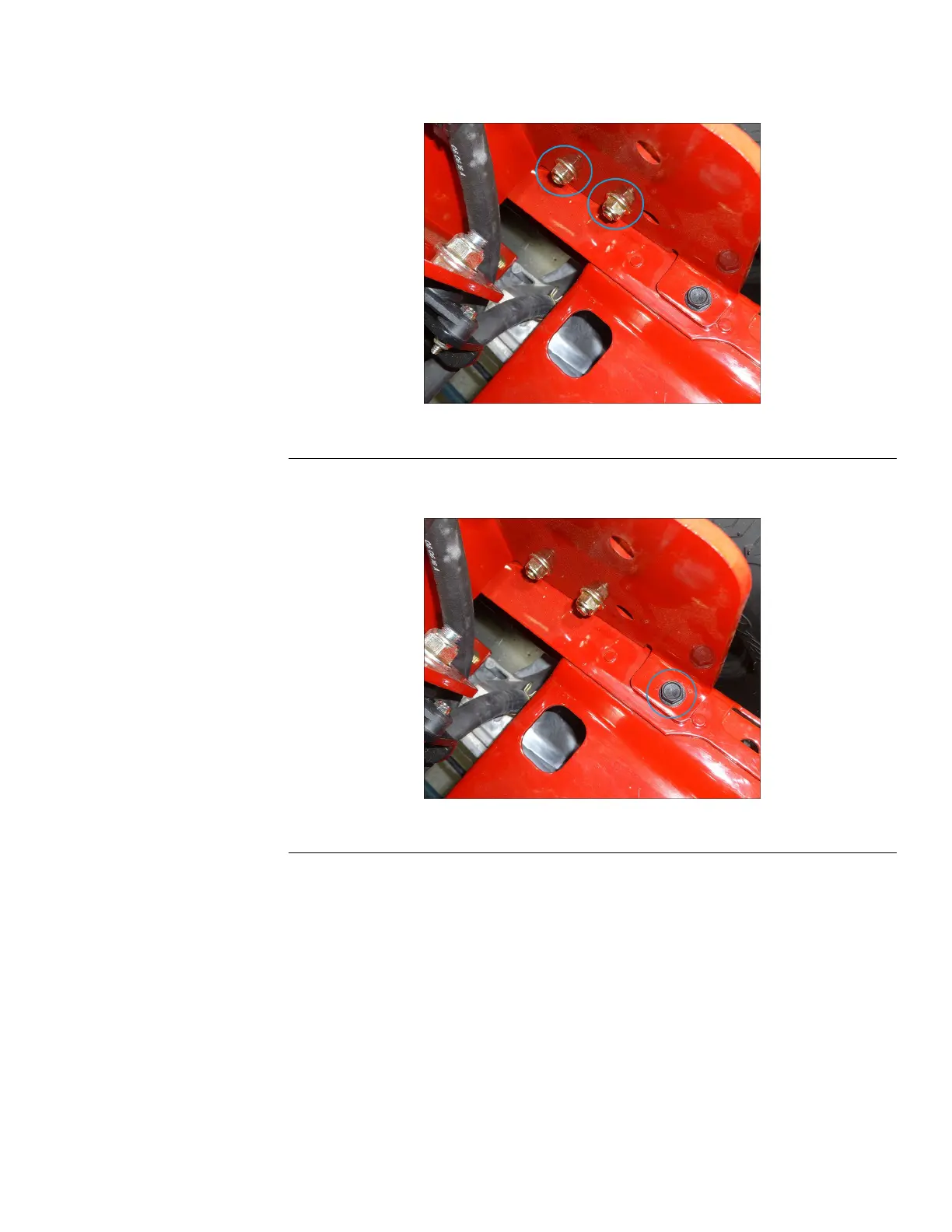

3.Installthe2boltsandnutssecuringtheframebracketstothemainframe
oneachsideofthemachine.
g321447
Figure36
4.Installtheself-tappingscrewontheframebracketoneachsideofthe
machine.
g321446
Figure37
5.Installtheboltandnutsecuringthefrontshock/springassemblytothe
MyRIDE™Platform.
TitanServiceManual
Page5–17
Chassis:ServiceandRepairs
3438-774RevA
