FuelTankRemoval(continued)
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removetherightandleftconsoles.LeftConsoleReplacement(page5–6)
RightConsoleReplacement(page5–8)
4.Reinstallthefuelcap.
5.Removetheseatassembly(ZXmodels)ortheMyRIDE™PlatformAssembly
(MRmodels).
6.Removethefueltankholddownrodandbolt.
7.Disconnectthefuelsupplylineandthebentlinefromthefueltank.
8.Rotateandliftthefueltankassemblyfromthemachine.
FuelTankInstallation
g321450

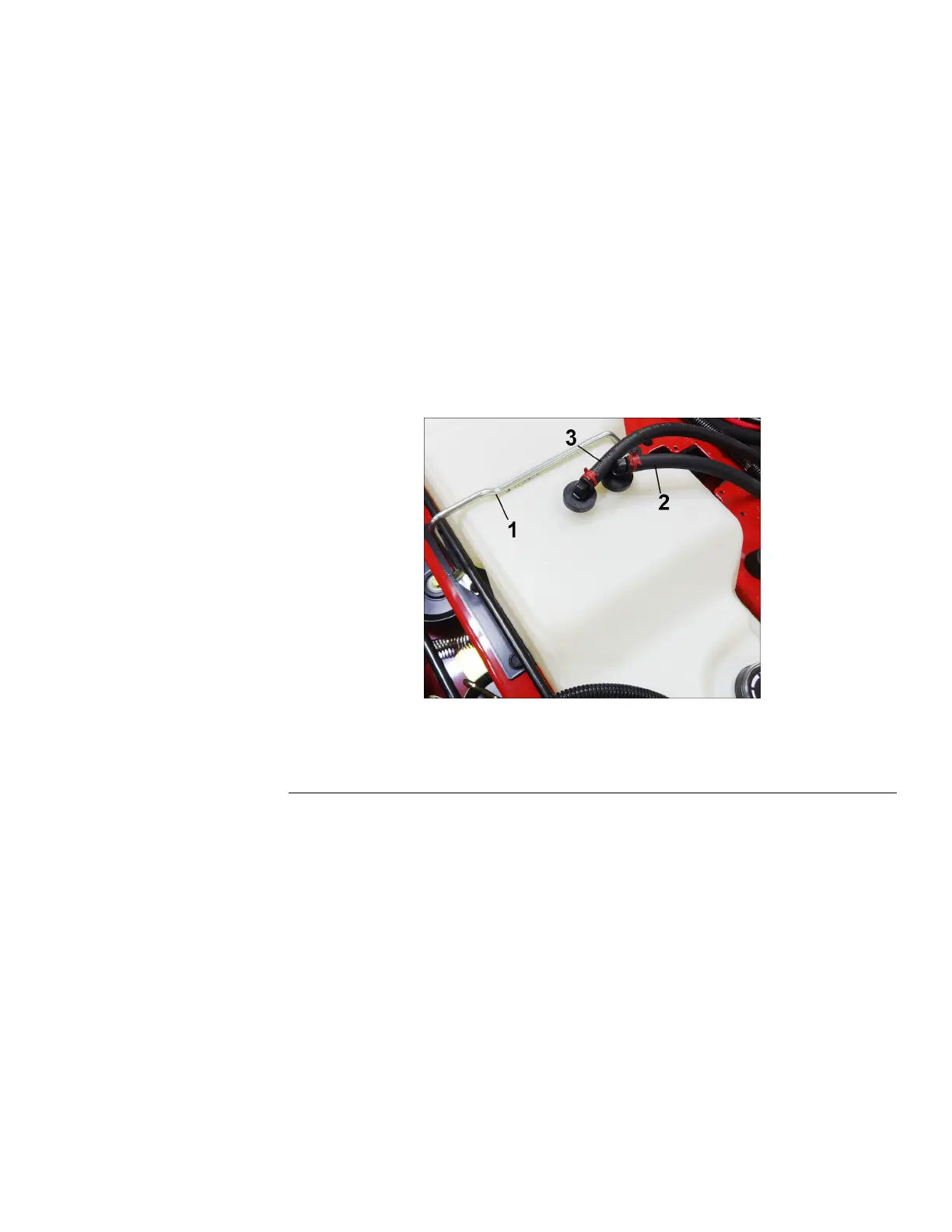

Figure40
1.FuelTankHold-DownRod3.VentLine
2.FuelSupplyLine
1.Positionthefueltankassemblyandrotateitontotheframewiththevent
portstowardtherearofthemachine.
2.Connecttheventlinetothefueltank.
3.Connectthefuelsupplylinetothefueltank.
Note:Makesurethatthefuellinesareroutedtowardstheholddownrod
andintherecessofthefueltank.
4.Installthefueltankholddownrodandbolt.
5.Installtheseatassembly.SeatReplacement(zxModelsOnly)(page5–11)
6.Installtherightandleftconsoles.LeftConsoleReplacement(page5–6)
RightConsoleReplacement(page5–8)
7.Installthefuelcapbyslidingthed-ringintotheneckofthefueltank.Secure
thefuelcaptothetank.
8.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
