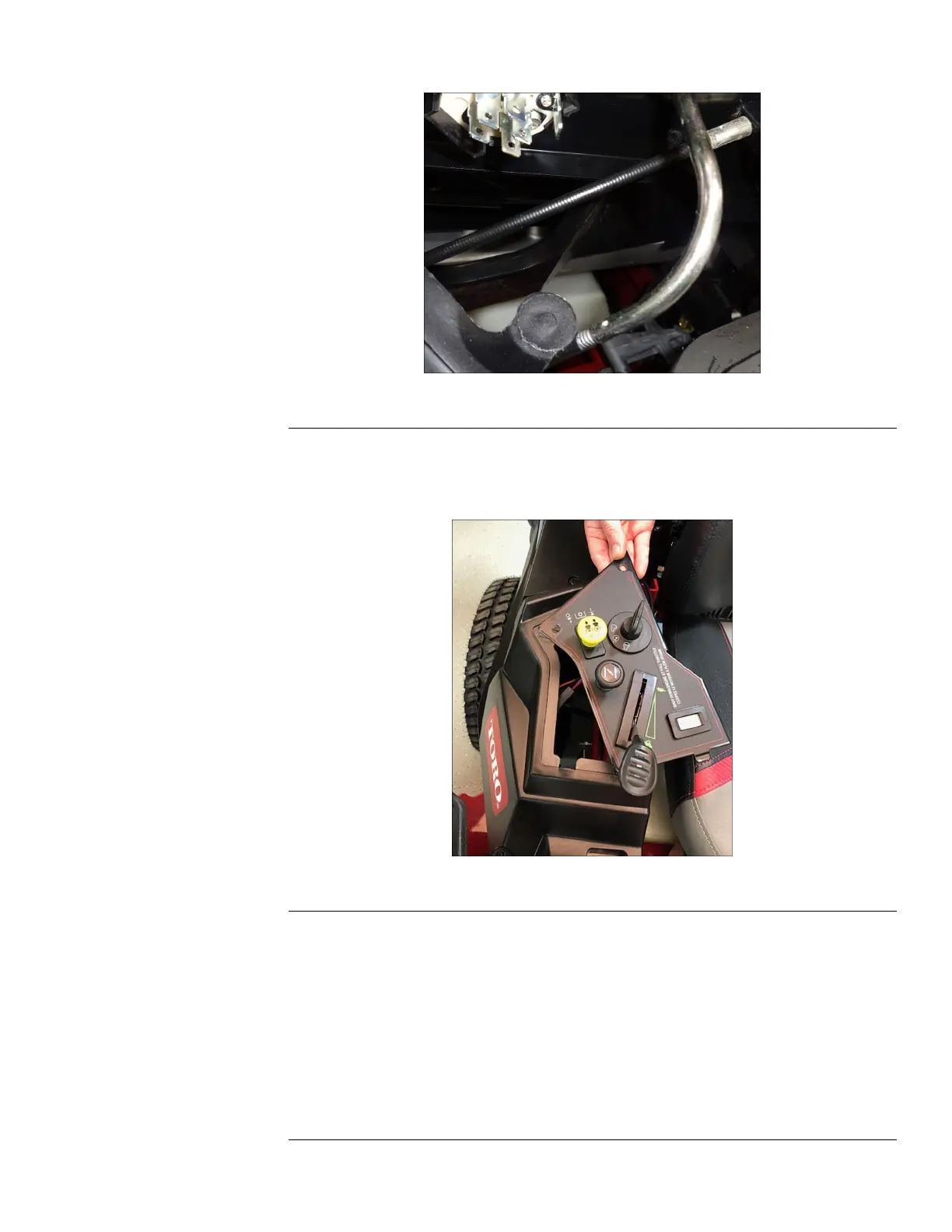

ThrottleControlAssemblyInstallation
1.Routethethrottlecablethroughtherightconsole.
g321452
Figure43
2.Snapthethrottlecontrolassemblyintoplace.
3.Installthecontrolpanelassemblyintotheconsole.
4.Movethethrottlecontrollevertothefullspeedposition.
g322343
Figure44
5.Placethezbendofthethrottlecableinthethrottleplateontheenginein
thepositionpreviouslynoted.
6.Placethecableunderthecableclamp.
7.Ensurethatthethrottlecontrolleverisinthefastidleposition.
Note:Pullonthecableandverifytheengineisatfullthrottle,thentighten
theclamp.
g321453
Figure45
TitanServiceManual
Page5–21
Chassis:ServiceandRepairs
3438-774RevA
