HydrostaticDriveBeltRemoval(continued)

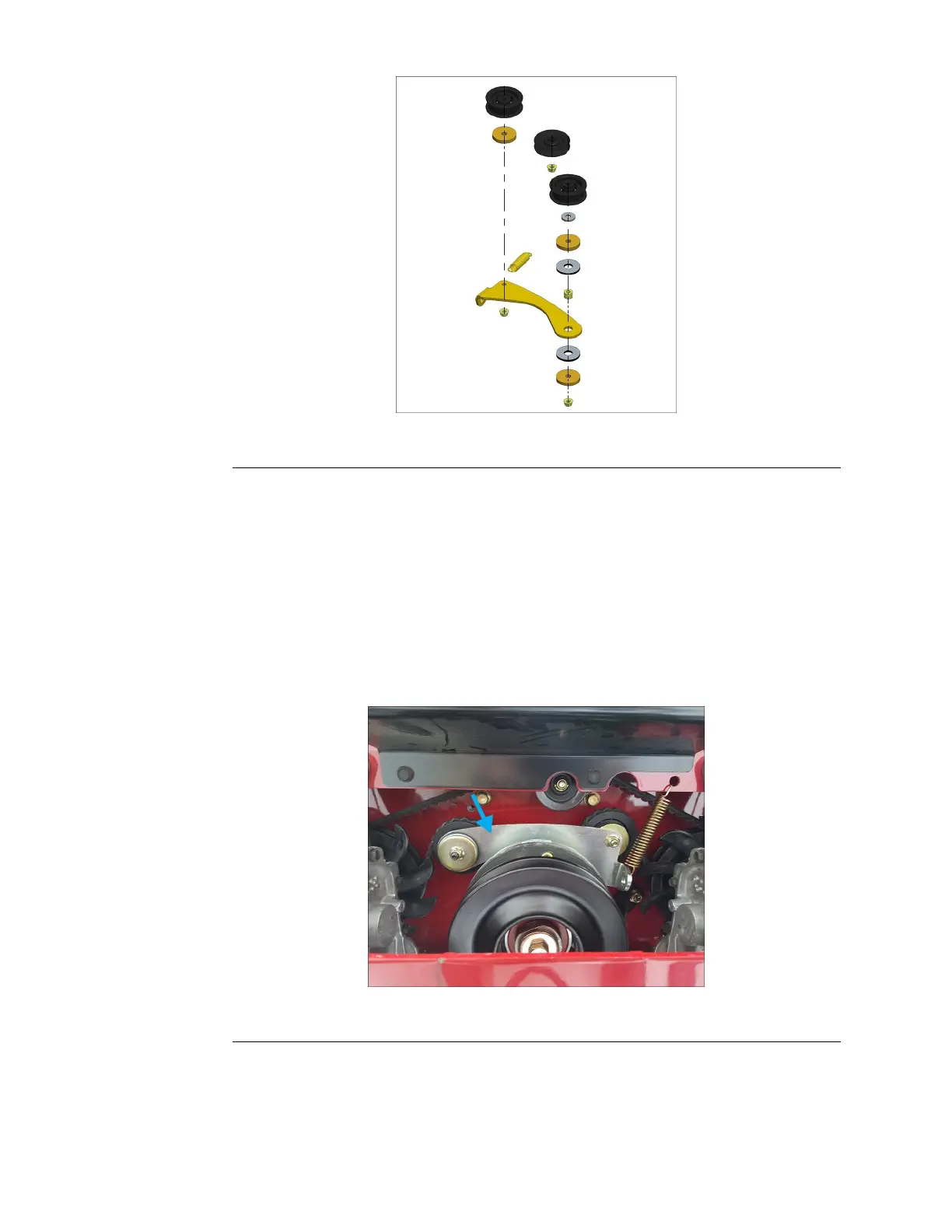

g321838
Figure60
9.Removethedrivebeltfromthehydrostaticdrivepulleys.
Note:Inspectthebeltforexcessivewear,damage,orcracking,replace
ifnecessary.
HydrostaticDriveBeltInstallation
1.Routethehydrostaticdrivebeltaroundthetwotransmissionpulleys.
2.Routethedrivebeltaroundtheenginepulley.
3.Installtheidlerarmandpulleys.
Note:Makesurethatthebeltisproperlyroutedbeforeinstallation.
g321833
Figure61
4.Installtheclutchstop.
5.Verifyproperroutingofthebelt.
6.Placetheidlerspringontotheidlerarmloopanduseaspringremovaltoolto
securethespring(A)intotheslotontherightrearoftheframe.
