ENGINE
5-60 Z580/Z593/Z595 Diesel Service Manual
5

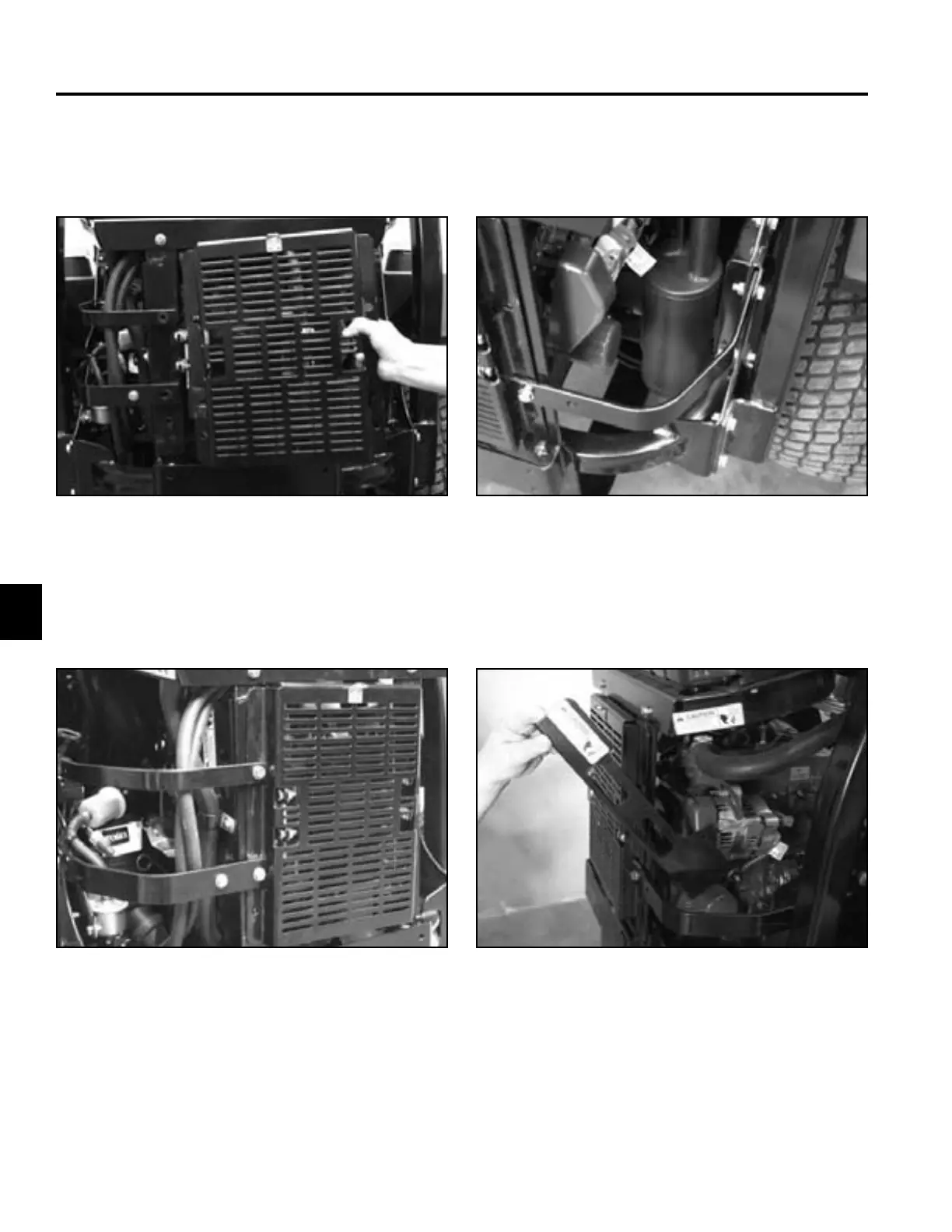

7. Position the cooler shield so the left fl ange is
between the left hand straps and the rear radiator
support (Fig. 629).
9. Position the right hand guard strap. Install 2 bolts,
washers and nuts securing right side guard strap to
the frame and radiator support (Fig. 631).
Fig 629 PICT-3781
Fig 631 PICT-3775
10. Position the right hand fan guard and install the bolt
washer and nut securing the right hand strap and fan
guard to the rear radiator strap (Fig. 632).
8. Install 2 bolts, washers and nuts securing the left
side of the cooler shield and left fan guard to the rear
radiator support (Fig. 630).
Fig 632 PICT-3432a
Fig 630 PICT-3808
