Toro Greensmaster eFlex 1800 User Manual

ToroElectronicController(TEC)

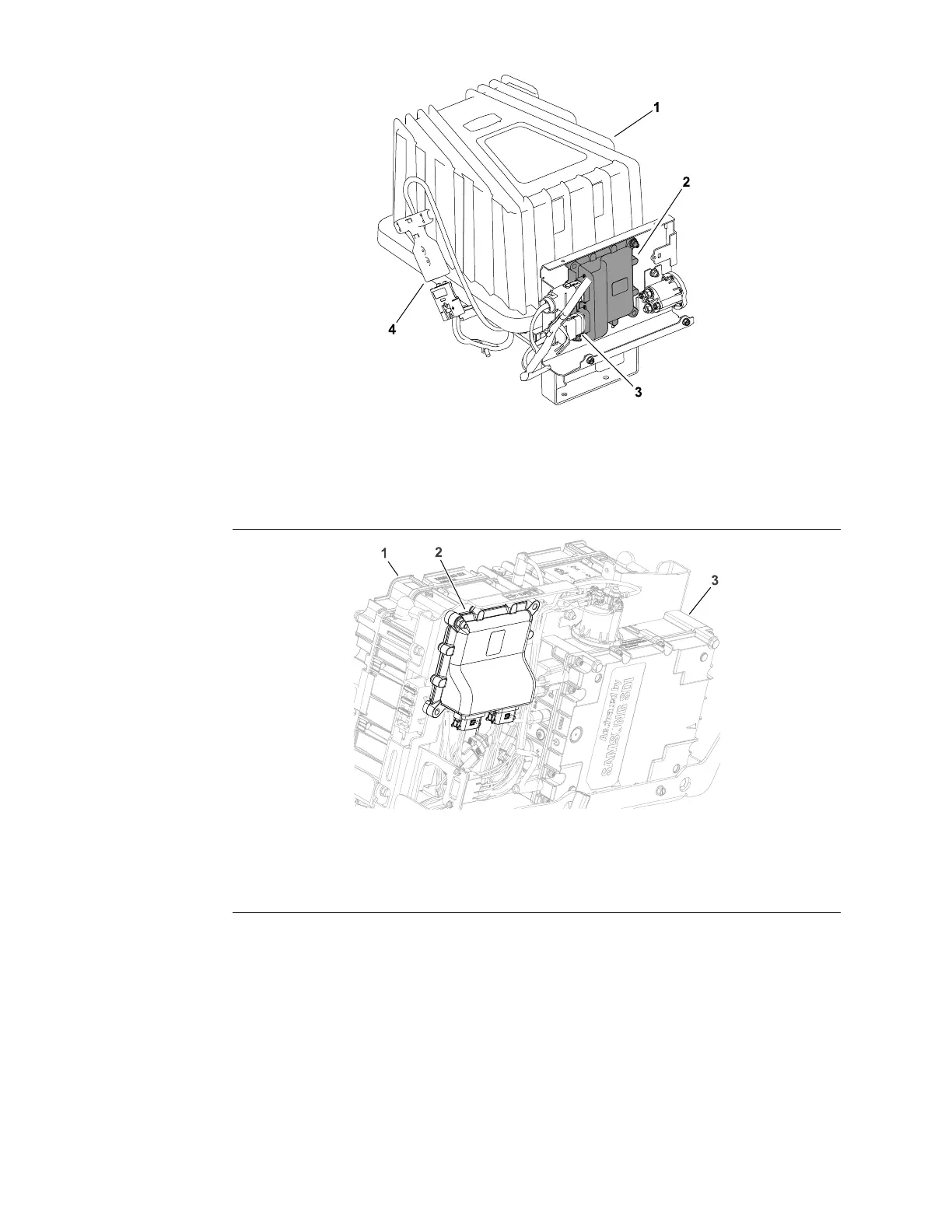

g202194
Figure58
eFlex2120Model04046(shown)
1.Lithiumbatterypack3.Wireharnessconnector
2.TEC
4.Machineconnector
g269814
Figure59
eFlex2120Model04049(shown)
1.Lithiumbatterypack
2.TEC3.SamsungSDIcontroller
TheGreensmaster1800/2100,and2120machinesuseaT oroElectronic
Controller(TEC)tomanagethemachineelectricalfunctions.Thecontrollerisa
microprocessorcontrolleddevicethatsensestheconditionofvariousswitches
(inputs)anddirectselectricalpowertocontroltheappropriatemachinefunctions
(outputs)basedontheinputs.Thestatusofinputstothecontrolleraswellas
outputsfromthecontrollercanbemonitoredwiththeInfoCenterdisplayonthe
console.Ifaproblemexiststhatcouldpreventnormaloperation,theInfoCenter
displaywilldisplayanoperatoradvisoryorfaultcodetoassistinidentifying
theproblem.
(Formodels04042,04043and04046)TheTECisattachedtothemachineunder
thepowercentercoverlocatedbehindthelithiumbatterypack;refertoFigure58.
ElectricalSystem:GeneralInformation
Page5–4
Greensmaster
®
eFlex1800,2100and2120
12189SLRevE
