Toro Greensmaster eFlex 1800 User Manual

ServiceandRepairs
ReelDriveBelt
TheeFlexmachinesuseapositivedrivebeltontheleftsideofthemachineto
operatethecuttingunit.
RemovingtheReelDriveBelt
1.Parkthemachineonalevelsurface,turnthekeyswitchtotheOFFposition,
andremovethekeyfromthekeyswitch.Disconnectthebatterypack;refer
toConnectingtheLithiumBatteryPack(page4–3).
g203646

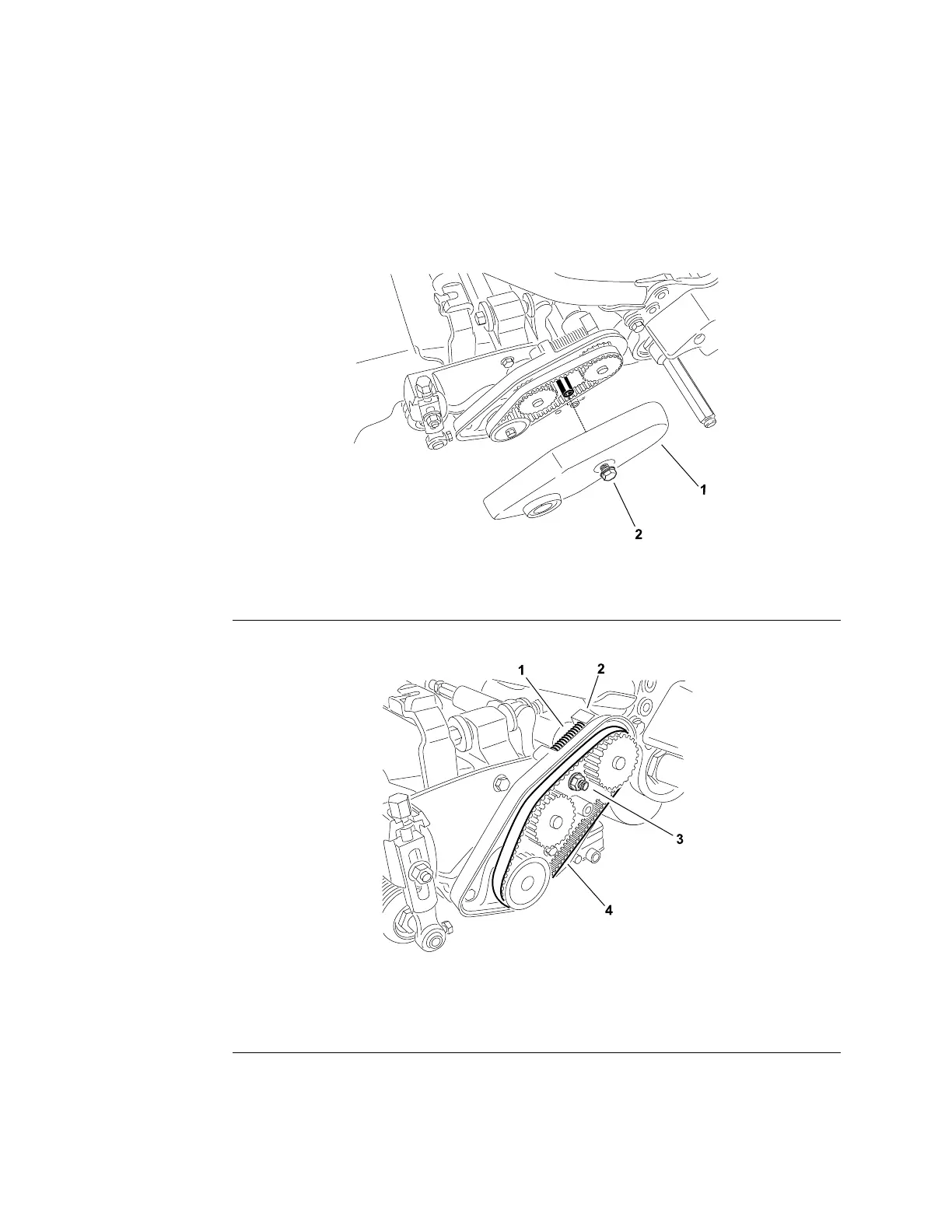

Figure23
1.Reeldrivecover2.Flange-headscrew
2.Removethereeldrivecovertoexposethereeldrivebelt(Figure23).
g203647
Figure24
1.Compressionspring
3.Bearinghousingnut
2.Bearinghousing4.Reeldrivebelt
3.Loosenthebearinghousingmountingnut(Figure24).
4.Usea16mm(5/8inch)wrench,rotatethebearinghousingtoreleasetension
onthereeldrivebelt(Figure24).
5.Removethereeldrivebeltfromthepulleys.
TractionandReelDriveSystem:ServiceandRepairs
Page4–14
Greensmaster
®
eFlex1800,2100and2120
12189SLRevE
