Toro Greensmaster eFlex 1800 User Manual

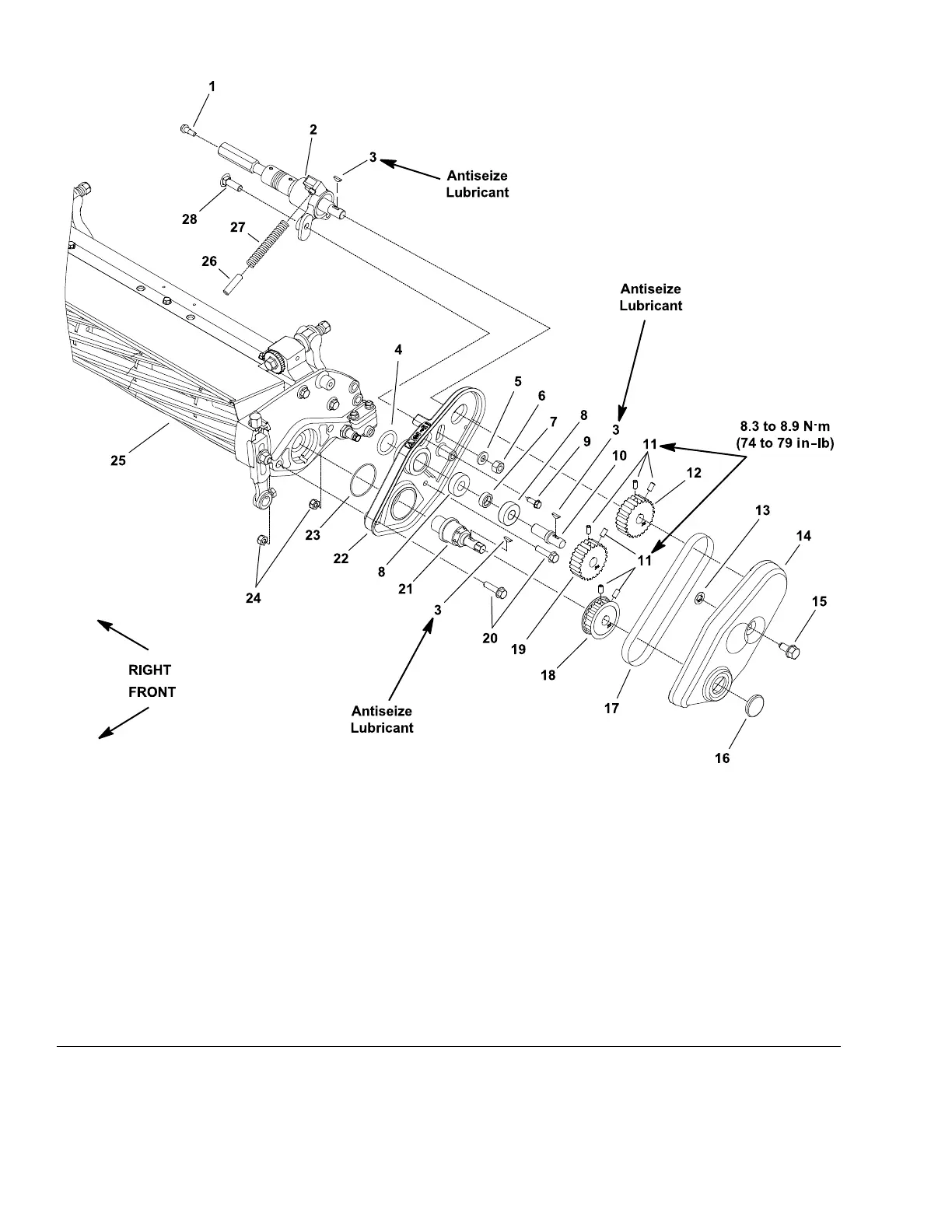

ReelDriveAssembly
g203644
Figure25
1.Shoulderbolt11.Setscrew(2eachperpulley)21.Reeldriveshaft
2.Bearinghousingassembly
12.Reelpulley(25tooth)(red)
22.Reeldrivehousing
3.Woodruffkey(3each)
13.Pushnut
23.O-ring
4.O-ring
14.Reeldrivecover
24.Hexnut(2each)
5.Hardenedwasher15.Flange-headscrew
25.Cuttingunit
6.Hexnut
16.Coverplug26.Springpin
7.Spacer
17.Belt
27.Compressionspring
8.Ballbearing(2each)18.Reelpulley(22tooth)(aluminum)28.Carriagescrew
9.Washer-headscrew
19.Reelpulley(24tooth)(black)
10.Reelidlershaft20.Flange-headscrew(2each)
Note:ThecuttingunitclipadjustmentontheeFlex1800/2100,and2120is
adjustedbyinstallingthecuttingunitdrivepulleys(items12,18,and19inFigure
25)totheappropriatelocationsonthereeldriveassembly;refertoAdjustingthe
CuttingUnitClip(page4–10).
TractionandReelDriveSystem:ServiceandRepairs
Page4–16
Greensmaster
®
eFlex1800,2100and2120
12189SLRevE

Toro Greensmaster eFlex 1800 Specifications

General

Cutting Width	18 inches
Power Source	Battery
Blade Type	Reel
Drive Type	Electric
Deck Type	Fixed
Warranty	2 years
Number of Blades	11-blade reel
