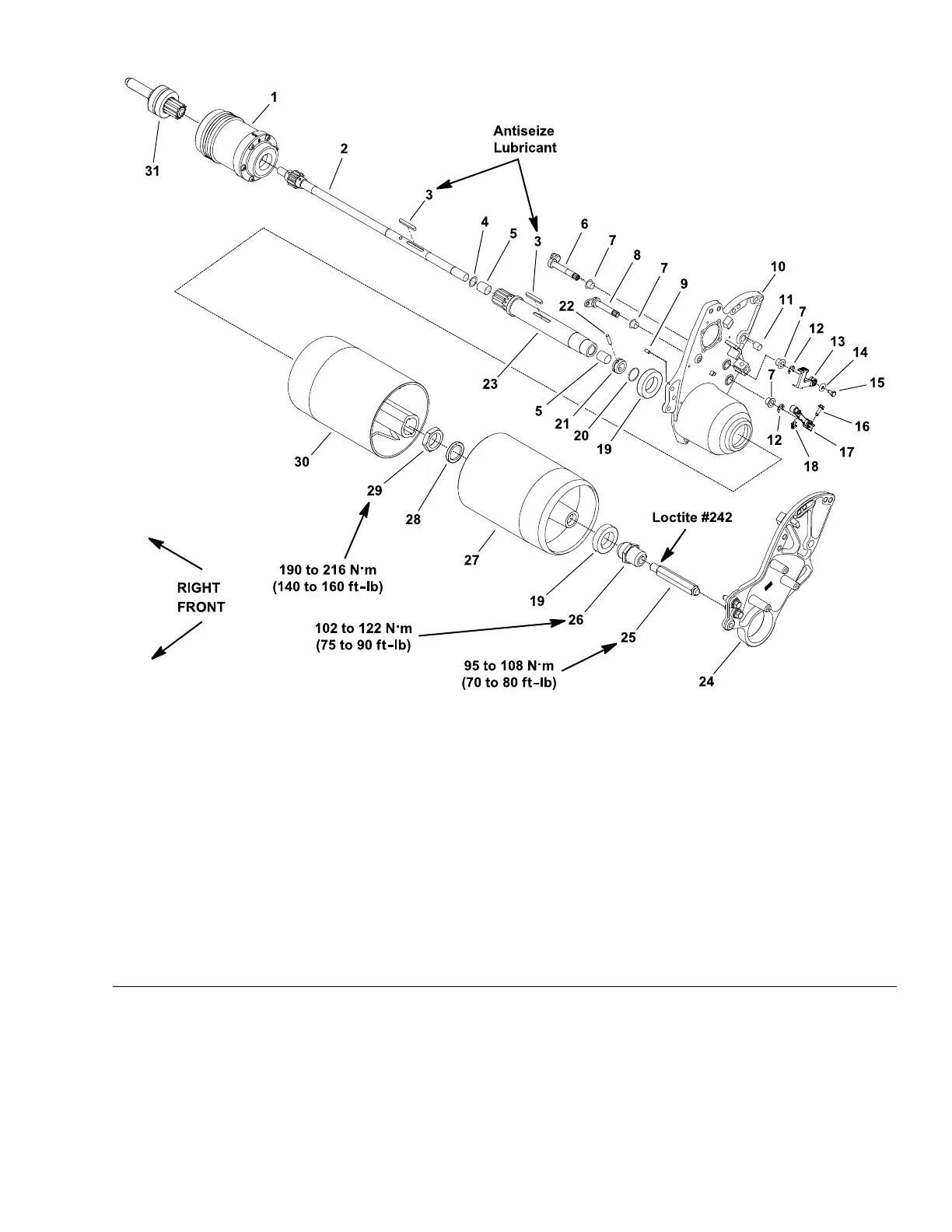

DifferentialAssembly
g204321
Figure36
1.Differentialassembly12.Retainingring(2each)
23.Longspurgear
2.Drumshaft
13.Tractionengagelever
24.Leftsideplate
3.Squarekey(2each)
14.Flatwasher
25.Lefthexshaft
4.Thrustwasher15.Bolt26.Bearingnut
5.Straightbushing(2each)
16.Washer-headscrew
27.Lefttractiondrum
6.Tractionlever17.Brakelever
28.Greaseseal
7.Flangebushing(4each)
18.Retainingring29.Jamnut
8.Brakelever
19.Ballbearing(2each)
30.Righttractiondrum
9.Dowelpin(2each)20.O-ring31.Spurgearassembly
10.Drumdrivehousing21.Lockcollar
11.Straightbushing
22.Pin
Greensmaster
®
eFlex1800,2100and2120
Page4–31
TractionandReelDriveSystem:ServiceandRepairs
12189SLRevE

Toro Greensmaster eFlex 1800 Specifications

General

Cutting Width	18 inches
Power Source	Battery
Blade Type	Reel
Drive Type	Electric
Deck Type	Fixed
Warranty	2 years
Number of Blades	11-blade reel
