Toro Greensmaster eFlex 1800 User Manual

ServiceandRepairs
ElectricMotor

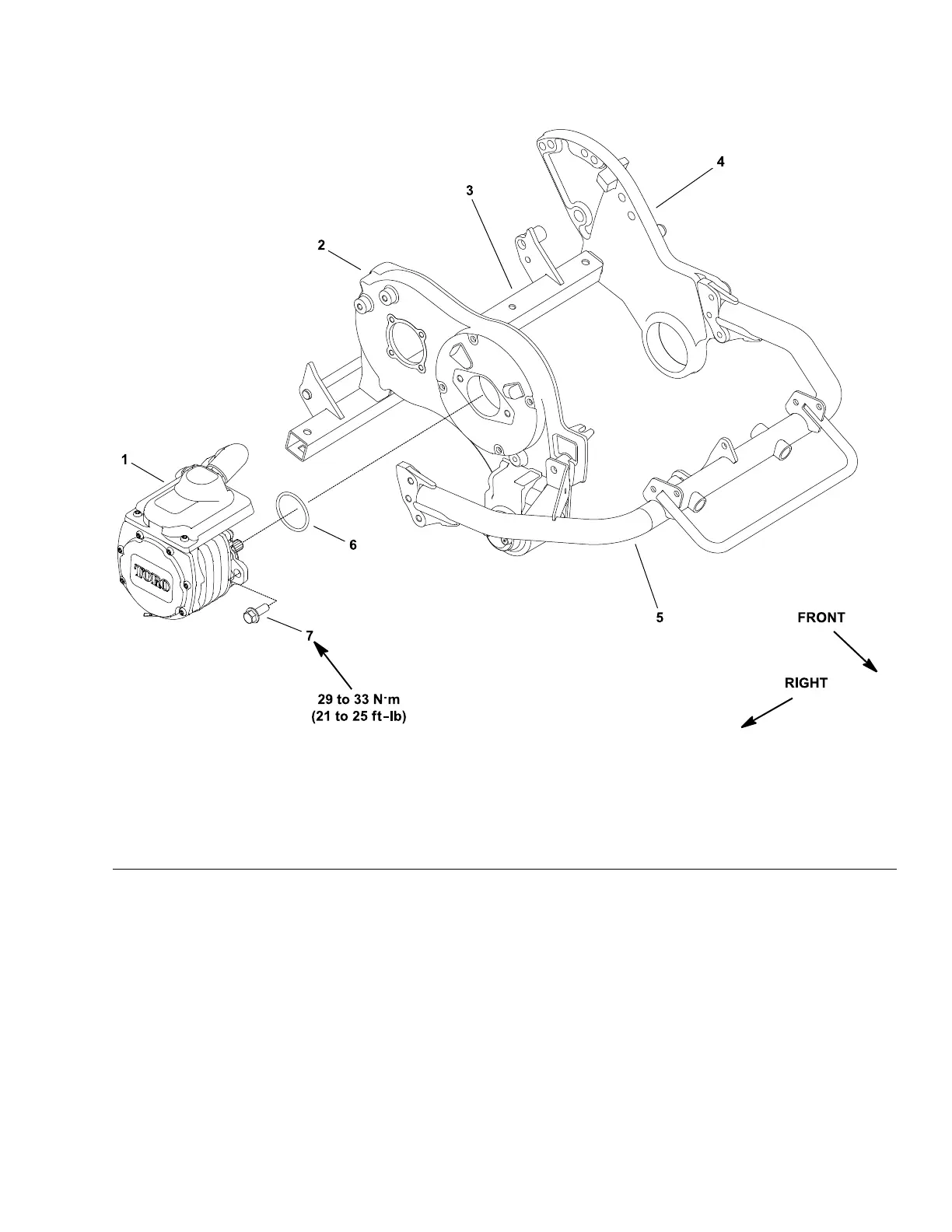

g202784
Figure118
1.Electricmotorassembly
4.Leftsideplate7.Flange-headscrew(2each)
2.Transmissionhousing
5.Frame
3.Rearframe6.O-ring
Note:Adamagedelectricmotorassemblymaycausea#6,#7,#8,#9,or#10
faulttobegeneratedanddisplayedontheInfoCenterdisplay.RefertotheFaults
Screen(page5–26)forinformationonfaults.
RemovingtheElectricMotor
1.Parkthemachineonalevelsurfaceandplacethetractionleverinthe
NEUTRALposition.TurnthekeyswitchtotheOFFpositionandremovethe
keyfromthekeyswitch.
2.Disconnectthebatterypack;refertoConnectingtheLithiumBatteryPack
(page5–7).
3.Disconnecttheelectricmotorconnectionsfromthemachinewireharness.
4.Supporttheelectricmotortopreventitfromfalling.
Greensmaster
®
eFlex1800,2100and2120
Page5–69
ElectricalSystem:ServiceandRepairs
12189SLRevE
