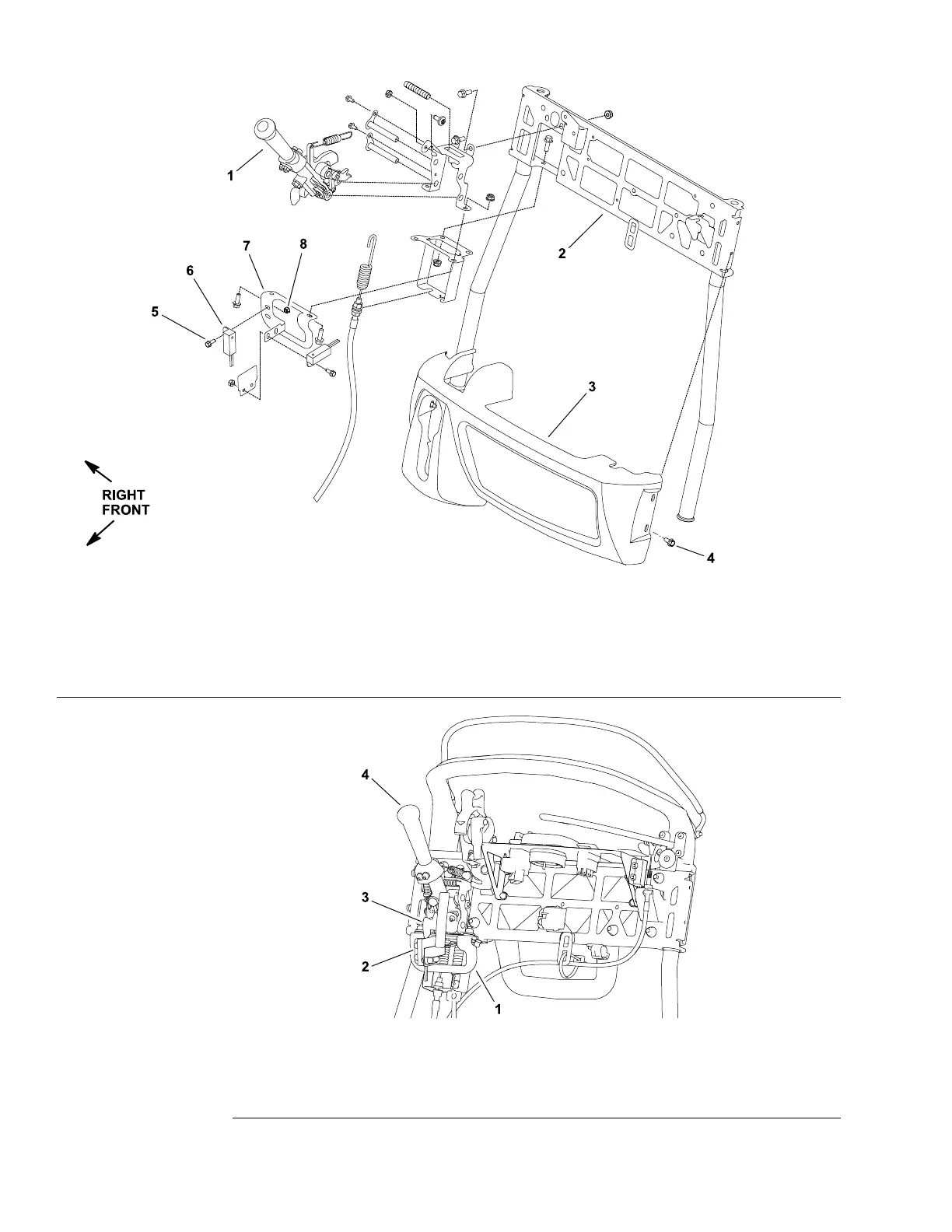

ReelEngageSwitch
g202438
Figure104
1.Engagementleverassembly
4.Washer-headscrew(4each)7.Switchmountbracket
2.Lowerhandle
5.Washer-headscrew(2each)8.Locknut(2each)
3.Consolecover
6.Reelengageswitch
g202429
Figure105
1.Switchmountbracket
3.Reellevertab
2.Reelengageswitch4.Engagementlever
ElectricalSystem:TestingtheElectricalComponents
Page5–54
Greensmaster
®
eFlex1800,2100and2120
12189SLRevE
