RemovingtheReelClutchShaft(seizedbearingcondition)
g205735

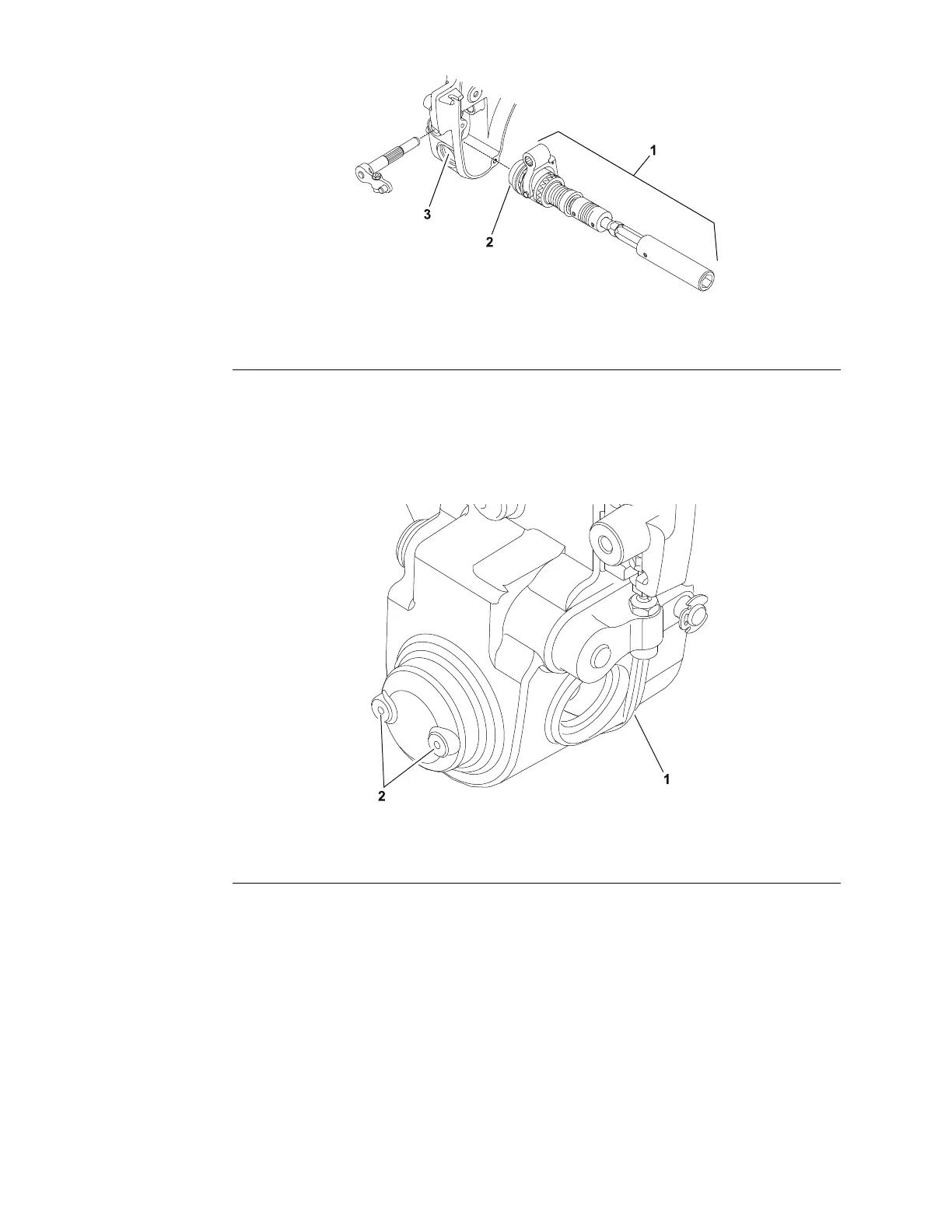

Figure51
1.Reelclutchshaft
2.Ballbearing3.Housingbearingbore
Ifthereelclutchshaftassemblycannotbeeasilyremovedfromthetransmission
housingduetobearingseizure,followtheproceduretoremovethereelclutch
shaftassembly.
1.Ensurethatthetransmissiondrivebeltandreelclutchleverareremoved
fromthehousing;refertoTransmissionDriveBelt(page4–38).
g205736
Figure52
1.Transmissionhousing2.Housingdimple
2.Carefullydrill2No.7(0.201inchdiameter)holesinthetransmissionhousing
usingthedimplesinthehousingascentersfortheholes(Figure52).The
holesshouldbedrilledcompletelythroughthehousingallowingexternal
accesstotheballbearingonthereelshaft.
3.Usea3/16inchpunchthroughthedrilledholestocarefullydrivethebearing
andreelclutchshaftfromthetransmissionhousing.
TractionandReelDriveSystem:ServiceandRepairs
Page4–48
Greensmaster
®
eFlex1800,2100and2120
12189SLRevE

Toro Greensmaster eFlex 1800 Specifications

General

Cutting Width	18 inches
Power Source	Battery
Blade Type	Reel
Drive Type	Electric
Deck Type	Fixed
Warranty	2 years
Number of Blades	11-blade reel
