Toro Greensmaster eFlex 1800 User Manual

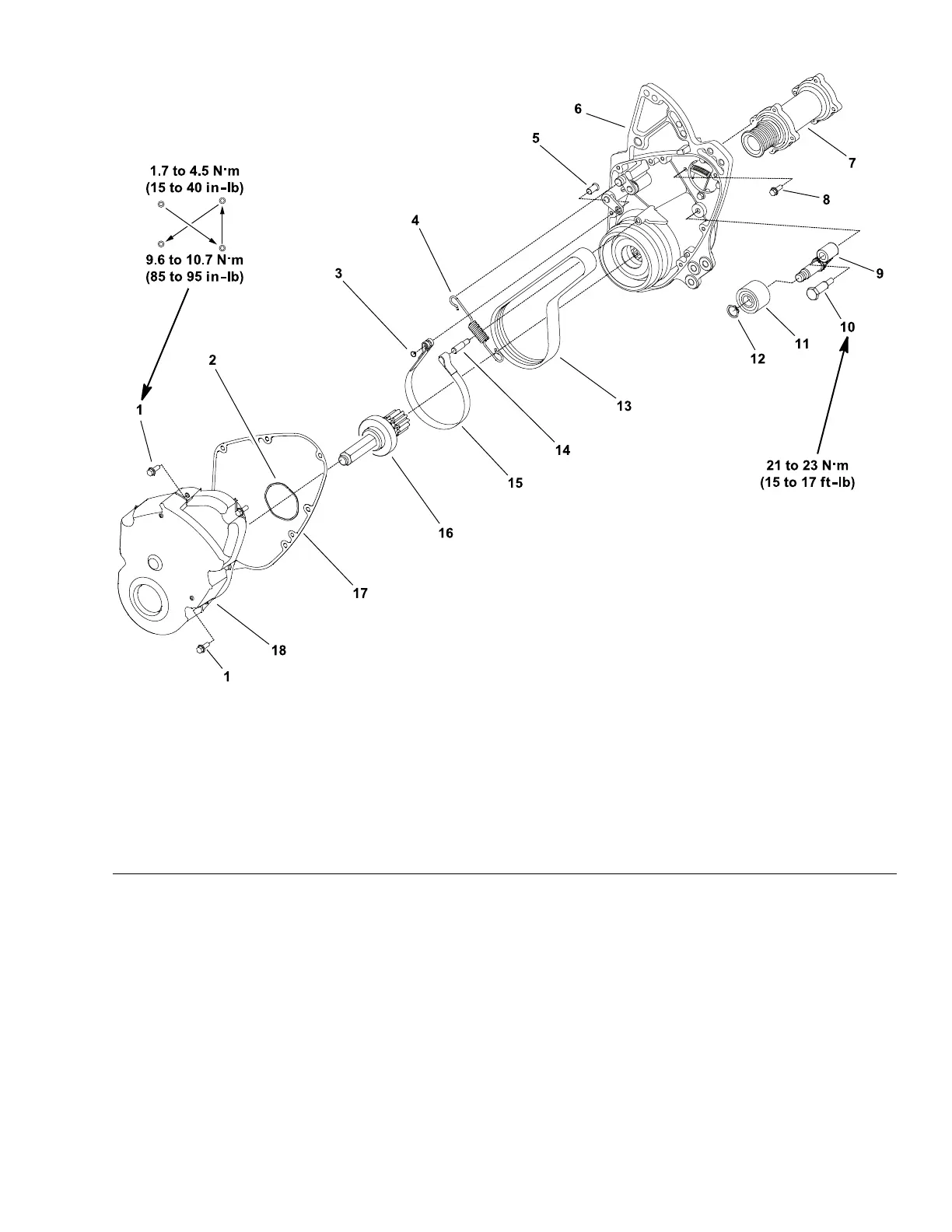

DrumDriveBelt
g203649
Figure28
1.Washer-headscrew(7each)7.Drivepulley(fromtransmission)
13.Drumdrivebelt
2.Wavewasher
8.Washer-headscrew(4each)
14.Brakemountpin
3.Retainingring9.Idlerarmassembly15.Brakeband
4.Extensionspring
10.Shoulderscrew16.Gearassembly
5.Brakeclevispin11.Idlerpulleyassembly
17.Gasket
6.Drumdrivehousing12.Retainingring
18.Drumdrivecover
ThedrumdrivesystemontheeFlex1800/2100,and2120machinesusesa
multi-ribbedpoly-Vdrivebeltontherightsideofthetractiondrum.
RemovingtheDrumDriveBelt
1.Parkthemachineonalevelsurface,turnthekeyswitchtotheOFFposition,
andremovethekeyfromthekeyswitch.Disconnectthebatterypack;refer
toConnectingtheLithiumBatteryPack(page4–3).
2.Ifinstalled,removethetransportwheels;refertoTransportWheels(Optional)
(page6–21).
3.Ifinstalled,removetherailkitwheels;refertoRailKitWheels(Optional)
(page6–24).
Greensmaster
®
eFlex1800,2100and2120
Page4–21
TractionandReelDriveSystem:ServiceandRepairs
12189SLRevE

Toro Greensmaster eFlex 1800 Specifications

General

Cutting Width	18 inches
Power Source	Battery
Blade Type	Reel
Drive Type	Electric
Deck Type	Fixed
Warranty	2 years
Number of Blades	11-blade reel
