Toro Greensmaster eFlex 1800 User Manual

TransmissionDrumDriveSystem
g205738

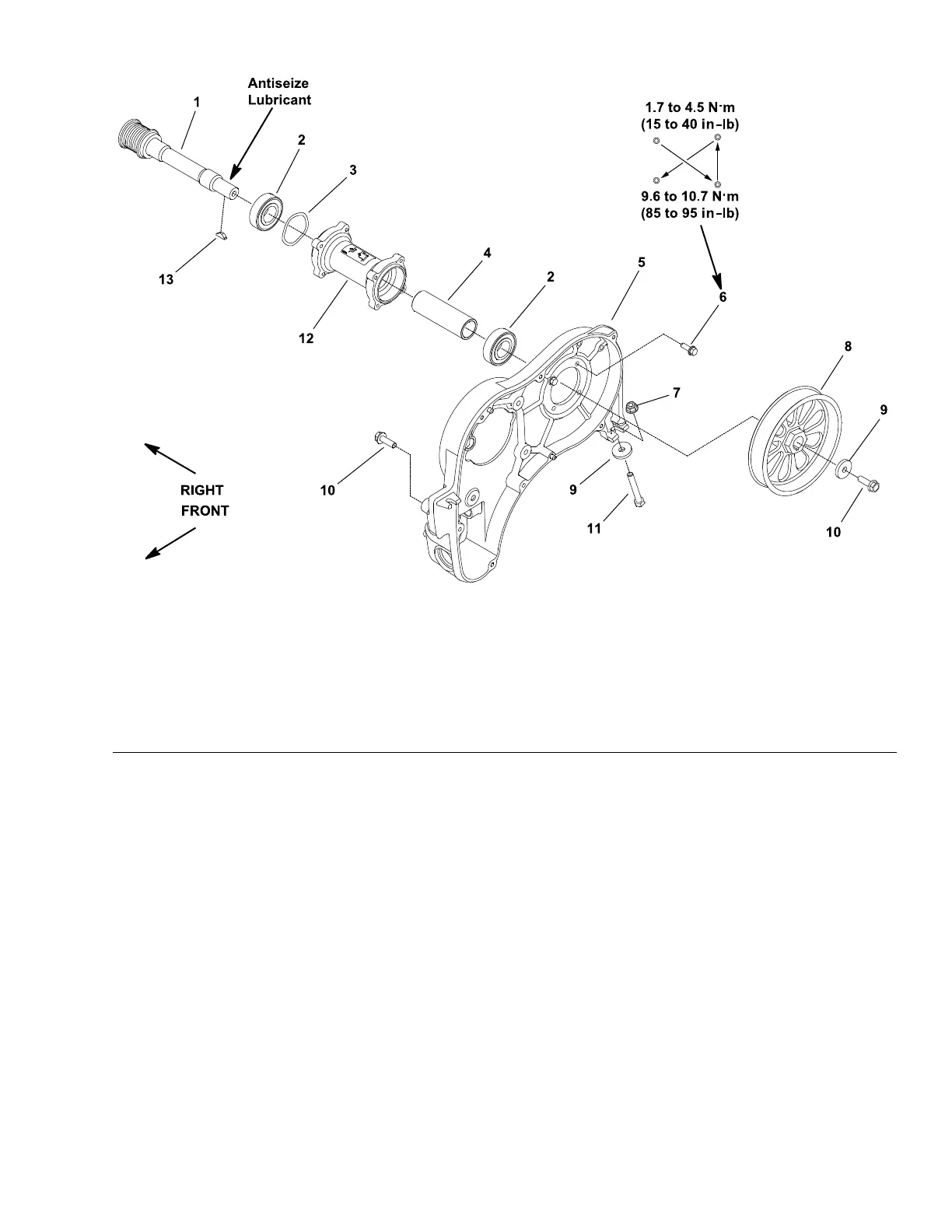

Figure54
1.Drivenpulley(tractiondrumdrive)6.Washer-headscrew(4each)
11.Bolt
2.Ballbearing(2each)
7.Flangenut12.Extensionhousing
3.Wavewasher8.Drivenpulley
13.Woodruffkey
4.Spacer9.Hardenedwasher(2each)
5.Transmissionhousing
10.Flange-headscrew(2each)
Thetransmissionremovalfromthemachineisnotnecessarytoservicethe
transmissiondrumdrivesystemshowninFigure54.Thetransmissiondrum
drivecomponentscanbeaccessedbyremovingthebatterypackfromtheframe,
removingthetransmissioncover,andremovingthedrivebelt.
DisassemblingtheTransmissionDrumDriveSystem
1.Parkthemachineonalevelsurface,turnthekeyswitchtotheOFFposition,
andremovethekeyfromthekeyswitch.Disconnectthebatterypack;refer
toConnectingtheLithiumBatteryPack(page4–3).
2.Removethetransmissiondrivebelt;refertoTransmissionDriveBelt(page
4–38).
3.Removetheange-headscrew(item10inFigure54)andhardenedwasher
thatsecurethedrivenpulleytotheshaft.Slidethepulleyfromtheshaft.
Locateandretrievethewoodruffkey.
4.Removethedrumdrivebeltfromthemachine;refertoDrumDriveBelt
(page4–21).
5.Slidethetractiondrumdrivedrivenpulley(item1inFigure54)fromthe
extensionhousing.
Greensmaster
®
eFlex1800,2100and2120
Page4–53
TractionandReelDriveSystem:ServiceandRepairs
12189SLRevE

Toro Greensmaster eFlex 1800 Specifications

General

Cutting Width	18 inches
Power Source	Battery
Blade Type	Reel
Drive Type	Electric
Deck Type	Fixed
Warranty	2 years
Number of Blades	11-blade reel
