Toro Greensmaster eFlex 1800 User Manual

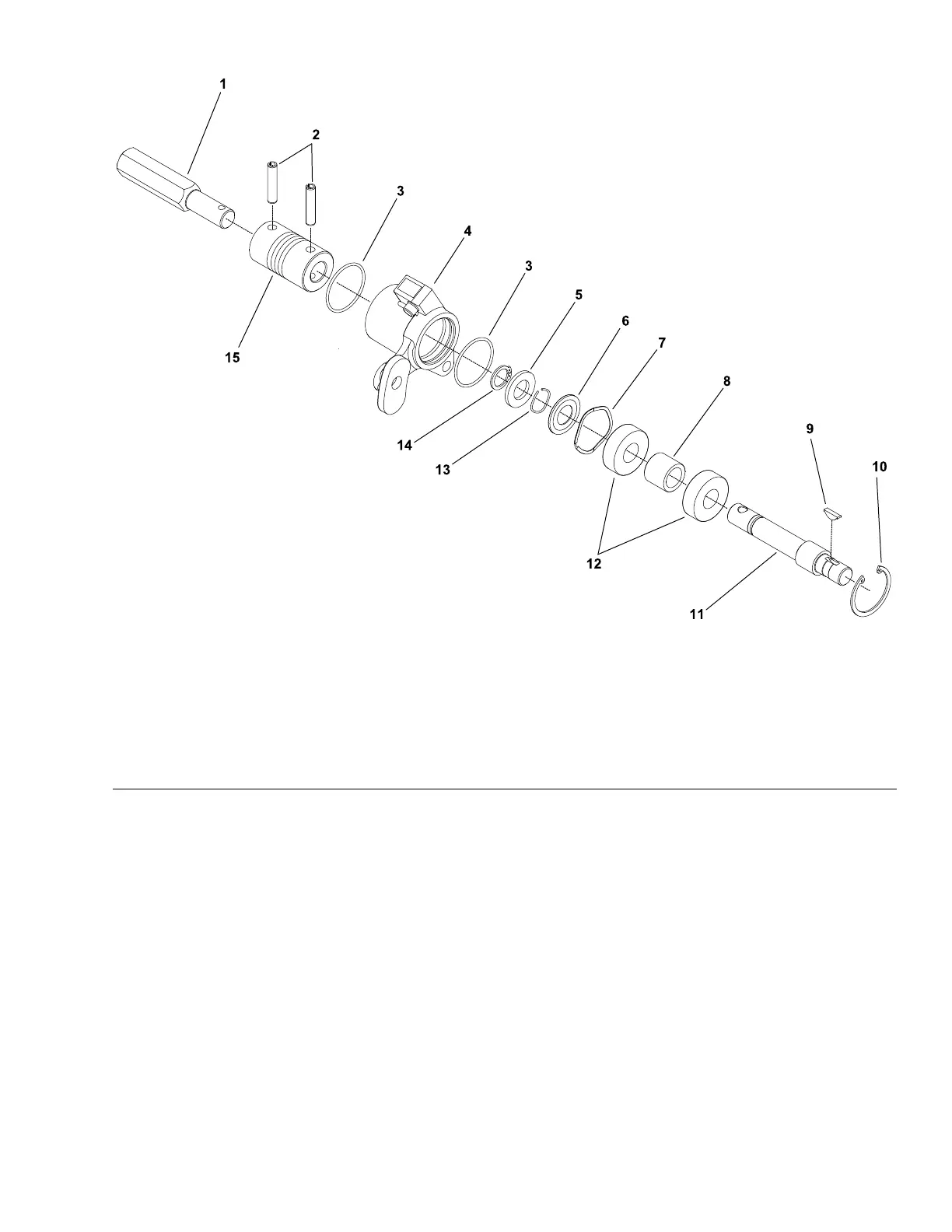

ReelDriveBearingHousing
g203648
Figure27
1.Reelhexshaft
6.Flockedbearingshield
11.Reelinputshaft
2.Springpin(2each)
7.Wavewasher
12.Bearing(2each)
3.O-ring(2each)
8.Bearingspacer13.Wavespring
4.Bearinghousing9.Key14.Retainingring
5.Flatwasher10.Retainingring15.Flexcoupler
DisassemblingtheReelDriveBearingHousing
1.Parkthemachineonalevelsurface,turnthekeyswitchtotheOFFposition,
andremovethekeyfromthekeyswitch.Disconnectthebatterypack;refer
toConnectingtheLithiumBatteryPack(page4–3).
2.Removethereeldrivebearinghousingfromthereeldrivehousing;referto
ReelDriveAssembly(page4–16).
3.Removetheretainingring(item10inFigure27)fromthebearinghousing.
4.Slidethereelinputshaftassemblyfromthebearinghousing.Removethe
wavewasher(item7inFigure27)fromthebearinghousing.
Greensmaster
®
eFlex1800,2100and2120
Page4–19
TractionandReelDriveSystem:ServiceandRepairs
12189SLRevE

Toro Greensmaster eFlex 1800 Specifications

General

Cutting Width	18 inches
Power Source	Battery
Blade Type	Reel
Drive Type	Electric
Deck Type	Fixed
Warranty	2 years
Number of Blades	11-blade reel
