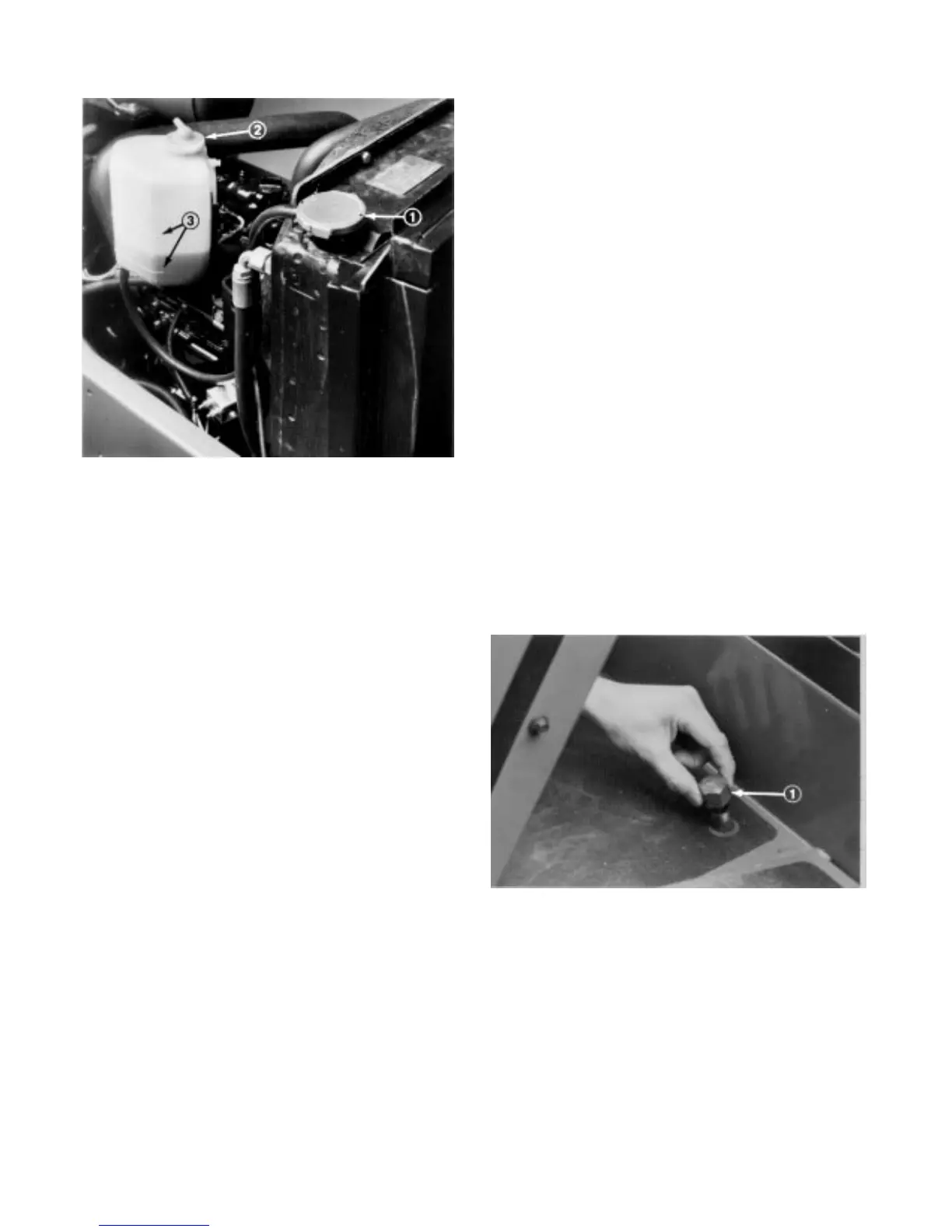

 Check level of coolant in radiator. Radiator should
be filled to the top of the filler neck and the expansion
tank filled to between the marks on its side.
 If coolant level is low, replenish the system. DO
NOT OVERFILL.
 Install radiator cap and expansion tank cap.
 " " 
The hydraulic system was designed to operate on any
high quality detergent oil having the American
Petroleum InstituteĊAPIĊservice classification" SF,
CC or CD. Oil viscosity Ċ weight Ċ must be selected
according to anticipated ambient temperature.
Temperature/viscosity recommendations are:
81'%4'& '%0..'/&'&
.$+'/4 +3%03+49
'.1'2#452' #/& 91'
(Extreme) over 90 F SAE 30, Type SF, CC or CD
engine oil.
(Normal) 40Ć100 F SAE 10WĆ30 or 10WĆ40.
Type SF, CC or CD engine oil.
(CoolĊSpring/Fall) SAE 5WĆ30, Type SF, CC or
30-50 F CD engine oil.
(Winter) Below 30 F Type F" or FA" ATF Automatic
Transmission Fluid.
04' Do not mix engine oil and automatic
transmission fluid or hydraulic component damage
may result. When changing fluids, also change
transmission filter.    !  
The axle housing acts as the reservoir for the system.
The transmission and axle housing are shipped from
the factory with approximately 5 quarts (4.7 l) of SAE
10WĆ30 engine oil. However, check level of
transmission oil before engine is first started and daily
thereafter.
 Position machine on a level surface. Place all
control in neutral position and start the engine. Run
engine at lowest possible RPM to purge the system of
air.     Cycle steering wheel
several times fully to the left and right. Raise the cutting
unit to extend lift cylinders, aiming steering wheels
straight forward and stop the engine.
 Remove dipstick cap (Fig. 15) from filler neck and
wipe it with a clean rag. Screw dipstick cap fingerĆtight
onto filler neck; then remove it and check level of fluid. If
level is not within 1/2 inch (13 mm) from the groove in
the dipstick (Fig. 15), add SAE 10WĆ30 engine oil, or, if
used, automatic transmission fluid to raise level to
groove mark. Do not overfill.
+)52' 
 9&2#5-+% 3934'. 2'3'260+2 (-5+&#&& &+134+%, %#1
 *'/ #&&+/) 42#/3.+33+0/ (-5+& 40 4*'
*9&2#5-+% 3934'. 53' # (5//'- 7+4* # (+/' 7+2'
3%2''/ :  .'3* 02 (+/'2 : #/& .#,' 352' (5//'-
#/& 42#/3.+33+0/ (-5+& #2' +..#%5-#4'-9 %-'#/ *+3
120%'&52' 12'6'/43 #%%+&'/4#- %0/4#.+/#4+0/ 0(
4*' *9&2#5-+% 3934'.
 Thread dipstick fill cap fingerĆtight onto filler neck. It
is not necessary to tighten cap with a wrench.
 Check all hoses and fittings for leaks.
