Toro Groundsmaster 3310 Series - Raising the Roll Bar

g034169
g034164

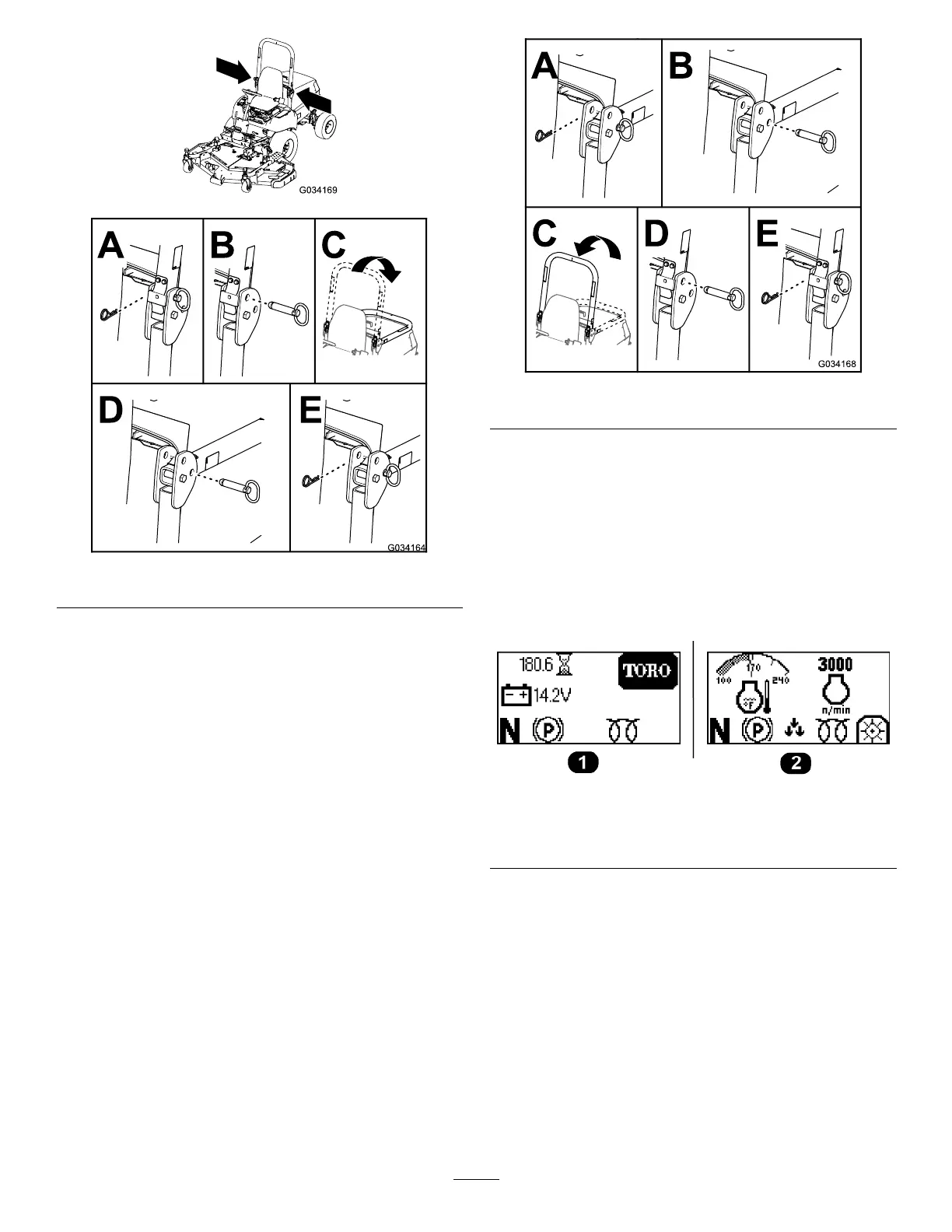

Figure26
RaisingtheRollBar
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,lowerthecuttingunit,shutoffthe
engine,andremovethekeyfromthekeyswitch.
2.Removethecotterpinsandpinsfromtheroll
bar(Figure27).
3.Raisetherollbarandsecureitinplacewiththe
pinsandcotterpins(Figure27).
g034168
Figure27
Understandingthe
Display-ScreenInformation
Thedisplayscreenshowsinformationaboutyour
machine,suchastheoperatingstatus,various
diagnostics,andotherinformationaboutthemachine.
Therearetwomain-informationscreens(Figure28)
andamainmenuscreen.
g297926
Figure28
1.Batterylevelandhour
meterscreen
2.Enginetemperatureand
enginespeedscreen
UsingtheDisplay-ScreenButton
Usethedisplay-screenbutton(showninFigure29)to
togglebetweenthe2main-informationscreensand
toaccessthemainmenu.
27
