Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Beforeeachuseordaily—Grease
thePTOdriveshaft(cross-bearings
andtelescopingsplines).
Every50hours—Greasethebearingsand
bushings.
Themachinehasgreasettingsthatyoumust
lubricateregularlywithNo.2lithiumgrease.
Important:Lubricatethemachineimmediately
aftereverywashing.

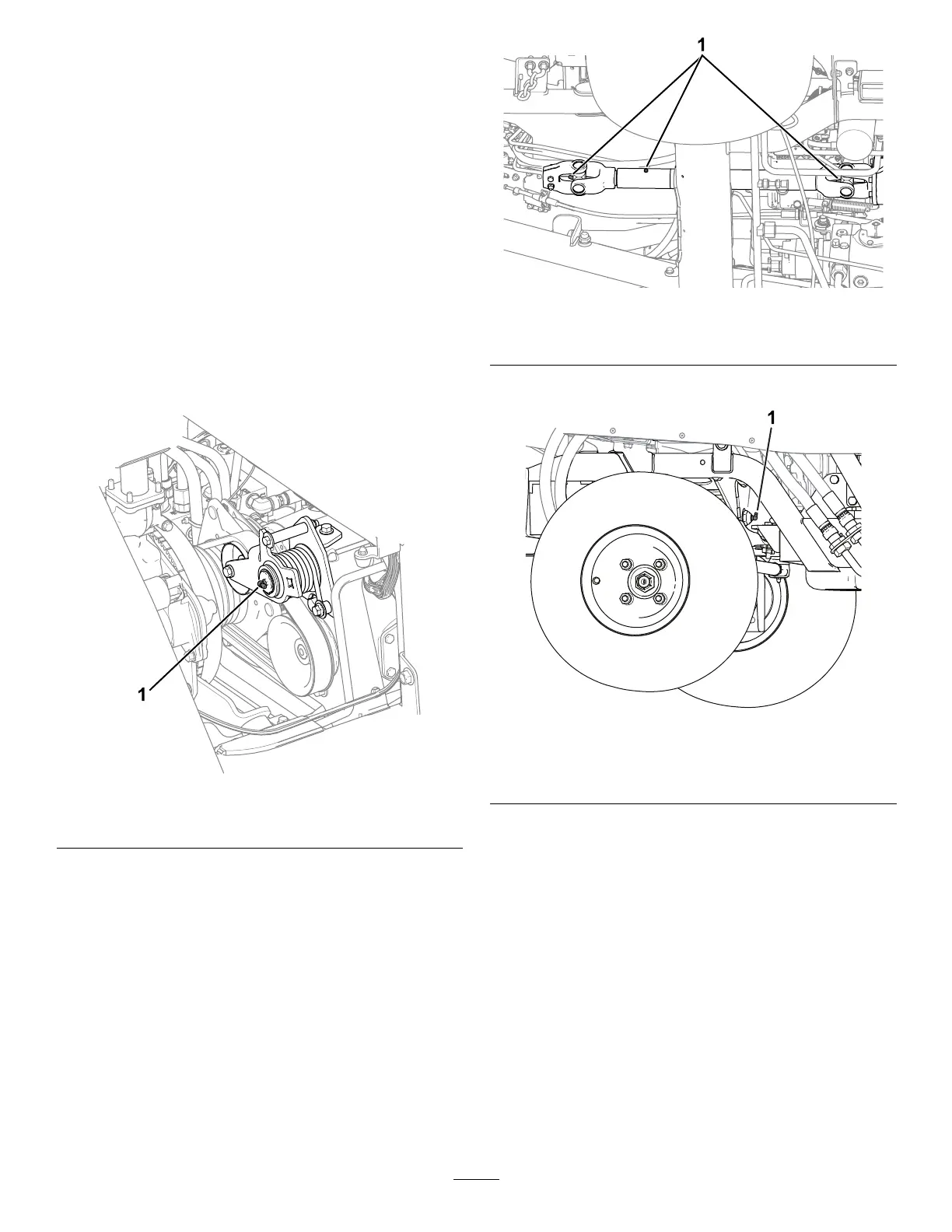

•Idlerarm(Figure40)
g300631
Figure40
1.Idlerarm
•PTOdriveshaft(Figure41)
Important:Greasethedriveshaftbeforeeach
useordaily.
g303694
Figure41
1.Greasettings
•Axlepivotpin(Figure42)
g308668
Figure42
1.Axlepivotpin
•Frontofthemachine(Figure43):
–Attachmentpinjoints(2)
–Lift-cylinderbushings(2)
–Lift-armpinjoints(2)
42
