Toro Groundsmaster 3310 Series - Raising the Hood

RaisingtheRearoftheMachine
Important:Ensurethatnocablesorhydraulic
componentsarebetweenthejackandtheframe.

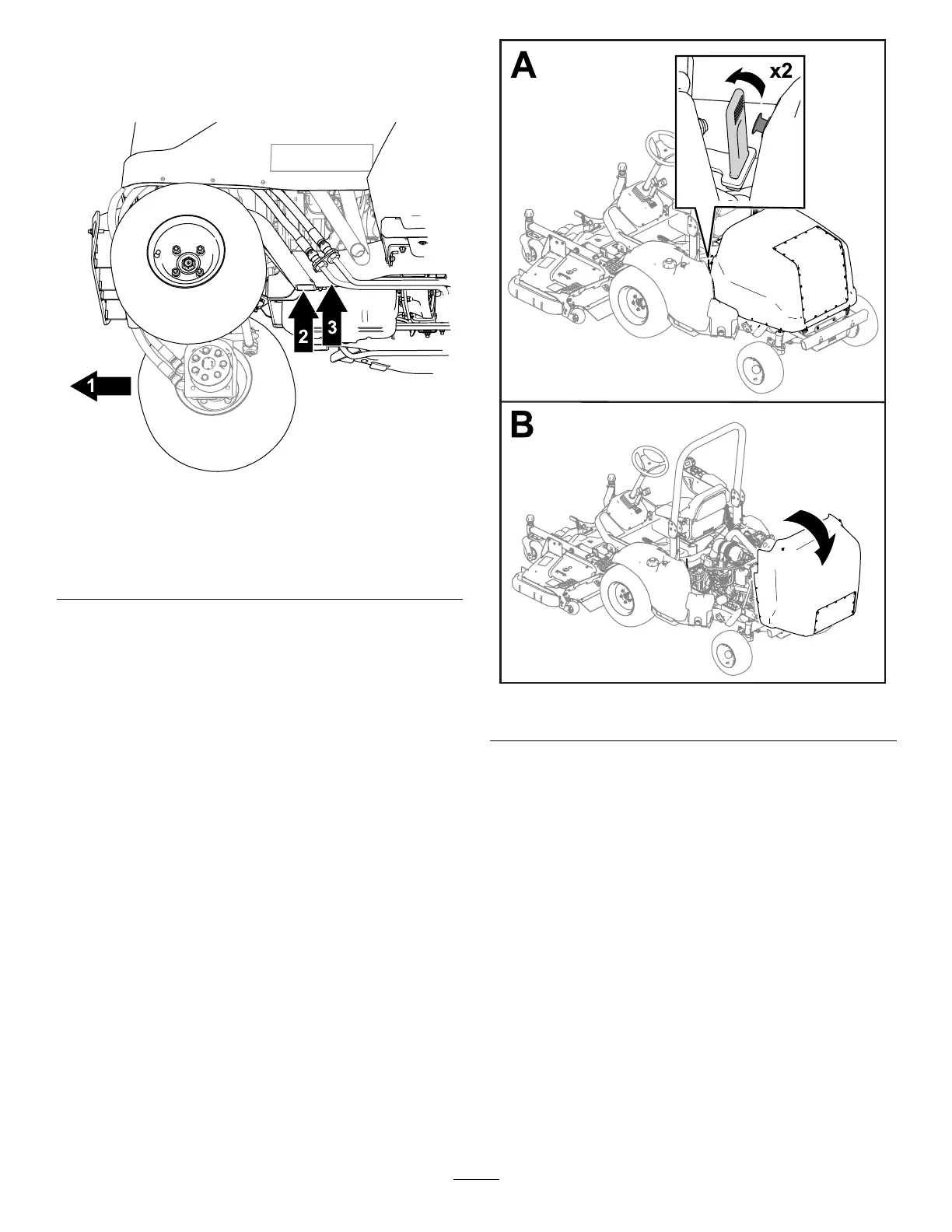

g299730
Figure38
1.Rearofthemachine
3.Rearjackstand
point—frametube
2.Rearjackingpoint—frame
tube
1.Chockthe2frontwheelswithchockstoprevent
themachinefrommoving.
2.Positionthejacksecurelyunderthedesired
jackingpoint.
Important:4-wheel-drivemachineshave
hydrauliclinesthatrunclosetotheframe.
Ensurethatyourjackispositionedsothat
thehydrauliclinesarenotdamagedwhile
themachineisraised.
3.Afterraisingthefrontofthemachine,usean
appropriatejackstandunderthemachineframe
tosupportthemachine.
RaisingtheHood
1.Releasethestrapsfromeachsideofthe
machine(Figure39).
g285428
Figure39
2.Raisethehood(Figure39).
Note:Ifyourmachineisequippedwithahoodlock,
useakeytounlockandraisethehood.
