g285509

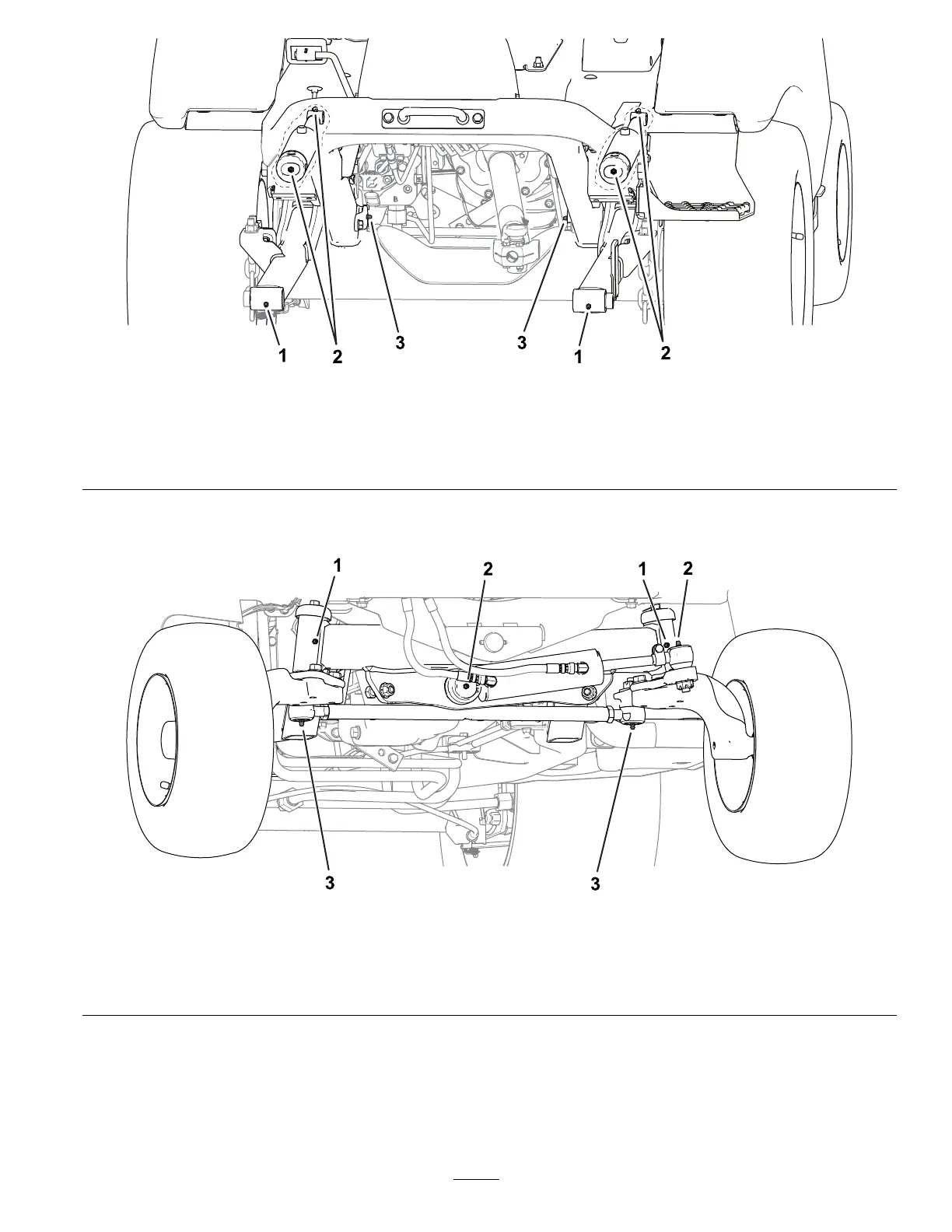

Figure43
Frontofthemachine
1.Attachmentpinjoints
3.Lift-armpinjoints
2.Lift-cylinderbushings
•Rearofthemachine(Figure44):
–Hydraulic-cylinderballjoint(2)
–Axlespindlehubs(2)
–Tie-rodends(2)
g285510
Figure44
Rearofthemachine(bumperremoved)
1.Axlespindlehubs3.Tie-rodends
2.Steering-cylinderballjoint
43
