Groundsmaster 4300--DPage 3 -- 10Kubota Diesel Engine
Radiator

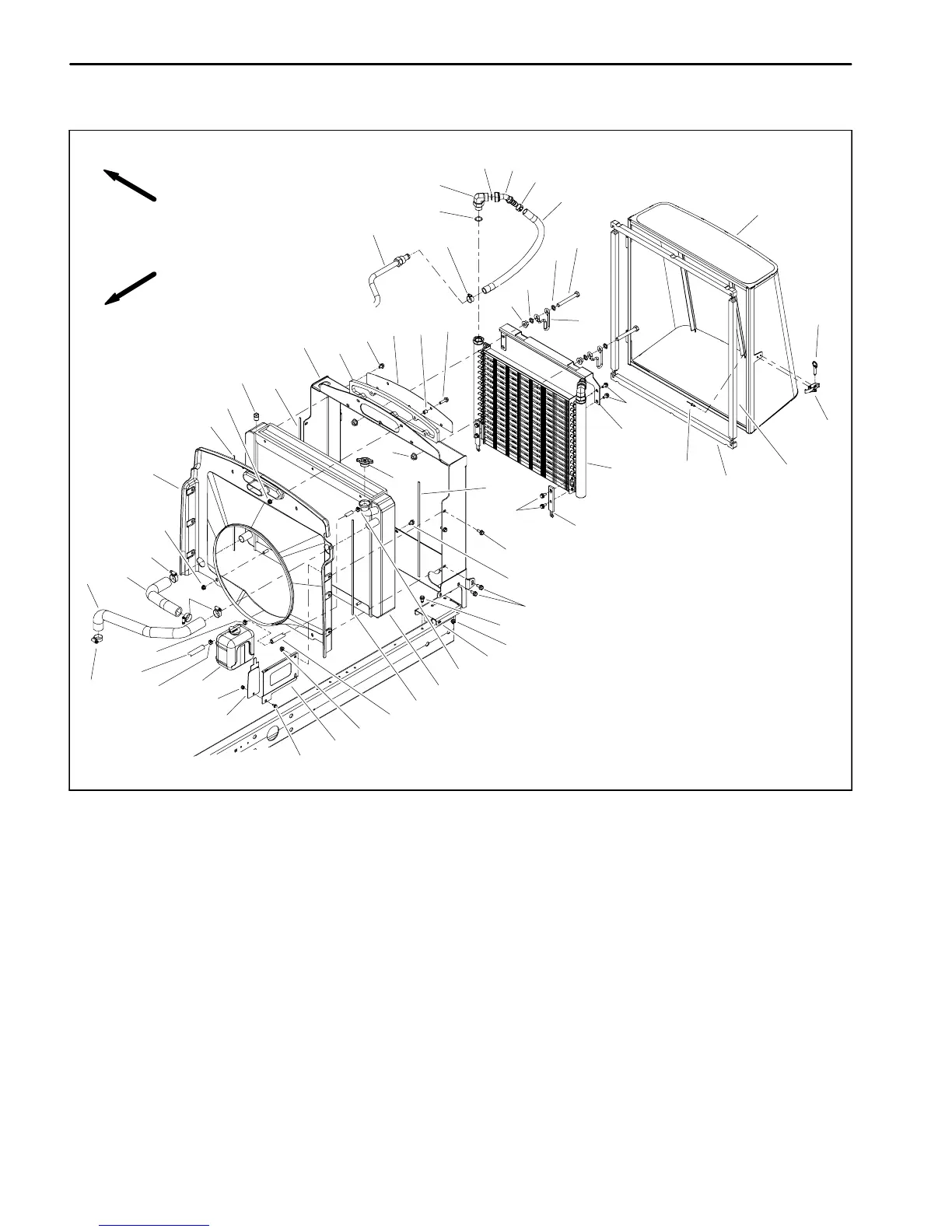

Figure 8
1. Overflow bottle
2. Hose clamp (3 used)
3. Hose
4. Foam seal (2 used)
5. Foam seal (4 used)
6. Mounting bracket (2 used)
7. Oil cooler
8. Pipe plug
9. Hydraulic fitting (2 used)
10. Hose clamp (4 used)
11. Foam seal (2 used)
12. Flange nut (4 used)
13. Flange nut (17 used)
14. Oil cooler mount plate (2 used)
15. Flange head screw (6 used)
16. Hose clamp (4 used)
17. Flange head screw (8 used)
18. Clamp (2 used)
19. Cap screw (2 used)
20. Washer (4 used)
21. Radiator
22. Radiator frame
23. Reservoir bracket
24. Reservoir bracket
25. Upper radiator hose
26. Lower radiator hose
27. Fan shroud
28. Hydraulic hose (2 used)
29. Rivet (2 used)
30. Flange head screw (10 used)
31. Draw latch
32. Washer head screw (6 used)
33. Flange head screw
34. Lock nut
35. O--ring
36. Screen
37. Intake screen
38. Hose
39. Oil cooler bracket
40. O--ring
41. Hydraulic tube
42. Foam seal
43. Spacer (5 used)
44. Flange head screw (5 used)
45. Hydraulic fitting (2 used)
46. Pin
47. Radiator cap
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
2
16
20
12
5
5
5
13
10
10
13
13
31
32
33
34
35
36
37
38
39
40
30
17
41
42
43
44
45
46
15
47
2
To Next Page
