Toro Lawn-boy - Reinstalling External Components

45
ENGINE

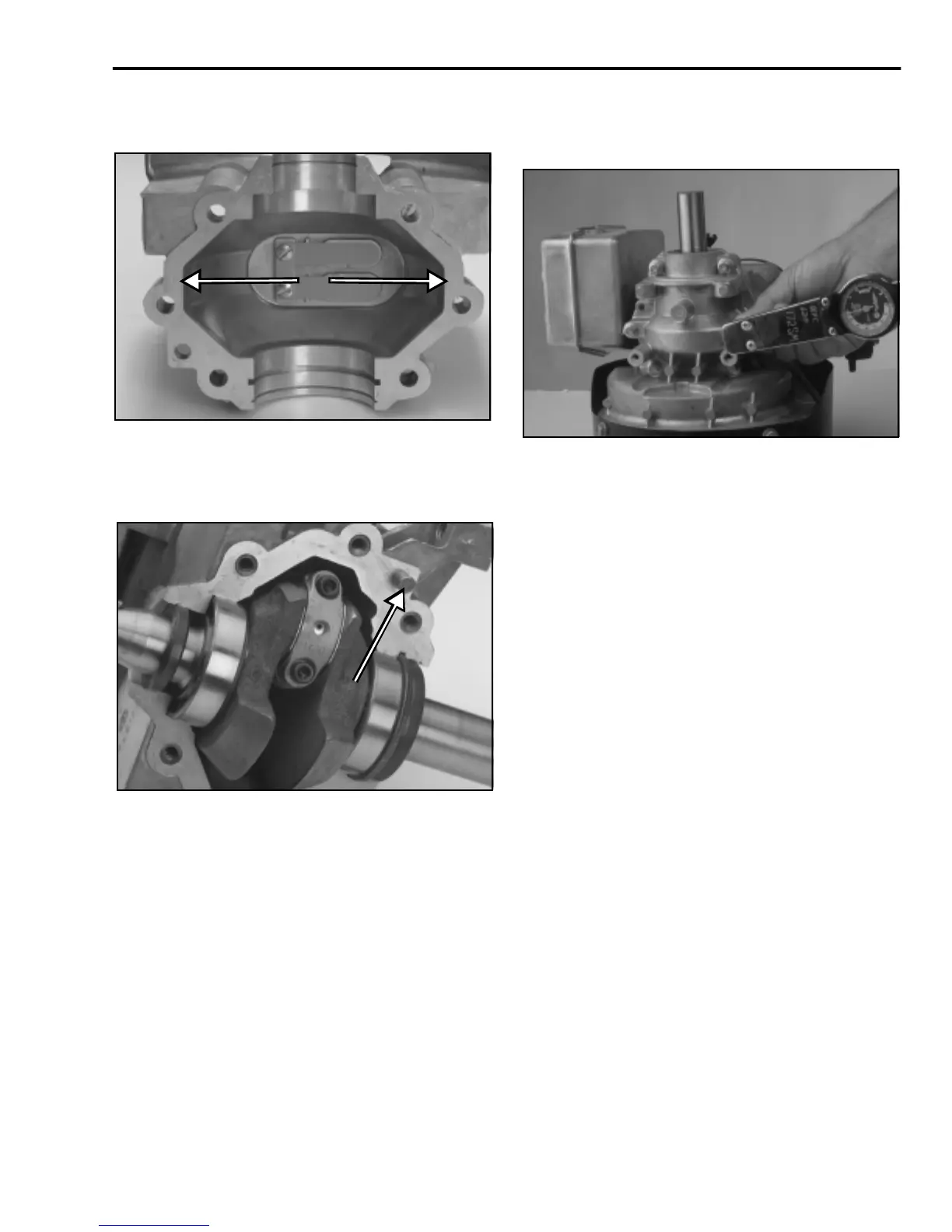

7. Apply Loctite 515
g
asket maker very thinly to the
crankcase cover sealin
g
surface (A), bein
g
careful
not to
g
et sealant in bearin
g
s. (See Fi
g
ure 81.)
Fi
g
ure 81
0720-018
8. Carefully ali
g
n the two crankcase halves usin
g
the
ali
g
nment pin (A) and its matchin
g
hole. Press the
two halves to
g
ether. (See Fi
g
ure 82.)
Fi
g
ure 82
0720-015
9. Ti
g
hten the screws to specifications, ti
g
htenin
g
only 20 in. lbs. (2.26 Nm) increments at a time
while ti
g
htenin
g
modified (X) pattern. (See Fi
g
ure
83.)
Fi
g
ure 83
0891-005
Reinstalling External Components
10. Reattach the flywheel brake system.
11. Clean the crankshaft and flywheel hub with alcohol
and install flywheel.
12. Install carburetor and
g
overnor assembly.
13. Install starter and shroud assembly and starter
handle.
14. Reconnect fuel lines and electrical system leads.
15. Install CD pack and set air
g
ap. (See I
g
nition
System on pa
g
e 31.
16. Test run en
g
ine.
