ControllingthePositionof
theIndividualCuttingUnits
Usethe3lift-controlswitchestoraiseorlowerthe
cuttingunitsindependently.
LoweringtheCuttingUnit
1.Pressthecutting-unit-driveswitchtothecut
position.
2.Pressthelift-controlswitchforwardandrelease.
Note:Thecuttingunitengageswhenitis
approximately150mm(6inches)aboveground
level.Thecuttingunitisin‘oat’mode,and
followsthegroundcontours.
Note:Thelift-controlswitchautomatically
returnstothe(NEUTRAL)positionwhenyou
releaseit.

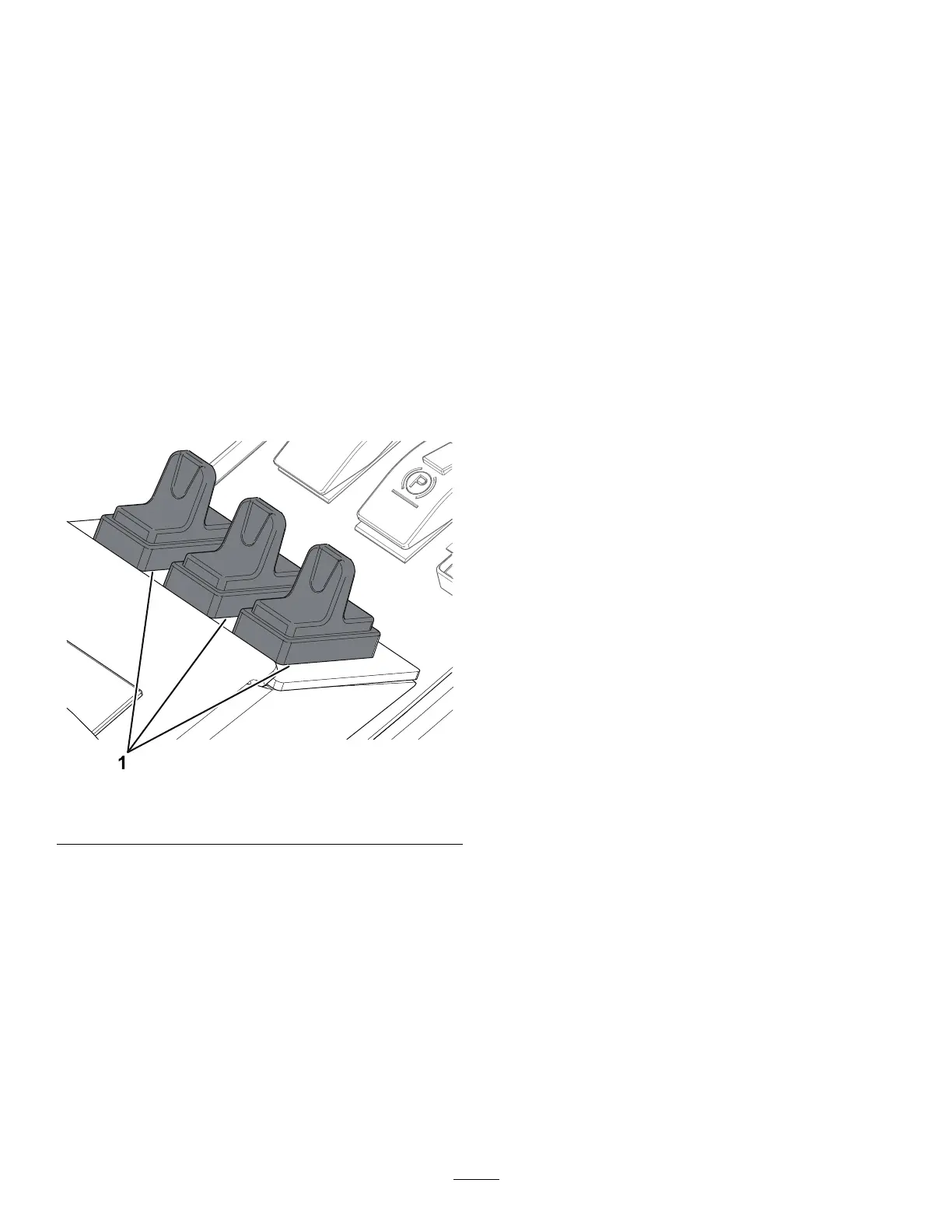

g287651
Figure29
1.Lift-controlswitches
RaisingtheCuttingUnit
1.Pullandholdthelift-controlswitch.
2.Releasethelift-controlswitcheswhenthecutting
unitsareattheneededheight.
Note:Thelift-controlswitchesautomaticallyreturnto
the(NEUTRAL)positionwhenyoureleaseitandthe
cuttingunitarmshydraulicallylockintoposition.
CuttingUnitLimited-LiftPosition
LimitingCuttingUnitLiftWhenDriving
Forward
Note:Thelimitedliftfunctionfordrivingforwardis
enabledbydefault.
•Whiledrivingforward,momentarilypullthe
lift-controlswitch(s).
Note:Thecuttingunit(s)shutsoffanditraises
approximately150mm(6inches)aboveground
level.
•Thelimitedliftfunctionshutsoffwhenthecutting
unitisloweredandrunning.
LimitingCuttingUnitLiftWhenDriving
Backward
Note:Youmustenablethelimited-liftfunctioninthe
InfoCentertoautomaticallyliftthecuttingunitswhen
drivingbackward.
•Whenthelimited-liftfunctionisenabled,driving
themachinebackwardcausesallcuttingunits
raisetothelimited-liftposition.
Note:Thecuttingunit(s)raisesapproximately
150mm(6inches)abovegroundlevel.
Important:Thecuttingunitscontinuetorun
whileusinglimitedliftanddrivingthemachine
backward.
•Drivingthemachineforwardagaincausesthe
cuttingunitlowertotheoatposition.
UsingtheCutting-UnitTurnaround
Feature
Note:Youmustenabletheturnaroundfeaturefor
thecenterlift-controlswitchinthesettingsmenuof
theInfoCenter.
•Momentarilypullthelift-controlswitchforthe
centercuttingunittoraiseallcuttingunitstothe
limitedliftposition.
•Momentarilypushdownthelift-controlswitchfor
thecentercuttingunittolowerallcuttingunitsto
theoatposition.
AdjustingtheCuttingUnit
Auto-LimitedLift
Note:Youenablethecutting-unitAutoLimitedLift
featureinthesettingsmenuoftheInfoCenter.
•Manuallimitedliftusesthe3lift-controlswitches,
andisalwaysavailableregardlessofauto-limited
liftsettingintheInfoCenter.
