Locating
the
Lift
Points
Note:
Use
jack
stands
to
support
the
machine
when
you
lift
it.
W
ARNING
Mechanical
or
hydraulic
jacks
may
fail
to
support
the
machine
and
cause
serious
injury
.
Use
jack
stands
when
supporting
the
machine.
•
Front—under
the
front
arm
mount
•
Rear—axle
tube
on
the
rear
axle

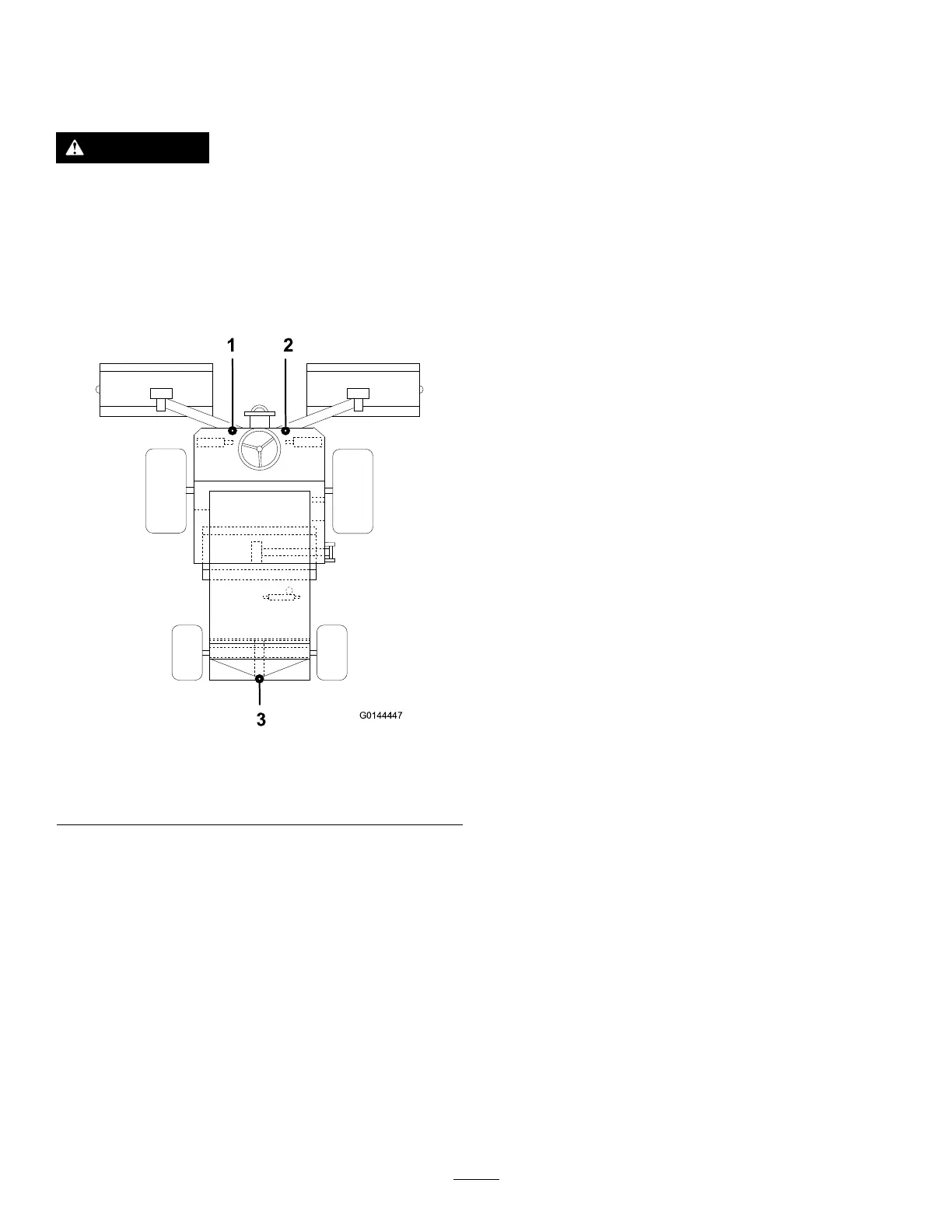

g014447
Figure
49
1.
Front
left
lift
point
3.
Rear
lift
point
2.
Front
right
lift
point
41
40
42
