Engine

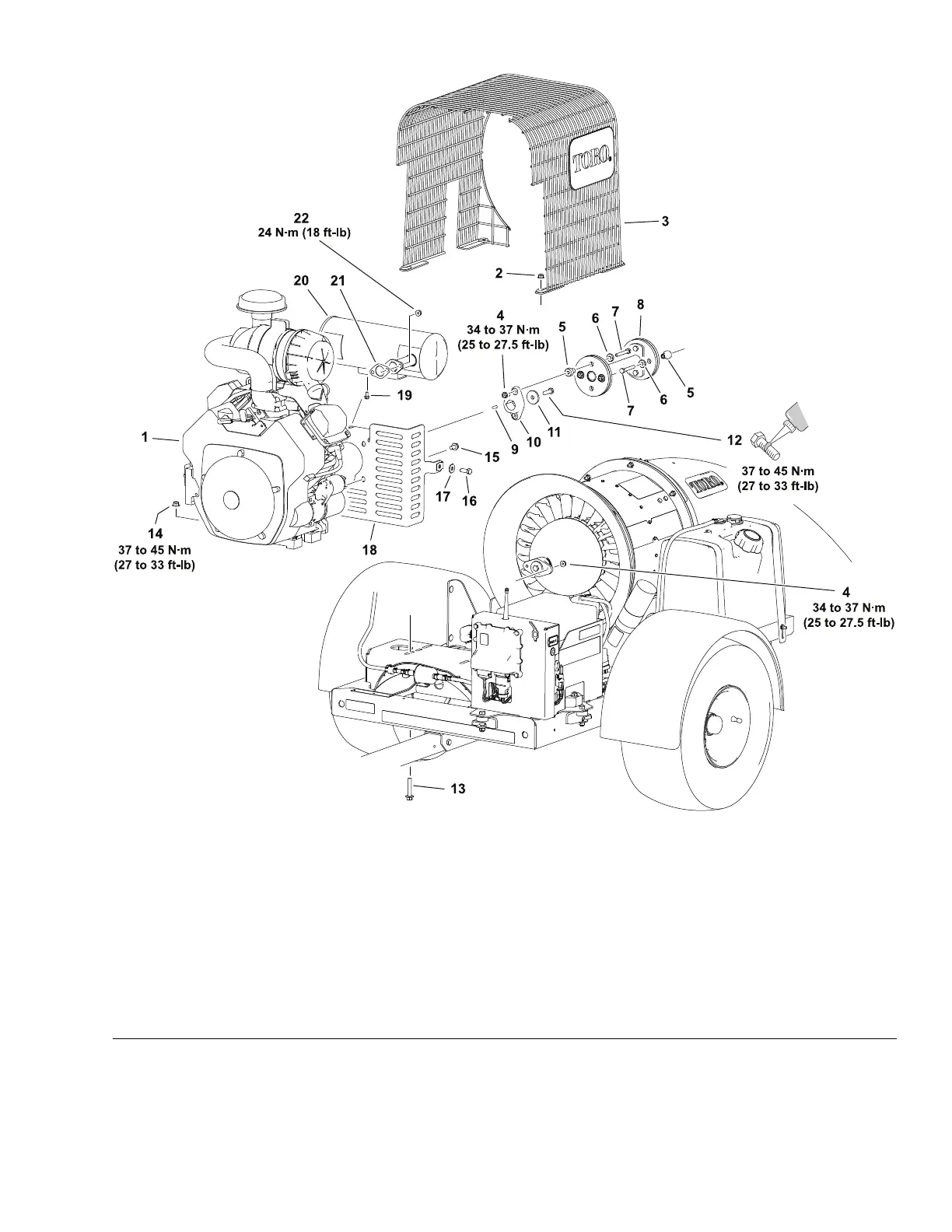

g277842
Figure11
1.Engine
9.Woodruffkey17.Hardenedwasher(2each)
2.Flangenut(4each)10.Engineshafthub
18.Mufermount
3.T opgrill11.Washer
19.Flange-headscrew(2each)
4.Flangenut(4each)12.Capscrew20.Mufer
5.Rubbercouplingspacer(4each)13.Flange-headscrew(4each)21.Gasket(2each)
6.Washer(4each)14.Flangenut(4each)22.Flangenut(4each)
7.Capscrew(4each)15.Flange-headscrew(4each)
8.Driveshaftassembly16.Capscrew(2each)
RemovingtheEngine
RefertoFigure11forthisprocedure.
