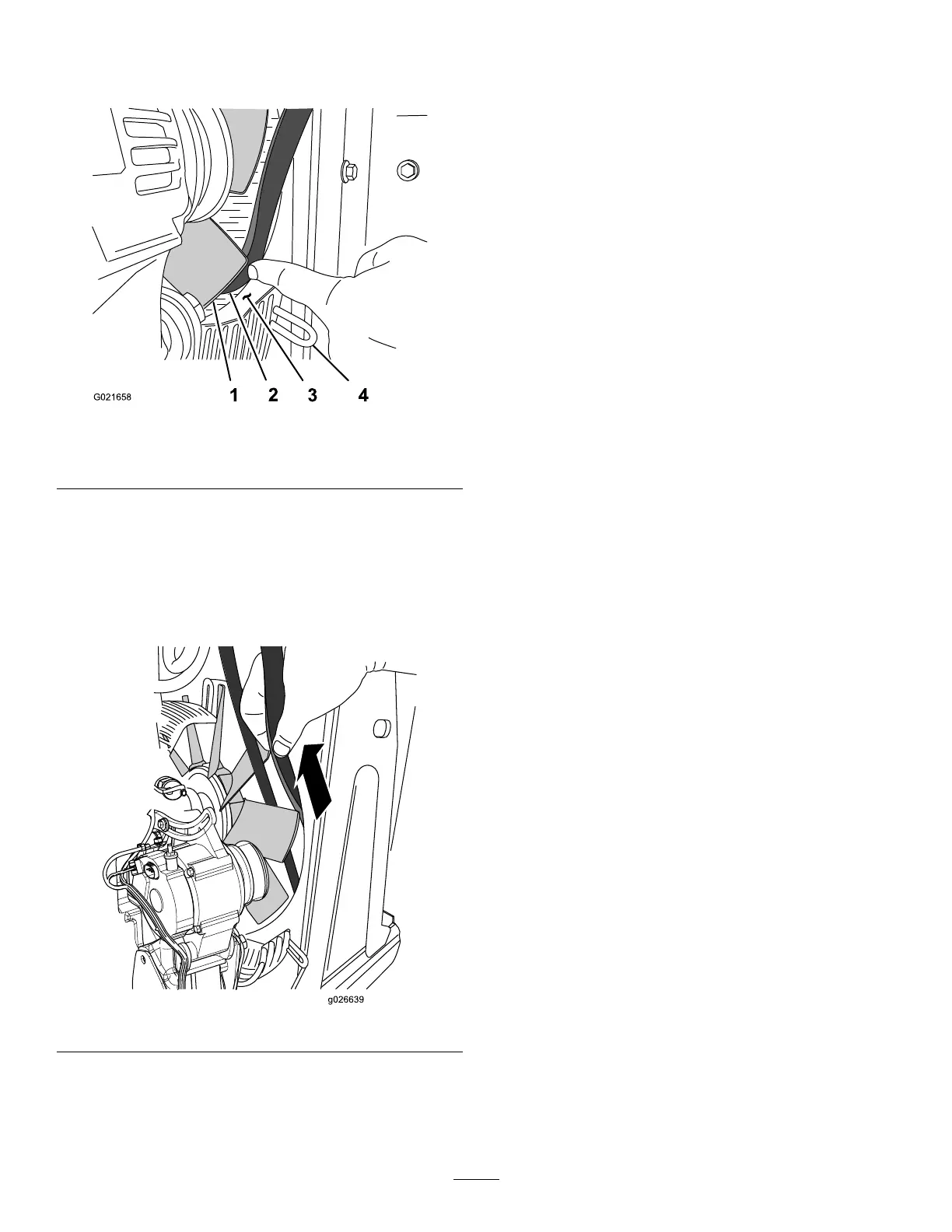

9.Atthe4o’clockpositionofthefanshroud,alignthe

beltbetweenthetipofthefanbladeandtheopening

intheshroud(Figure87).

G021658

Figure87

1.Fanblade3.Fanshroud

2.Belt4.Fanguard

10.Movethebelttotheforwardsideofthefanblade.

11.Rotatethefancounterclockwiseandrepeatsteps9and

10fortheremainingfanblades.

12.Alignthebeltbetween2ofthefanblades,then

carefullypullthebeltrearwardandupuntilyoucan

removeitfromthemachine(Figure88).

Figure88

InstallingtheBelt

1.Alignthebeltbetween2ofthefanblades,andcarefully

pushthebeltforwardanddownuntilitisinfrontof

thefan(Figure88).

2.Moveafanbladetothe4o’clockposition.

3.Alignthebeltbetweenthetipofthefanbladeandthe

openingintheshroud(Figure87).

4.Movethebeltrearwardandpastthetipofthefanblade.

5.Repeatsteps2through4fortheremainingfanblades.

6.Alignthebeltinthegroovesofthealternator,thefan,

andthecrankshaftpulleys.

7.Rotatethefanguardclockwisearoundthedriveshaft

ofthefanuntiltheopeningintheguardisatthe6

o’clockposition(Figure85).

8.Securethefanguardtothefanshroud(Figure85).

9.Adjustthetensionofthebelt;refertoAdjustingthe

TensionoftheBelt(page58).

Note:Ensurethatthebeltisalignedinthegroovesof

thepulleys.
