Toro TimeCutter SW4200 User Manual

ELECTRICAL
7-6
Toro TimeCutter SW/SWX Service Manual
7

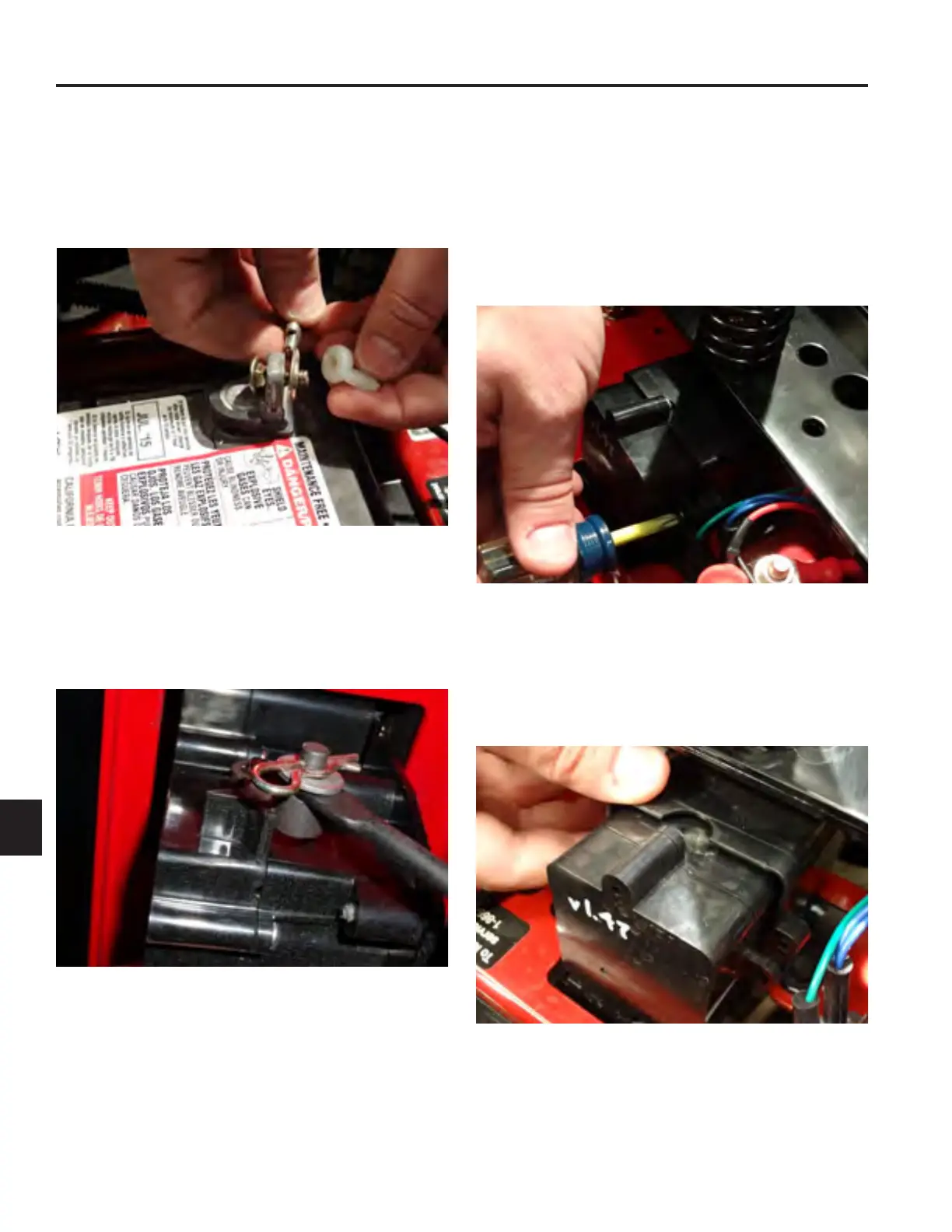

BRAKE MODULE
1. Disconnect the negative (-) terminal from the
battery.
Brake Module Removal
2. Underneath the mower, remove the hair pin and
washer from the module on both sides. Remove
brake rods.
3. Remove the brake module cover screws.
4. Slide the cover back on the harness.

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
