ELECTRICAL
7-7
Toro TimeCutter SW/SWX Service Manual
7
BRAKE MODULE

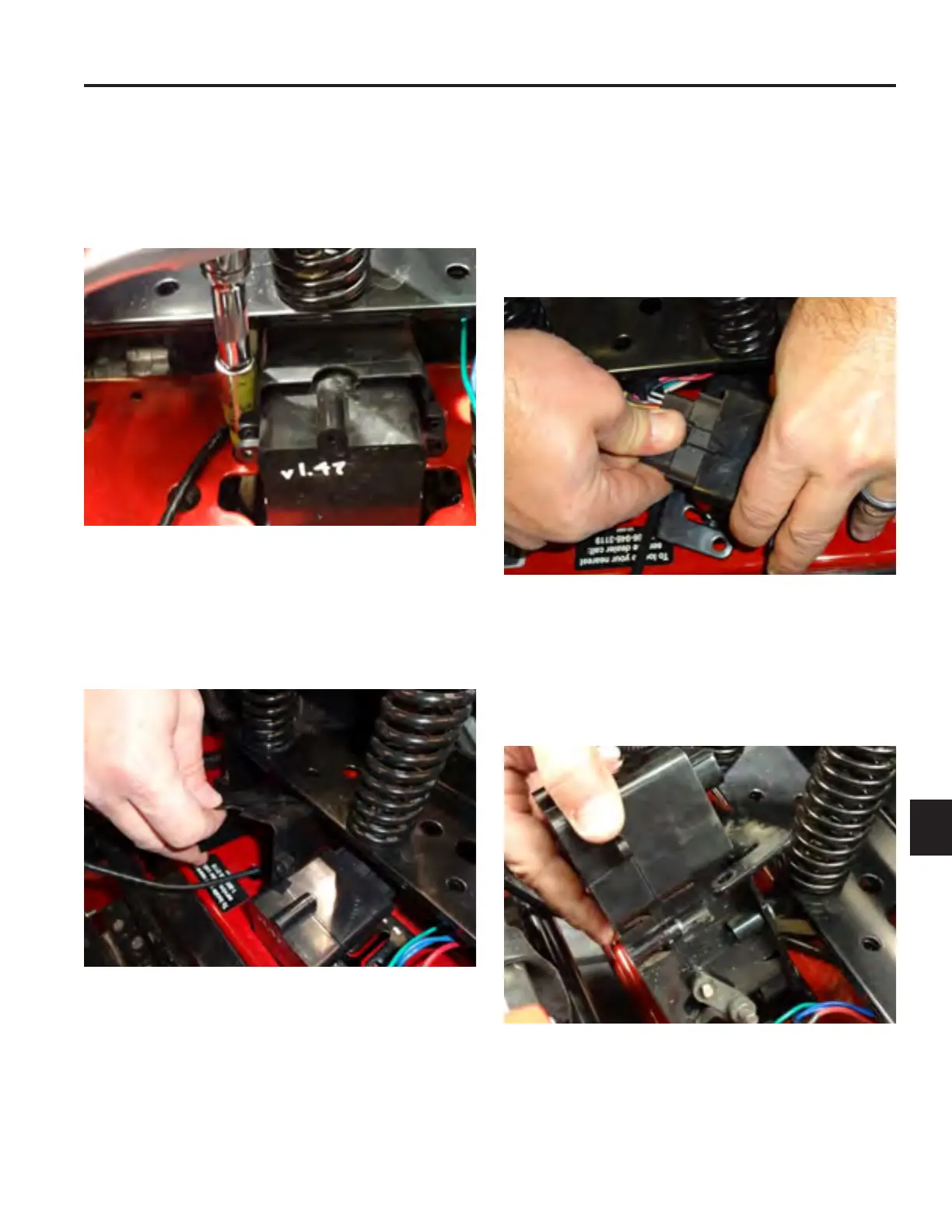

5. Remove the brake module mounting bolts.
6. Remove cover from the module.
7. Remove the harness from the brake control
module by pressing the lock on the harness
connector down and pulling the connector from
the module.
8. Remove the module from the chassis.
9. Remove the mounting bracket from the module.
