CHASSIS
3-30
Toro TimeCutter SW/SWX Service Manual
3

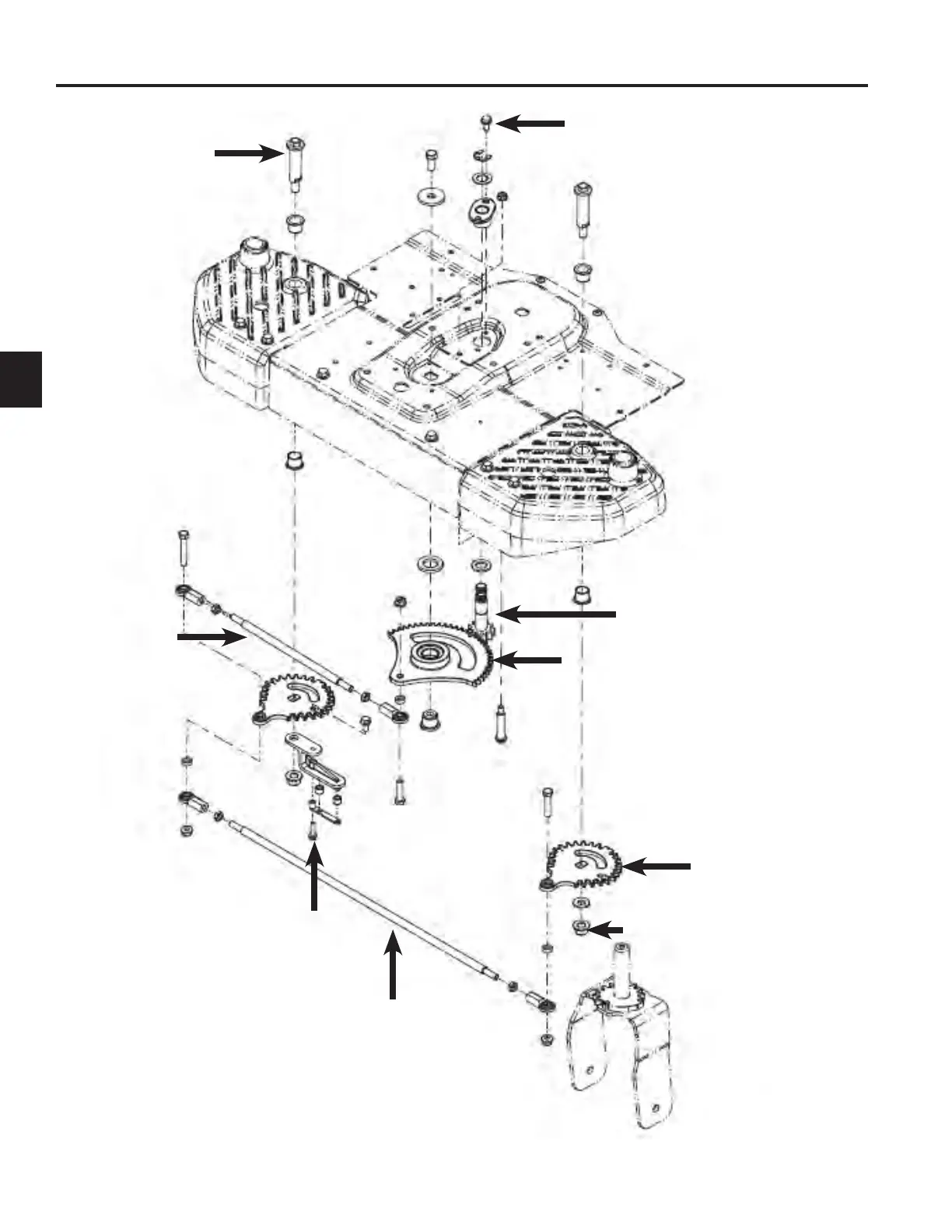

Steering System
Apply Blue Loctite,
torque 45-55 ft-
lbs. (62-76 Nm)
Torque to 150-200 in-lbs. (17-23 Nm)
Lower Steering Shaft
Sector Gear
Wheel Gear
Cross Rod
Torque to 67-83 ft-lbs. (92-115 Nm)
Torque to 80-100 ft-lbs. (9-11 Nm)
Steering Rod
