Toro TimeCutter SW/SWX Service Manual
3
Steering System

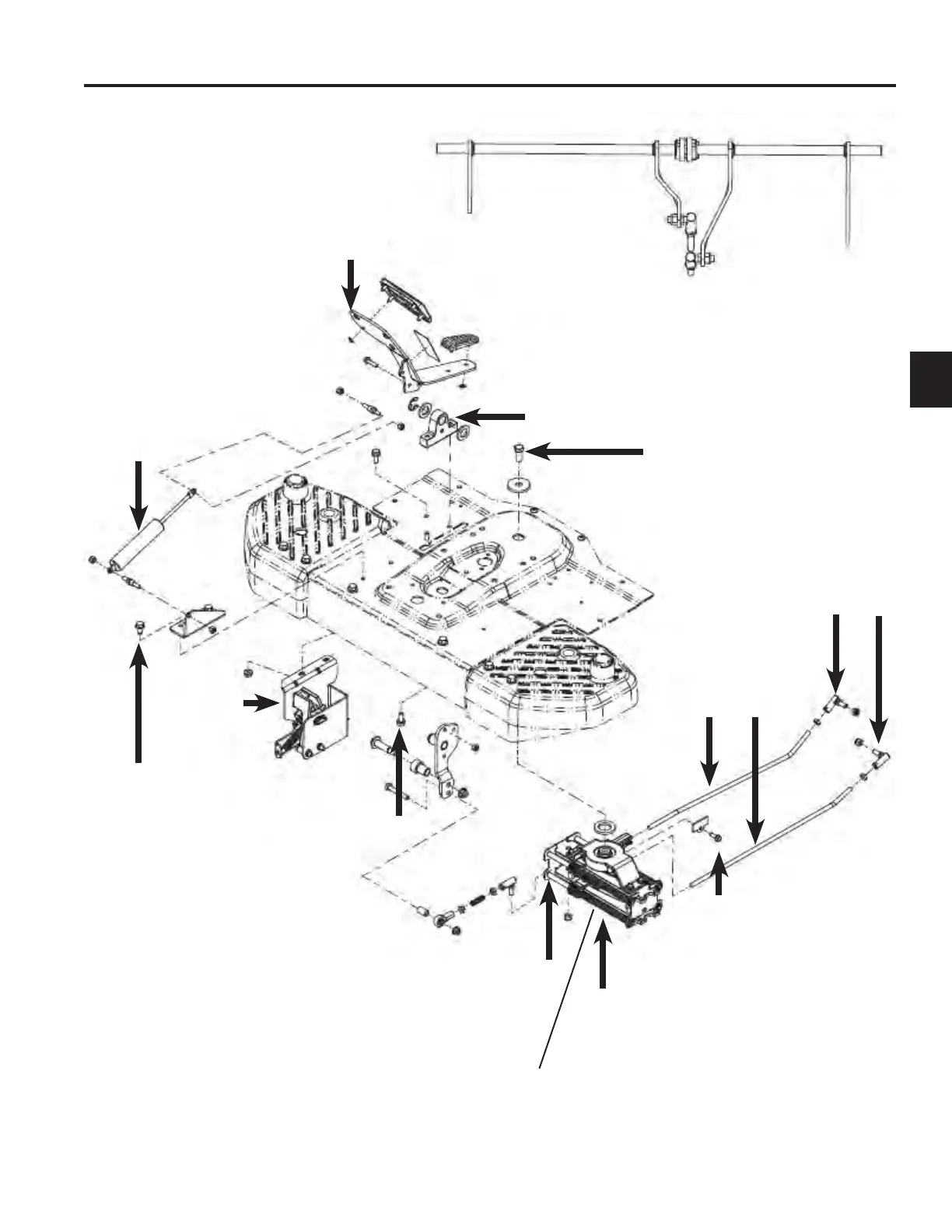

Ball Joint Orientation - Rear View
Apply anti-seize to bore
and thrust surfaces
Torque to 45-55 ft-lbs.
(62-76 Nm)
Hydro Rods
Ball joints to be
threaded on hydro
rods .50 inch from
end
These shafts must
rotate and slide
freely
Speed Control
Asm.
Apply Blue
Loctite
Return
Assembly
Torque to
150-200 in-
lbs. (17-23
Nm)
Damper
Traction Pedal
Torque to 80-100 in-
lbs. (9-11 Nm)
These shafts must rotate
and slide freely
