CHASSIS
3-35
Toro TimeCutter SW/SWX Service Manual
3
STEERING SYSTEM - ALIGNMENT - ZERO TURN TRACTOR

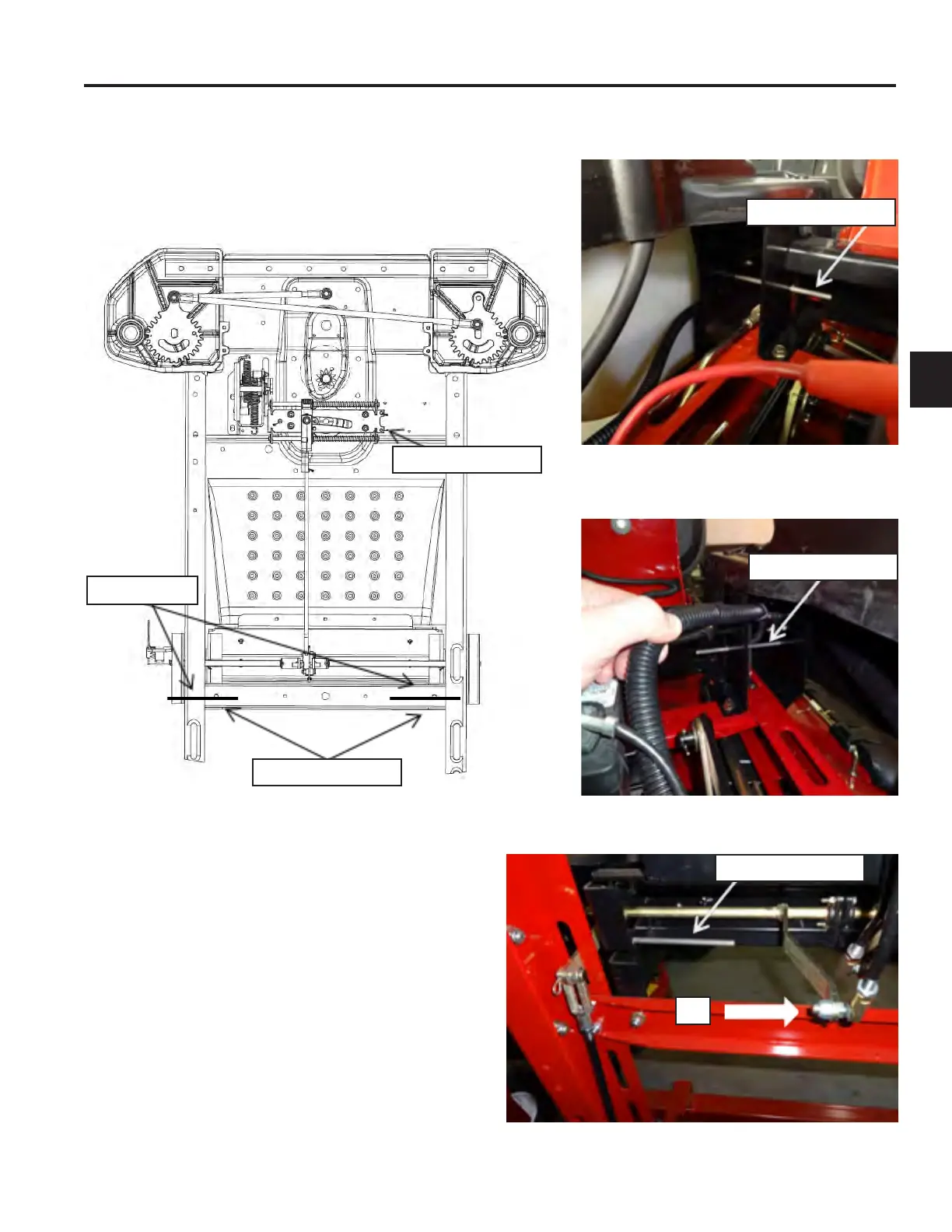

7.Lift up the seat and insert a 1/4 in. dowel pin
through both alignment boles on both sides
of the hydro rod bell cranks. The dowel pins
should touch the bell cranks.
8. If one of the hydro-locking dowel pins does
not insert properly, adjust the length of the
corresponding control rod from the speed
control assembly by removing the nut and
turning the tie rod end (A) until the pin inserts
freely and contacts the bell crank.
1/4 in. Dowel Pin
1/4 in. Dowel Pin
1/4 in. Dowel Pin
A
1/4 in. Dowel Pin
1/4 in. Dowel Pin
Bell Cranks

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
