CHASSIS
3-34
Toro TimeCutter SW/SWX Service Manual
3
STEERING SYSTEM - ALIGNMENT - ZERO TURN TRACTOR

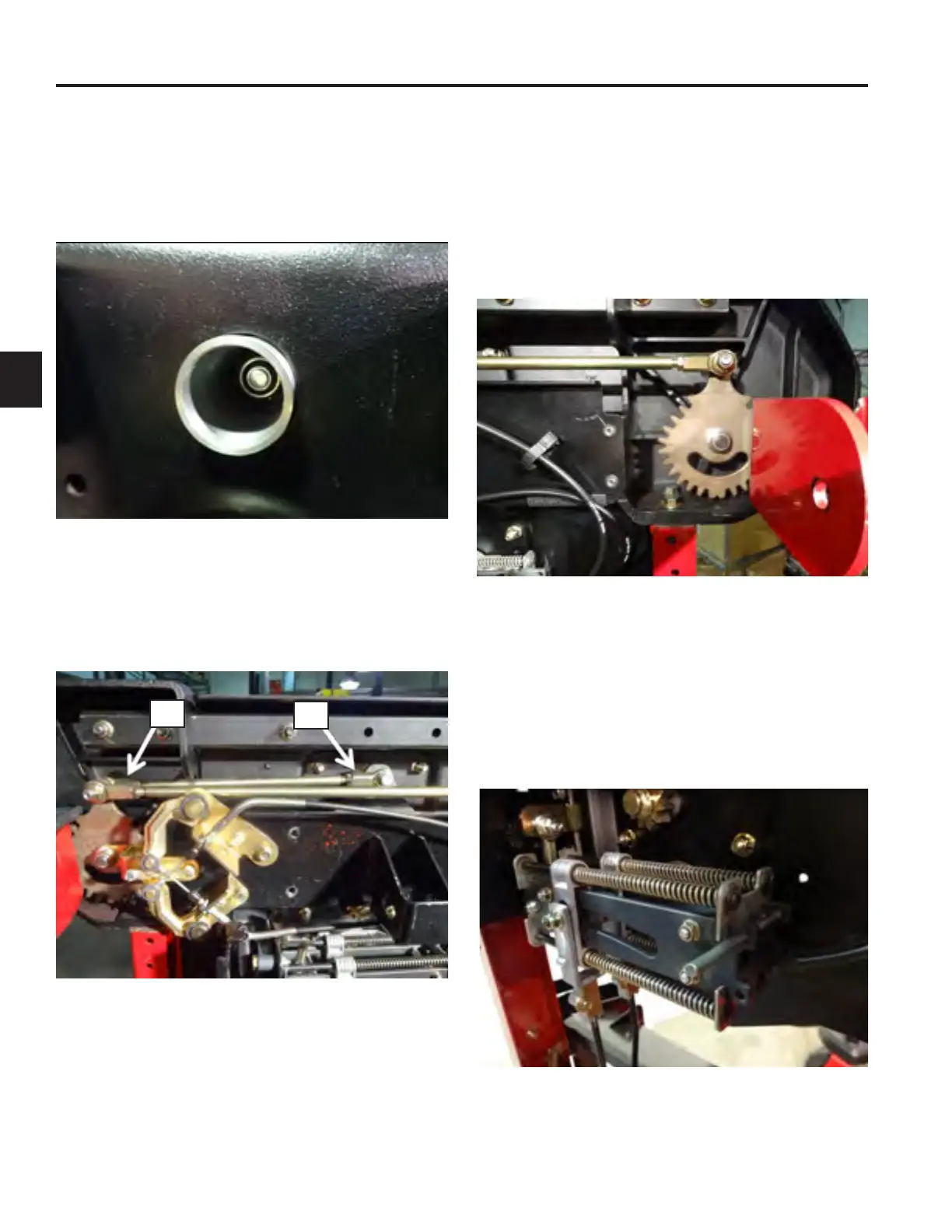

The spacer should surround the nut on the tie rod
and verifying the steering column is straight.
4. If the right side wheel (when sitting on machine)
is not straight, adjust the tie rod ends on the
short tie rod (A) until the wheel is positioned in
a straight forward position.
5. If the left side wheel (when sitting on the
machine) isn’t straight, adjust the tie rod on the
long tie rod (B) until the wheel is positioned in a
straight forward position.
6. Insert on of the 1/4 in. dowel pins through the
holes in the speed control assembly and
through the hole in the frame.
If the pin does NOT t, you will need to install
a pin through the traction pedal and adjust the
tie rod end on the pivot lever assembly. See
steps 3 and 5 in the “Speed Control Assembly”
Service Instruction Sheets.
A
A
