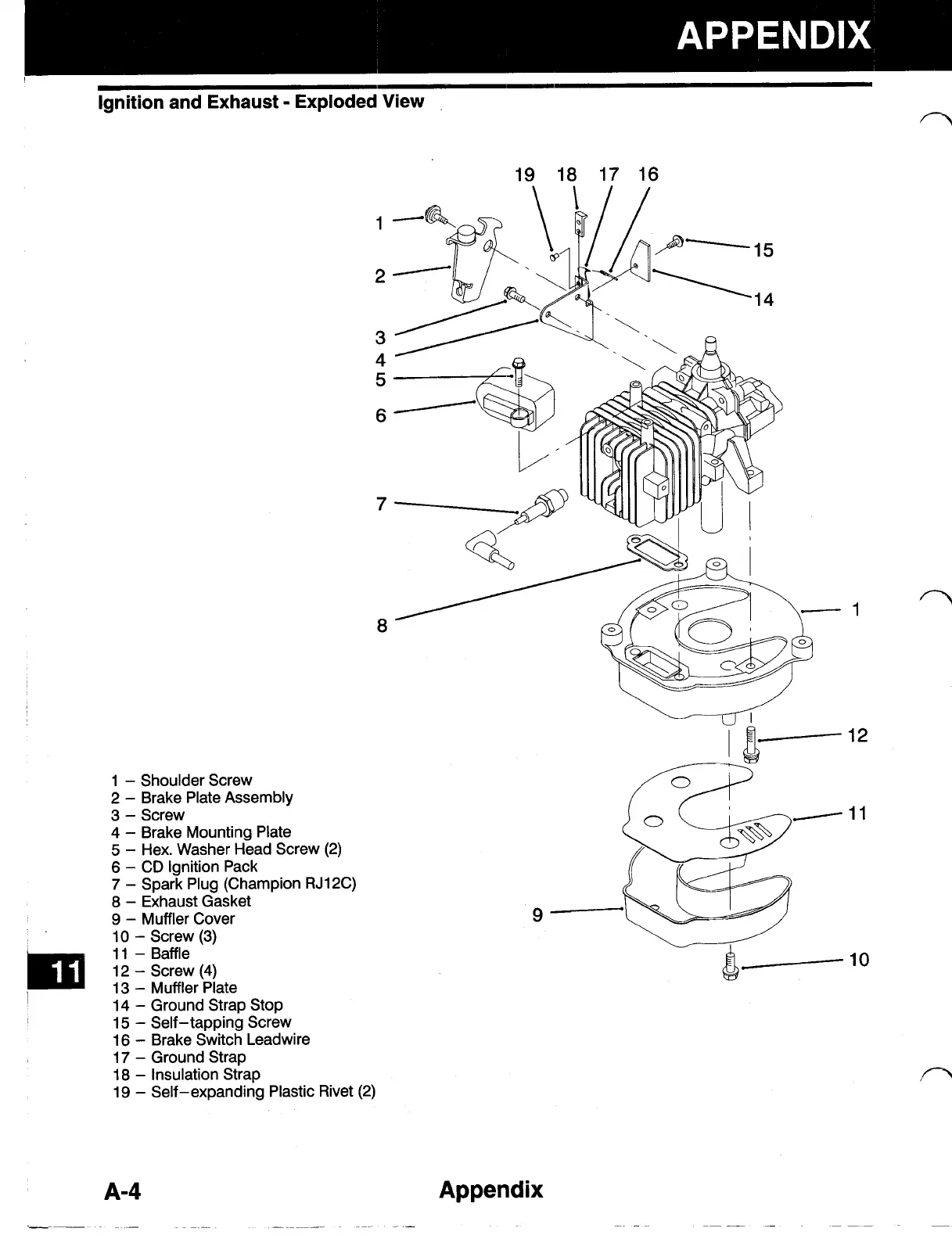

Ignition and Exhaust - Exploded View
19 18 17 16
1 - Shoulder Screw
2
- Brake Plate Assembly
3
- Screw
4 - Brake Mounting Plate
5 - Hex. Washer Head Screw (2)
6
- CD ignition Pack
7
- Spark Plug (Champion RJ12C)
8 - Exhaust Gasket
9
- Muffler Cover
10
- Screw (3)
..
12
- Screw (4)
1 1
- Baffle
13
- Muffler Plate
14
- Ground Strap Stop
15
- Self-tapping Screw
16
- Brake Switch Leadwire
- Ground Strap
18 - Insulation Strap
19
- Self-expanding Plastic Rivet (2)
n
1
12
11
10
