SPECIFICATIONS

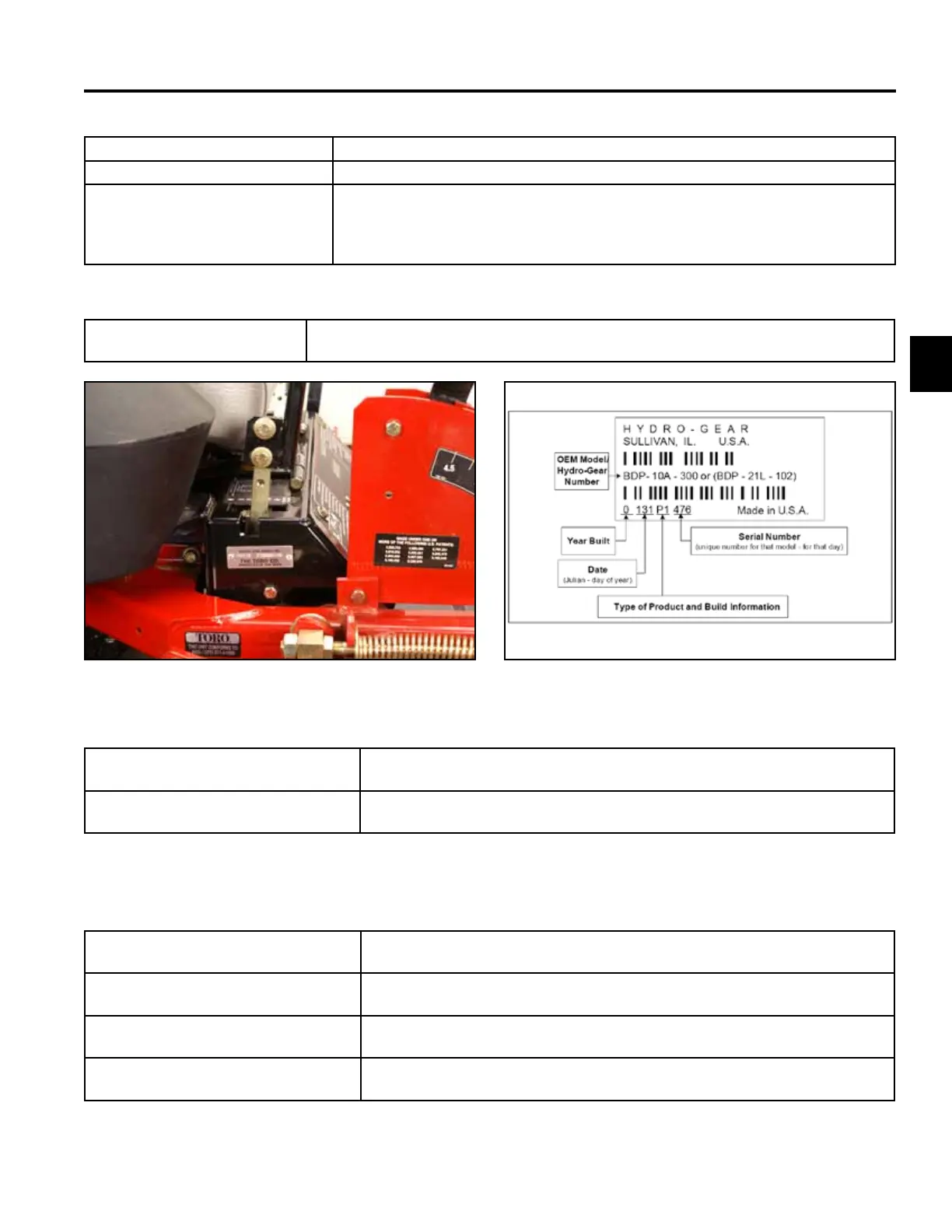

Fig 030 PICT-0046
Model and Serial Number
Location
The unit model and serial number plate is located on the right hand side of the unit,
below the right side motion control lever (Fig. 000).
Engine Model and Serial Number
Identication:
Consult the appropriate engine manufacture’s service literature for the
location and translation of the engine model and serial number information.
Hydrostatic Pumps Model and Serial
Number:
The label (Fig. 000), can be located on the pump housing. It identies the
model and conguration of the BDP pump.
Available Service Manuals / Service Aids
Hydrostatic Pumps: Hydro-Gear BDP-10A/16A/21L – Service and Repair Manual
Form # 492-4789
Wheel Motors: Parker/Ross Wheel Motor Service Manual
Form # 492-4753
Hydraulic Troubleshooting: Interactive hydraulic troubleshooting and failure analysis on compact disk
Form #492-4777
Electrical Troubleshooting: Interactive electrical troubleshooting and wiring diagrams on compact disk
Form #492-9143
Fig 031 conguration
Hydraulic System Oil Capacity: 2.1 quarts (2.0 liters)
Fluid Type: Mobil 1 Extended Performance 15W-50 Synthetic
Fluid Level: Check the uid level while the uid is warm. The uid should be between cold
and hot.
Note: The uid level should be to the top of the hot level of the bafe,
when the uid is hot (Fig. 000 above).

Toro Z Master Z400 Series Specifications

General

Ground Speed (Forward)	Up to 10 mph
Engine Displacement	726cc
Cutting Width	60 inches
Deck Type	Fabricated
Speed Range	0-10 mph
Turning Radius	Zero-turn
