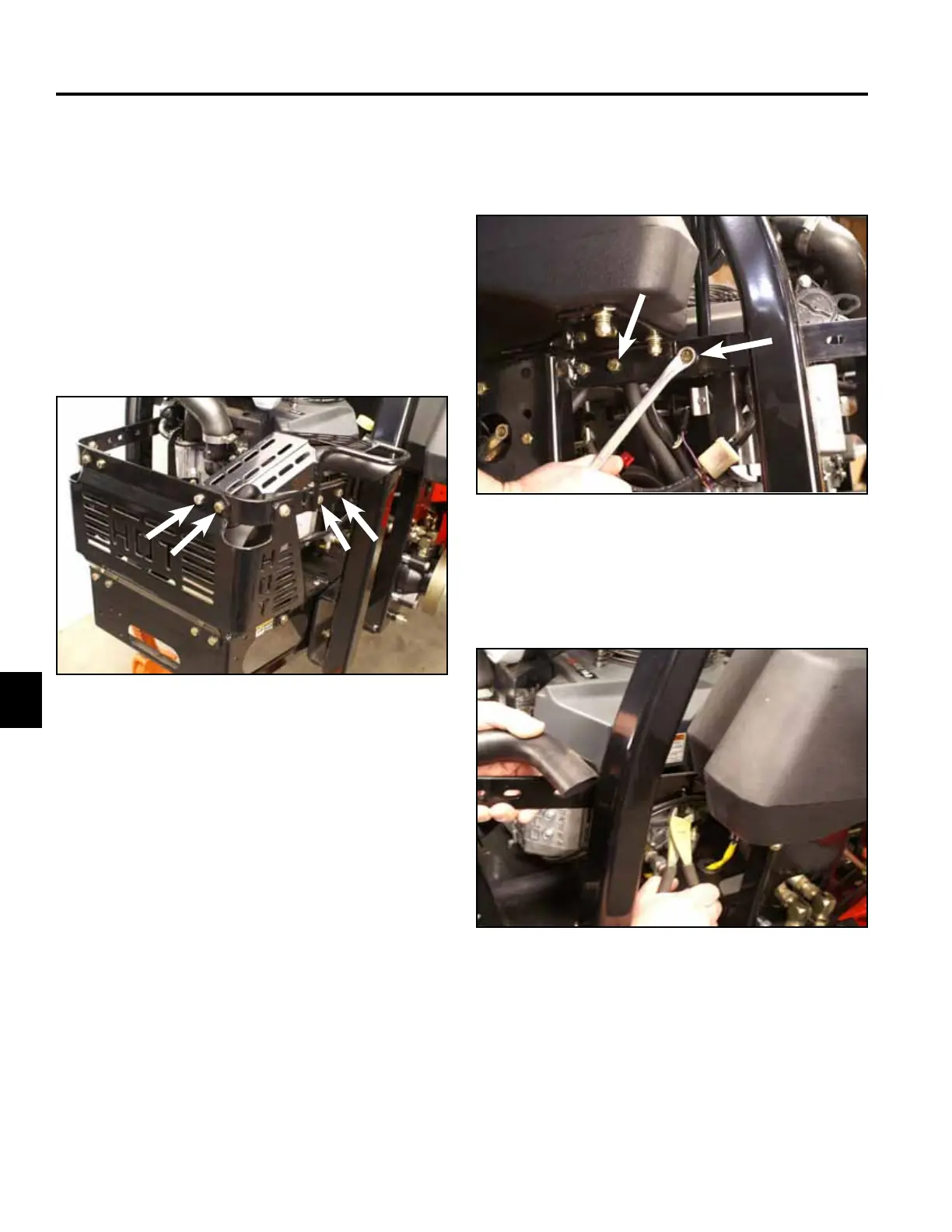

5-34 Z Master Z400 Service Manual
5
ENGINE
5. Remove the plastic tie holding the throttle and choke
cable to the right hand guard strap (Fig. 337).
Fig 337 PICT-0399
Z 100 Series FH580V (KAI) 19 hp
Kawasaki Removal
1. Remove the battery negative cable from the battery.
2. Raise the rear wheels of the machine off the ground
and support frame with jack stands. Remove both
rear wheels.
3. Remove the four bolts and nuts that hold the tailpipe
guardtotherighthandguardstrapandrearmufer
guard (Fig. 335).
Fig 335 PICT-0397
4. Remove the two bolts and nuts holding the hydraulic
oil tank to the guard strap and fuel tank support (Fig.
336).
Fig 336 PICT-0398
