5-18 Z Master Z400 Service Manual
5
ENGINE

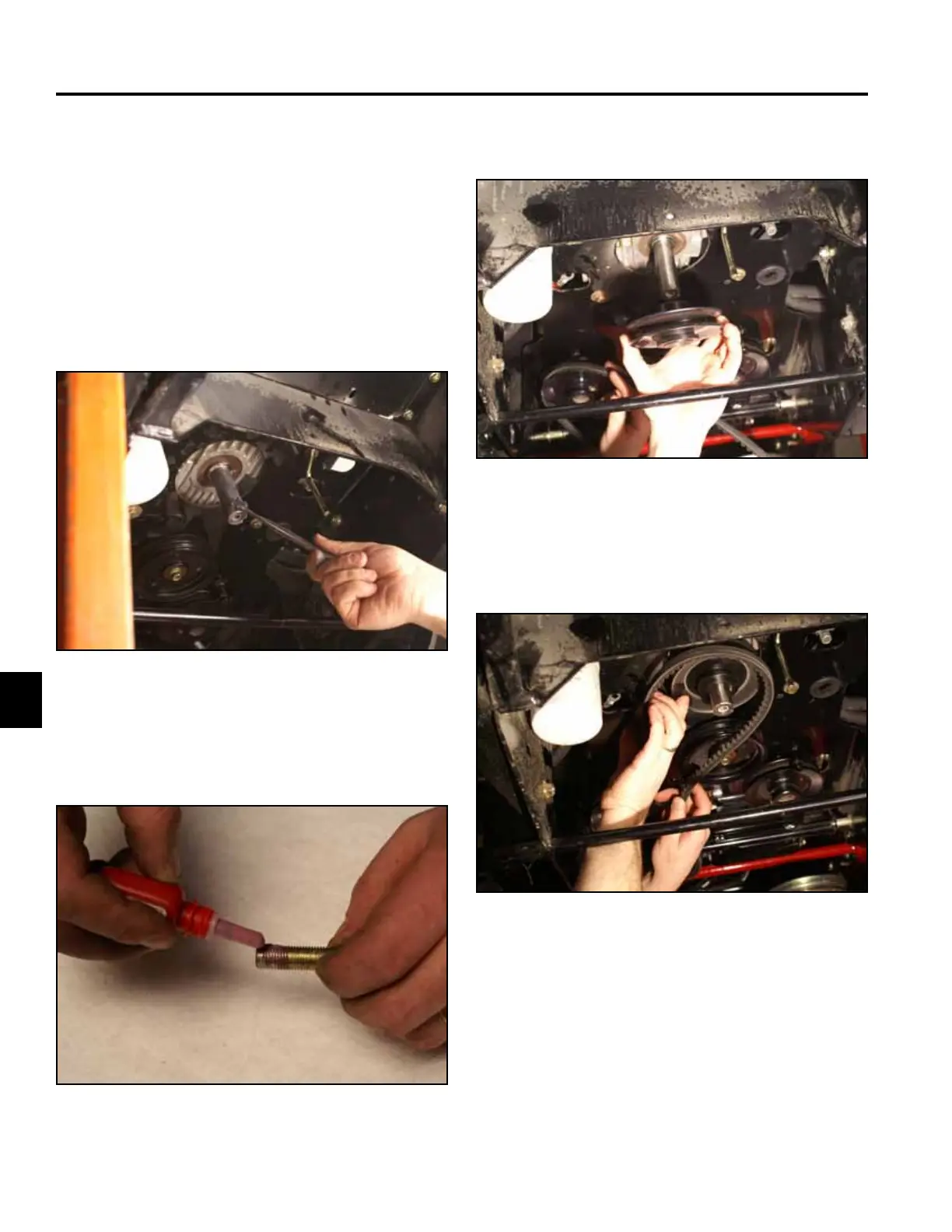

1. Lower the engine onto the frame. Install 4 bolts and
spring washers through the frame and into the base
of the engine. Tighten the bolts (Fig. 000). 0287 left
Note: The 3 ground wires attach to the left rear
engine mounting bolt.
2. Apply anti-seize compound to the engine shaft (Fig.
272).
Fig 272 PICT-0025c
3. Apply a thread-locking compound to the clutch
retainer bolt (Fig. 273).
Fig 273 PICT-0026c
Fig 275 PICT-0017c
5. Install the drive belt onto the engine pulley (Fig.
275).
Fig 274 PICT-0018c
4. Install the engine pulley (Fig. 274).
Kohler V-Twin 20 hp Engine Install
