5-2 Z Master Z400 Service Manual
5

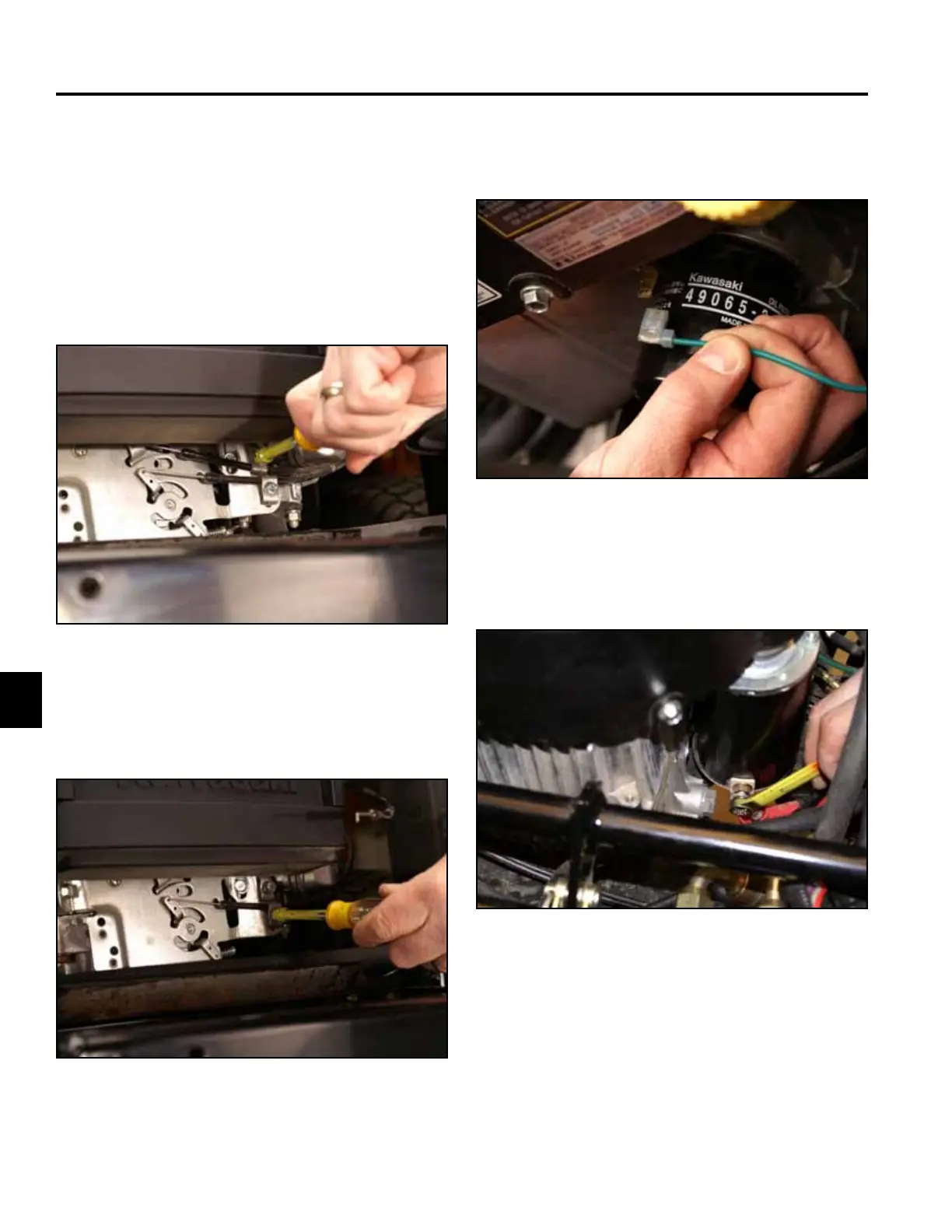

5. Remove the positive (red) wire from the starter (Fig.
213).
Fig 213 PICT-0009c
ENGINE
Kawasaki FH580V 19 hp Engine
Removal
1. Remove the battery negative cable from the battery.
2. Disconnect the choke cable by removing the top
clamp (Fig. 210).
Note: Rear Bumper removed for clarity.
Fig 210 PICT-0003b
Fig 212 PICT-0008c
4. Disconnect the oil pressure switch harness (Fig.
212).
Fig 211 PICT-0004b
3. Disconnect the throttle cable by removing the bottom
clamp (Fig. 211).
