ENGINE

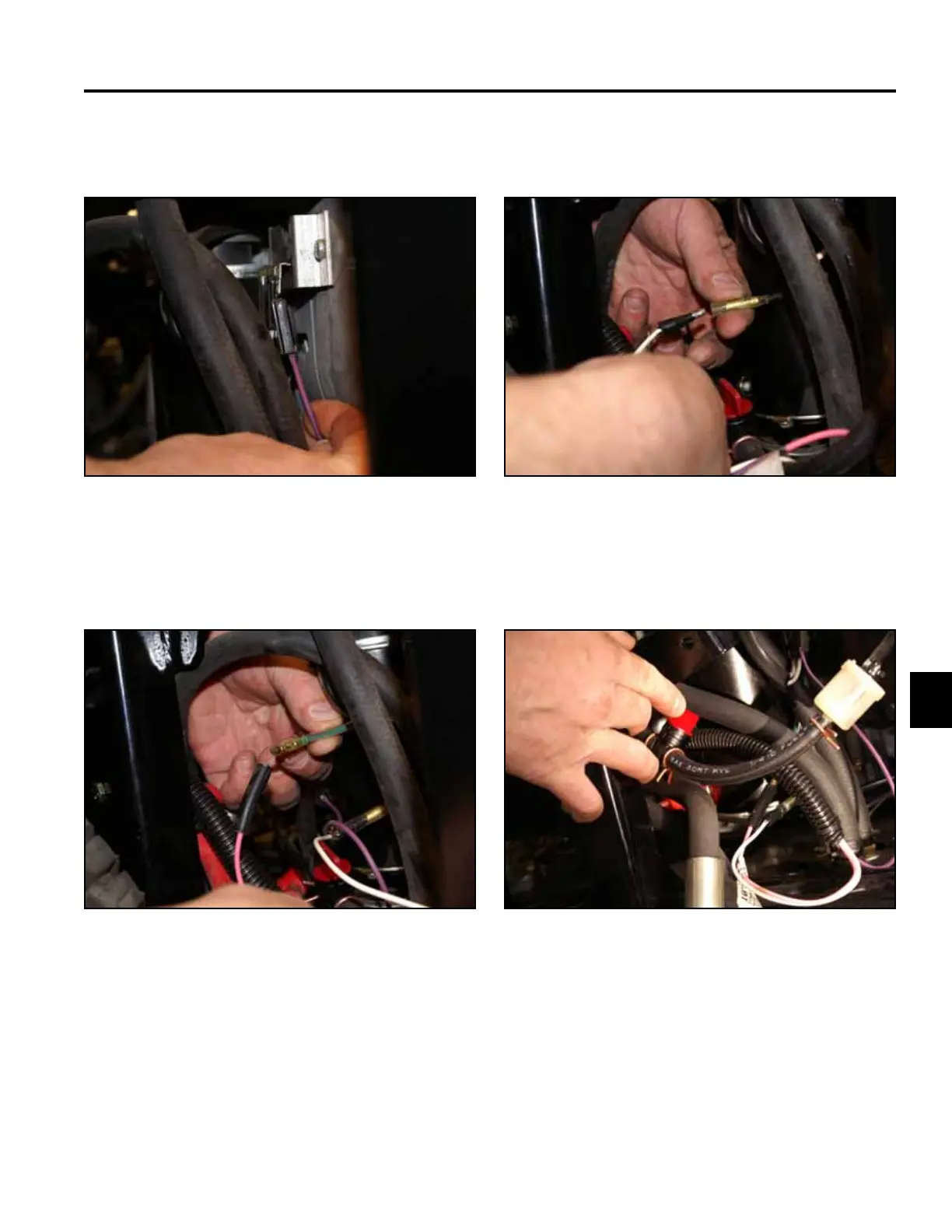

6. Removethe(violet)wirefromthevoltagerectier/
regulator (Fig. 214).
Fig 214 PICT-0010c
Fig 215 PICT-0011c
7. Disconnect the pink wire from the green wire
connected to the fuel solenoid (Fig. 215).
Fig 216 PICT-0012c
8. Disconnect the white wire from the black wire
connected to the engine magneto (Fig. 216).
Fig 217 PICT-0406
9. Turn the fuel shot-off valve to the “on” position (Fig.
217).
