5-4 Z Master Z400 Service Manual
5
ENGINE

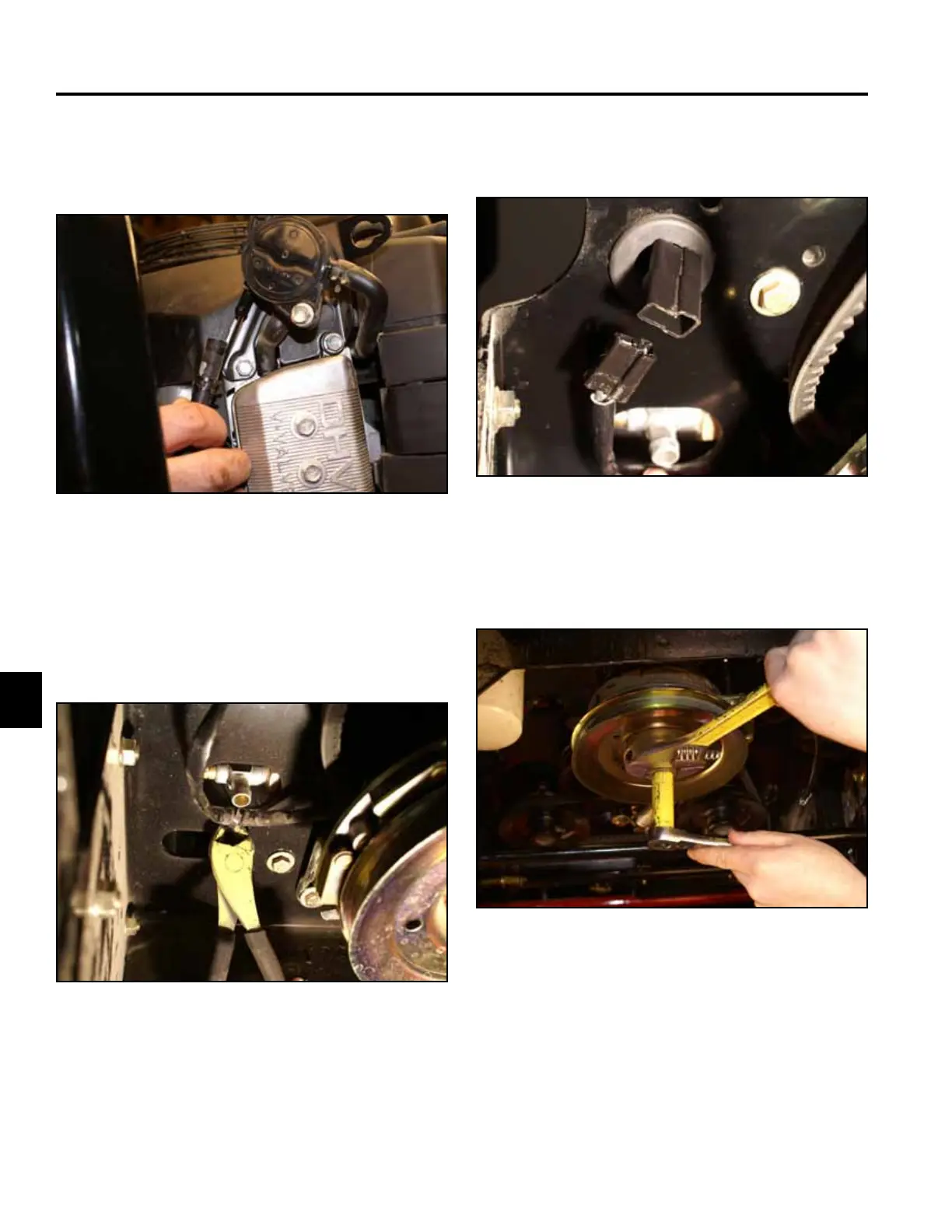

11. Remove the Mower Deck Drive Belt. Refer to Re-
placing the Mower Deck Drive Belt on page x-xx.
12. Remove the plastic tie holding the clutch harness to
frame (Fig. 219).
Fig 219 PICT-0099a
Fig 220 PICT-0100a
13. Unplug the clutch pigtail harness from the main
harness (Fig. 220).
14. Remove the center bolt and two spring washers
holding the electric PTO clutch (Fig. 221).
Fig 221 PICT-0014c
10. Remove the fuel line clamp holding the fuel line to
the fuel pump. Remove the fuel line from the fuel
pump (Fig. 218).
Fig 218 PICT-0013c
