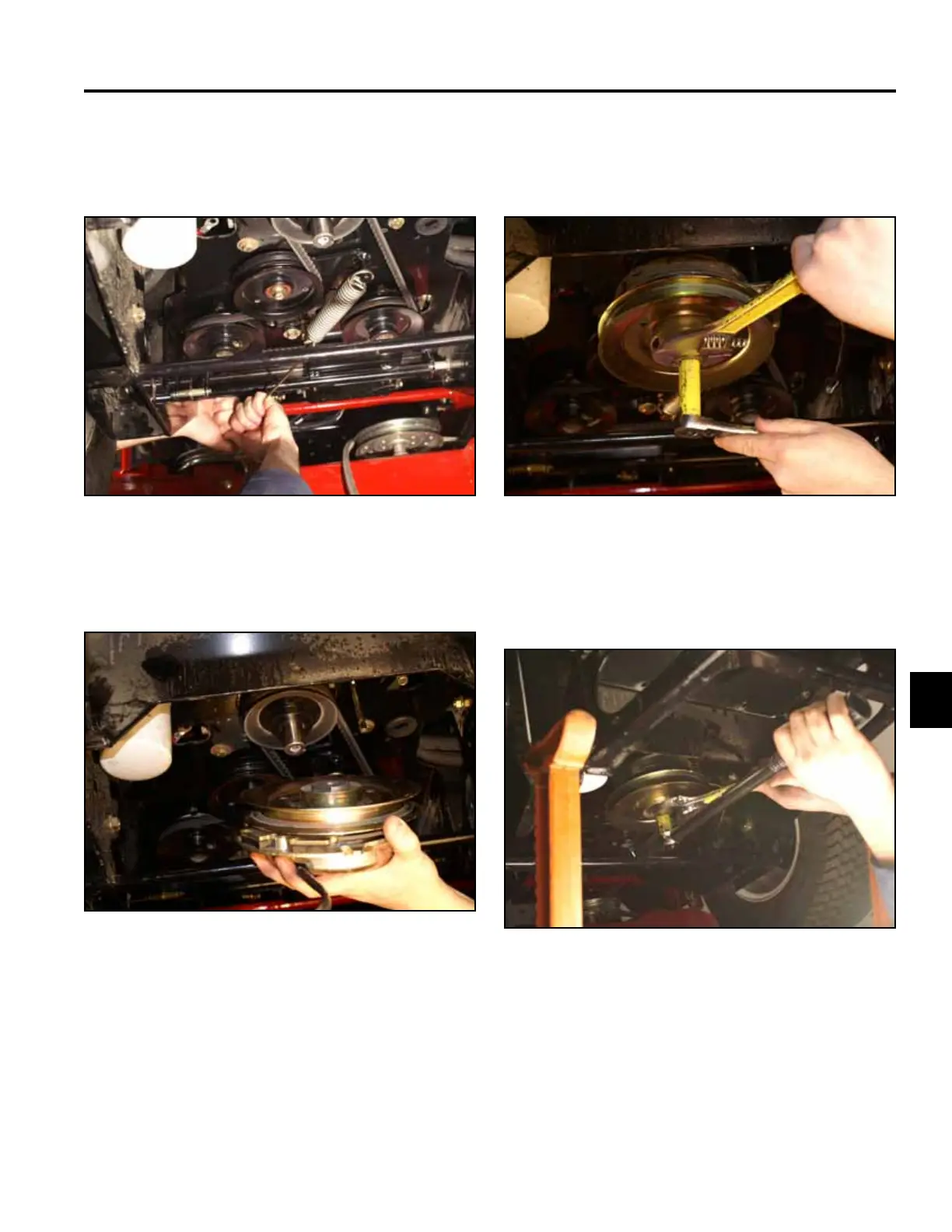

6. Install the cog belt onto the pump drive and idler
pulleys. With a spring puller, install the extension
spring onto the idler arm assembly (Fig. 276).
Fig 276 PICT-0016c
7. Install the electric PTO clutch (Fig. 277).
Fig 277 PICT-0015c
Fig 279 PICT-0027c
9. Torque the center bolt to 55 ft-lbs. (74.6 Nm) (Fig.
279).
Fig 278 PICT-0014c
8. Install the center bolt and two spring washers that
hold the electric PTO clutch to the engine crankshaft
(Fig. 278).
